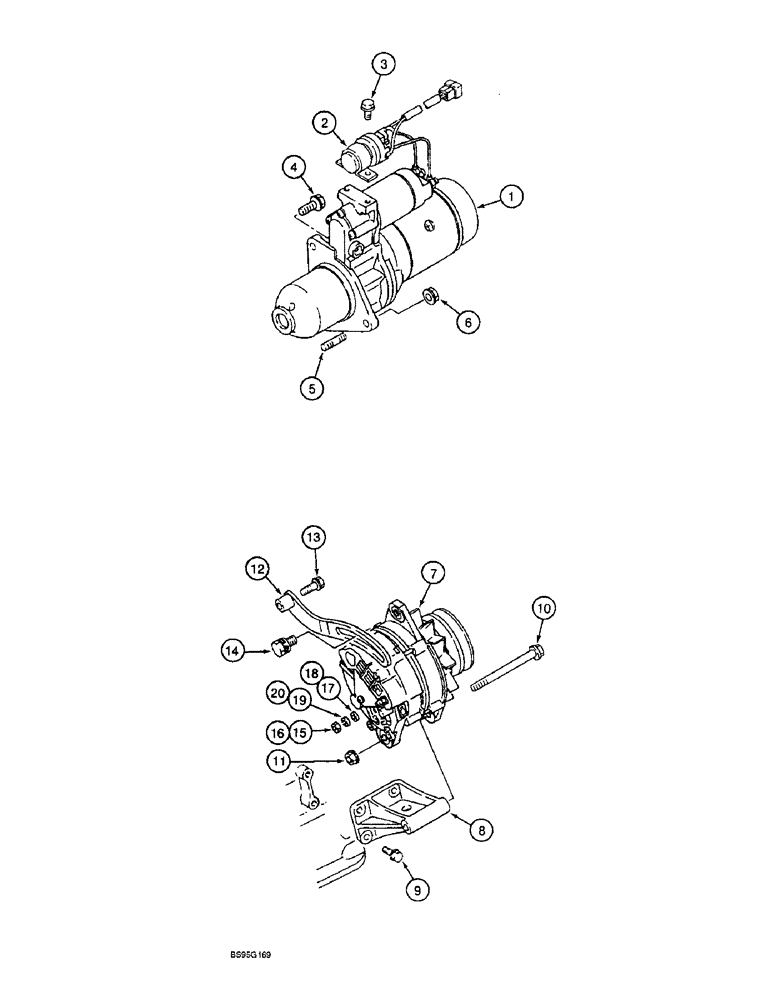

Запчасти Case 9060B (4-02) - STARTER AND ALTERNATOR MOUNTING, USED ON 6D22-TC ENGINE (04) - ELECTRICAL SYSTEMS

1

240330A1

STARTING MOTOR

STARTER ASSEMBLY - 24 volt, 6.0 KW, parts list Figure 4-4

1шт.

240330A1R

REMAN-STARTER

REMANUFACTURED STARTER MOTOR - for N.A. Only

1шт.

240330A1C

CORE-STARTER

Return Number, STARTER MOTOR - for N.A. Only

1шт.

2

135062A1

RELAY

RELAY - safety control, if used

1шт.

3

135089A1

BOLT,Hex Flg, M6 x 16mm

BOLT - hex flange, 6 x 16 mm

2шт.

4

240363A1

BOLT

BOLT - hex flange, 12 x 40 mm

2шт.

5

135081A1

STUD

STUD - special, 12 x 35 mm

1шт.

6

135085A1

FLANGE NUT

NUT - hex flange, 12 mm

1шт.

7

84124737

ALTERNATOR

ALTERNATOR ASSEMBLY - 24 volt, 40 amp, parts list Figure 4-6, Replaces 240364A1

1шт.

8

135114A1

BRACKET

BRACKET - alternator mounting

1шт.

9

132378A1

BOLT,Hex Flg, M10 x 20mm

BOLT - hex flange, 10 x 20 mm

4шт.

10

135145A1

BOLT,Hex Flg, M12 x 125mm

BOLT - hex flange, 12 x 125 mm

1шт.

11

135085A1

FLANGE NUT

NUT - hex flange, 12 mm

1шт.

12

135112A1

BRACKET

BRACE - alternator adjusting

1шт.

13

135146A1

BOLT,Hex Flg, M10 x 40mm

BOLT - hex flange, 10 x 40 mm

1шт.

14

135147A1

BOLT,M12 x 30mm, w/ Captive Wshr

BOLT - with captive washer, 12 x 30 mm

1шт.

15

135143A1

NUT

NUT - hex, 5 mm

1шт.

16

240377A1

NUT

NUT - hex, 8 mm

1шт.

17

135136A1

WASHER

WASHER - flat, 5 mm

1шт.

18

240304A1

WASHER

WASHER - flat, 8 mm

1шт.

19

135077A1

WASHER

WASHER - lock, 5 mm

1шт.

20

132502A1

WASHER

WASHER - lock, 8 mm

1шт.
