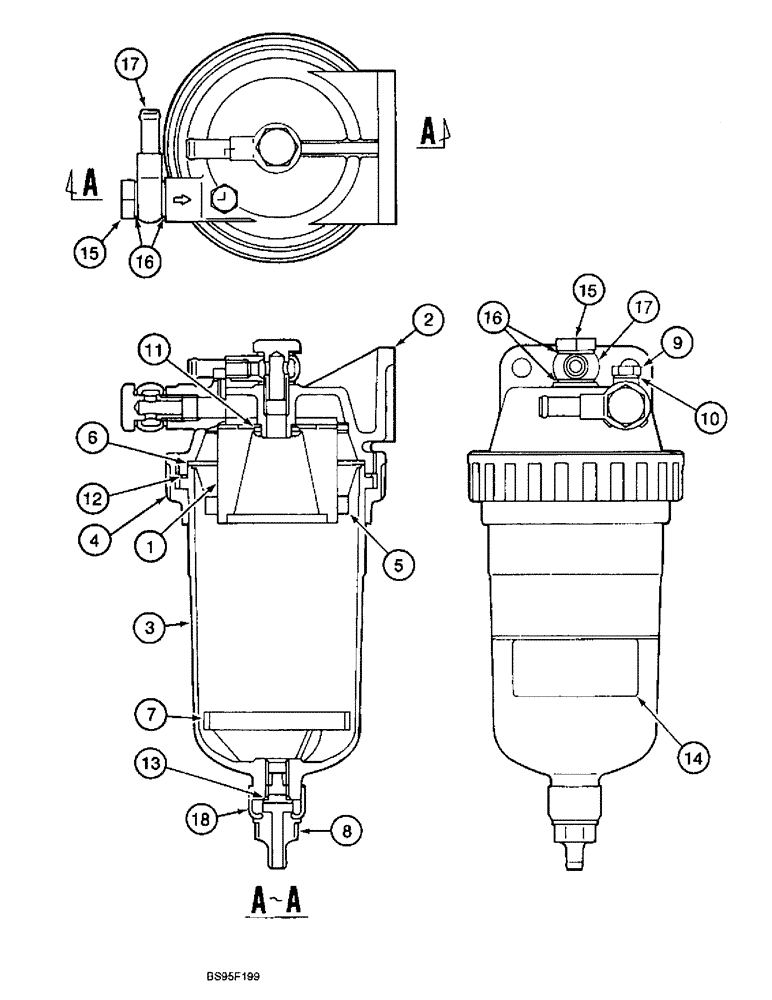

Запчасти Case 9060B (3-18) - WATER SEPARATOR (03) - FUEL SYSTEM

158651A1

SEPARATOR

- water, Includes: Ref. 1 - 18

1шт.

1

158668A1

FUEL FILTER

ELEMENT - water separator

1шт.

2

158669A1

HEAD

- water separator

1шт.

3

158670A1

BODY

- water separator

1шт.

4

158671A1

RING NUT

- separator body

1шт.

5

158672A1

CONE

PLATE - baffle

1шт.

6

158673A1

PACKING

- baffle plate

1шт.

7

158674A1

FLOAT

- water level

1шт.

8

155467A1

PLUG, DRAIN

PLUG - drain

1шт.

9

158675A1

PLUG

- air

1шт.

10

158676A1

GASKET

- seal, air plug

1шт.

11

158677A1

GASKET

- baffle plate

1шт.

12

154711A1

O-RING

- seal, ring nut

1шт.

13

154462A1

O-RING

- drain cap

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - Caution

1шт.

15

156185A1

BANJO BOLT

BOLT - special, banjo bolt

2шт.

16

158678A1

GASKET

- seal, banjo bolts

4шт.

17

158679A1

FITTING

JOINT - fuel line tube, banjo fittings

2шт.

18

155353A1

PLUG

CAP - drain

1шт.
