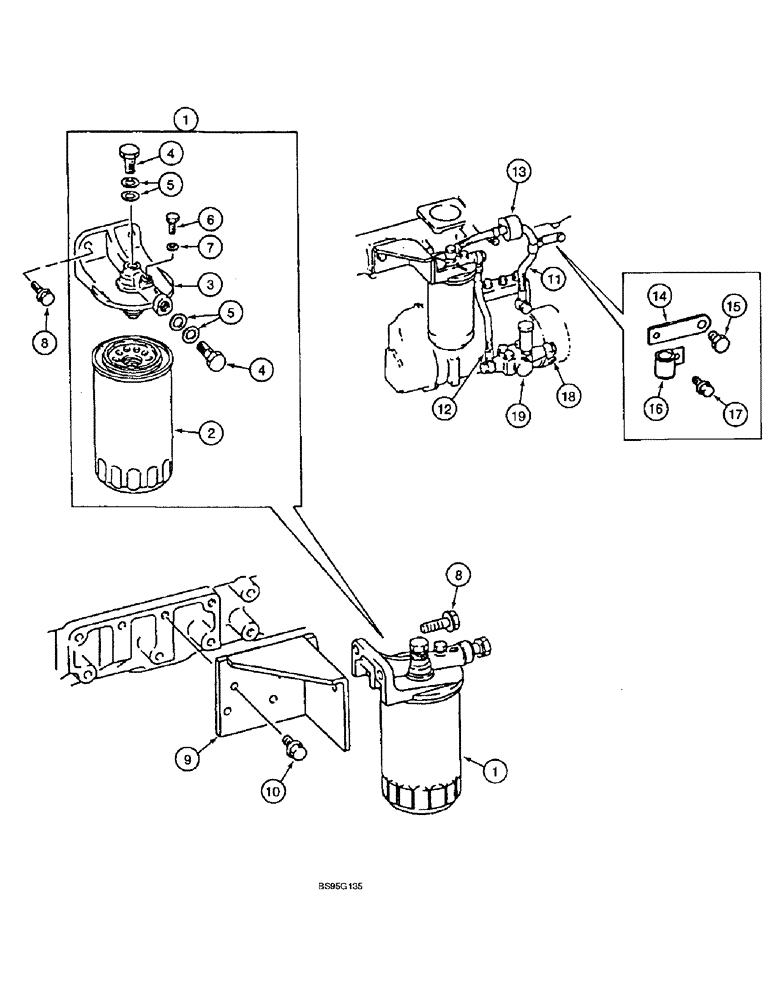

Запчасти Case 9060B (3-16) - FUEL FILTER AND HOSES, 6D22-TC ENGINE (03) - FUEL SYSTEM

1

133398A1

FILTER, FUEL

FILTER ASSEMBLY - fuel, Includes: Ref. 2 - 7

1шт.

2

MIT151193A1

FILTER, FUEL

KIT - fuel filter element, spin-on style filter element

1шт.

3

133399A1

HEAD ASSY.

BASE - fuel filter

1шт.

4

H412429

BANJO BOLT

BOLT - hex, banjo, 14 x 26 mm

2шт.

5

133378A1

GASKET

GASKET - special, bolt

4шт.

6

240107A1

PLUG

- hex, 8 mm

1шт.

7

133379A1

GASKET

- special, 8 mm

1шт.

8

133387A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

2шт.

8

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

2шт.

9

240108A1

BRACKET

- fuel filter

1шт.

10

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

2шт.

11

240112A1

FUEL HOSE

Filter to Injection Pump

1шт.

12

240114A1

FUEL HOSE

, Serial Range: Pump-Filter

1шт.

13

240110A1

PROTECTOR

- hose, fuel line

2шт.

14

240064A1

STAY

SUPPORT - clamp

1шт.

15

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm, fuel

1шт.

16

133383A1

CLIP

- hose, 16 mm

1шт.

17

132373A1

BOLT,Hex Flg, M6 x 12mm

- hex flange, 6 x 12 mm

1шт.

18

133407A1

FITTING

- banjo, includes screen

1шт.

Ref# 18 - Does NOT include screen. 2/21/98

1шт.

19

131412A1

FEED PUMP

PUMP - fuel feed, piece parts are not serviced

1шт.

REF #19 ORDER PART NUMBER 133424A1 TO GET THE FUEL FEED PUMP PER TECH.

1шт.
