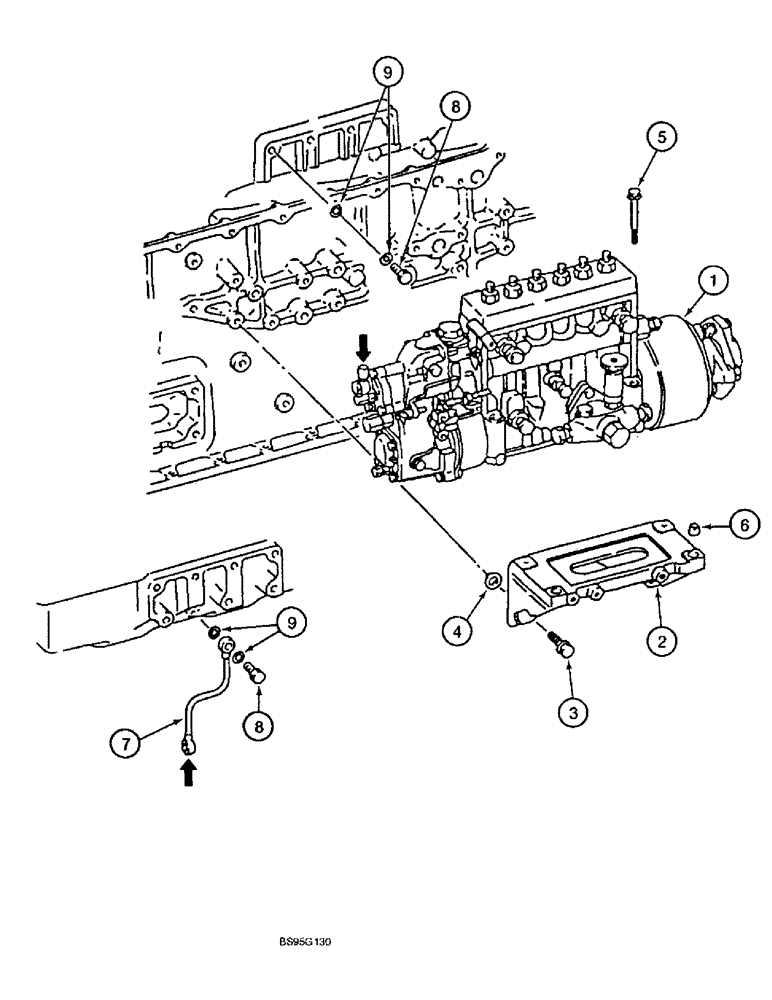

Запчасти Case 9060B (3-12) - FUEL INJECTION PUMP ASSEMBLY AND MOUNTING, 6D22-TC ENGINE (03) - FUEL SYSTEM

1

240117A1

PUMP

ASSEMBLY - fuel injection, includes injection pump, timer, fuel feed pump, governor, and coupling which are not serviced separately

1шт.

2

133425A1

BRACKET

- pump mounting

1шт.

3

133276A1

BOLT,Hex Flg, M10 x 35mm

- hex, flange, 10 x 35 mm

4шт.

4

133429A1

SHIM

- 0.1 mm thick

1шт.

5

132669A1

BOLT,Hex Flg, M10 x 85mm

- hex, flange, 10 x 85 mm

4шт.

6

133430A1

BUSHING

- injection pump, 10 x 9 mm

2шт.

7

240119A1

PIPE

- injection pump boost compensator

1шт.

8

133333A1

BOLT,Hex, M10 x 20mm

BOLT - hex, banjo, 10 x 20 mm

1шт.

9

132342A1

GASKET

- 10 mm, banjo bolt

2шт.

Fuel feed pump = 133424A1. 9/10/97

1шт.

Feed pump mounting gasket = 133453A1. 9/10/97

1шт.
