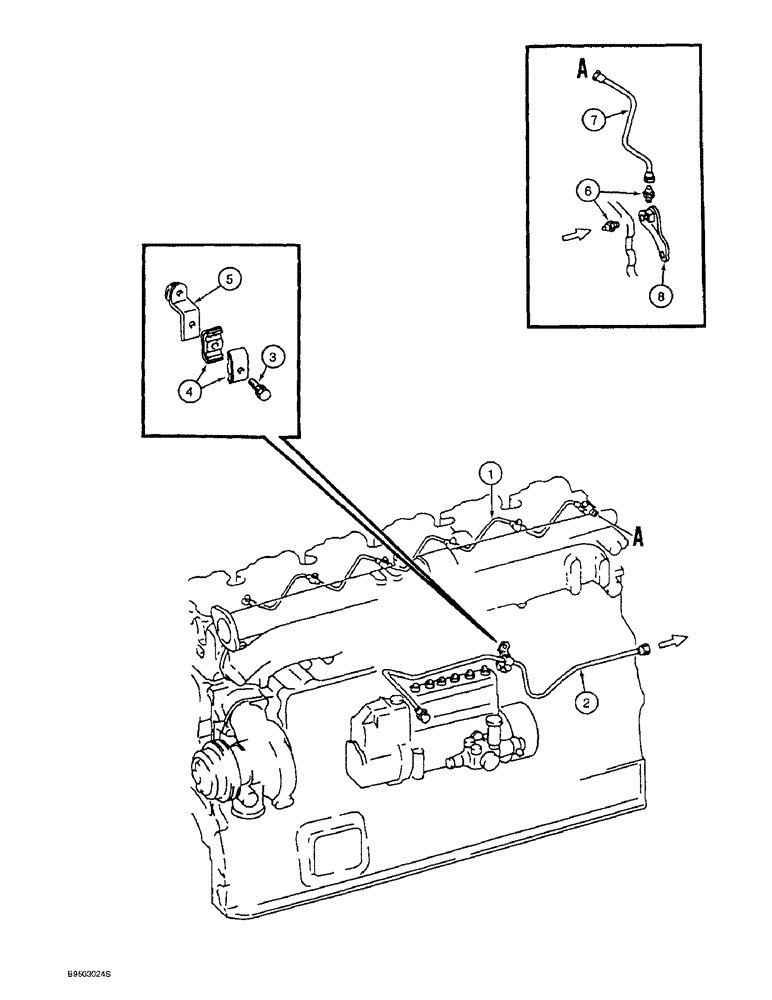

Запчасти Case 9060B (3-10) - FUEL RETURN LINES, 6D22-TC ENGINE (03) - FUEL SYSTEM

1

240284A1

FUEL TUBE

TUBE - fuel injection nozzle return

1шт.

2

240283A1

FUEL TUBE

TUBE - injection pump overflow

1шт.

3

133338A1

BOLT,Hex Flg, M6 x 35mm

- hex flange, 6 x 35 mm

2шт.

4

133329A1

CLAMP

- tube, 2 x 6 mm

2шт.

5

133324A1

STAY

SUPPORT - clamp

1шт.

6

133327A1

FITTING

ADAPTER - straight

2шт.

7

134734A1

FUEL TUBE

TUBE - fuel injection nozzle return

1шт.

8

240282A1

BRACKET

- fuel return line

1шт.
