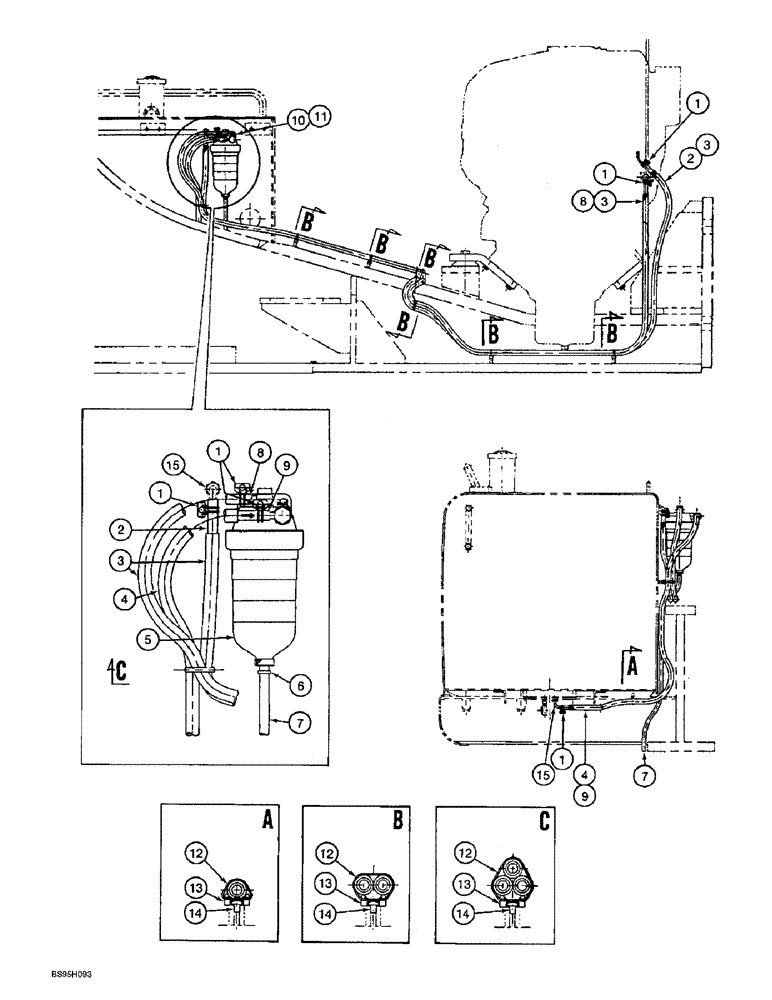

Запчасти Case 9060B (3-04) - FUEL LINES (03) - FUEL SYSTEM

1

170299A1

CLAMP

- adjustable, wire-type

6шт.

2

226891A1

HOSE,9.53 mm ID x 3200.00 mm

- 3200 mm (126 inch) long

2шт.

3

226894A1

CONDUIT

TUBE - corrugated, plastic, 98-7/16 inch (2500 mm) long

2шт.

4

226893A1

CONDUIT

TUBE - corrugated, plastic, 50-3/16 inch (1275 mm) long

1шт.

5

158651A1

SEPARATOR

- water, parts list Figure 3-18

1шт.

6

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

7

226892A1

HOSE,9.53 mm ID x 800.00 mm

- 800 mm (31-1/2 inch) long

1шт.

8

226891A1

HOSE,9.53 mm ID x 3200.00 mm

- 3200 mm (126 inch) long

1шт.

9

226890A1

HOSE,9.53 mm ID x 1525.00 mm

- 1524 mm (60 inch) long

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

11

892-11010

LOCK WASHER,M10

2шт.

12

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

13

150860A1

COLLAR

BRACKET - support

8шт.

14

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

8шт.

15

170011A1

FITTING

- tube

2шт.
