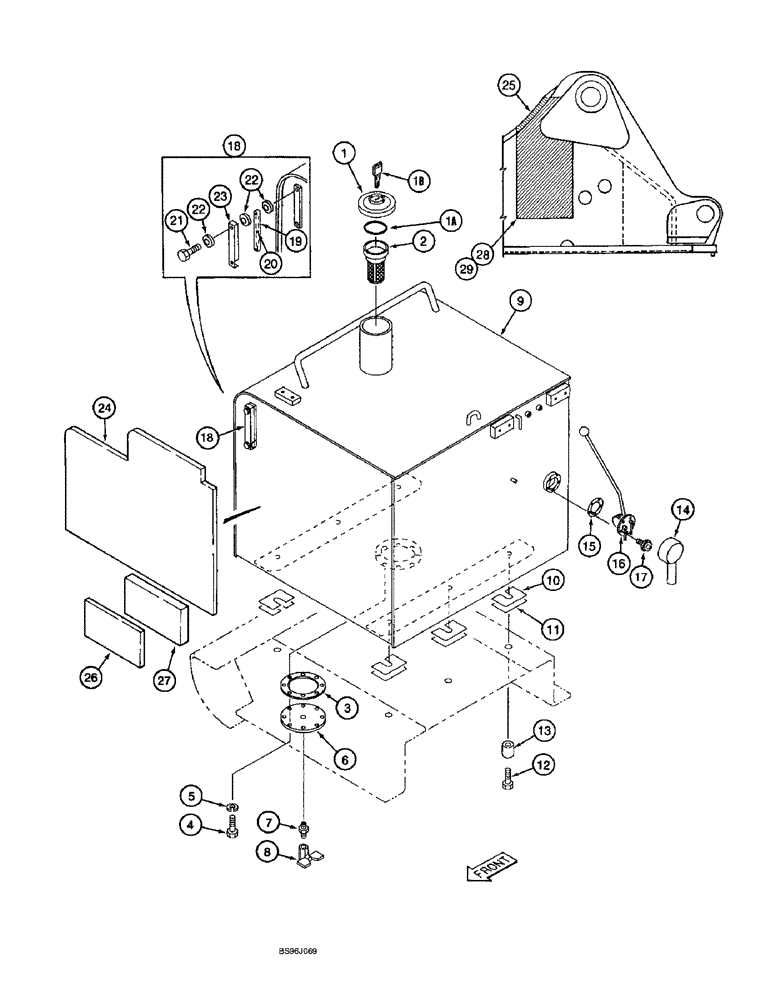

Запчасти Case 9060B (3-02) - FUEL TANK (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
150492A1
LOCKABLE FUEL CAP
CAP - fuel tank, Includes: Ref. 1A & 1B
1шт.
1a
163804A1
GASKET
- special, cap
1шт.
1b
150979A1
IGNITION KEY
KEY - ignition switch, or fuel tank cap
2шт.
REF. 1B (150979A1 KEY) COMES AS A SET OF 2 KEYS. IF YOU ORDER 1 PC YOU WILL GET A SET OF 2. NAPO TECH 7/1/99
1шт.
2
150146A1
FILTER
- fuel tank, in tank filler neck
1шт.
3
151322A1
GASKET,3mm Thk
- cover
1шт.
4
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 25 mm, class 10.9, Cover
8шт.
5
892-11010
LOCK WASHER,M10
8шт.
6
170067A1
COVER
- fuel tank bottom
1шт.
7
150847A1
HYD CONNECTOR
CONNECTOR - straight
1шт.
8
158923A1
DRAIN VALVE
VALVE - fuel tank drain
1шт.
9
170134A1
FUEL TANK
TANK - fuel, prior to P.I.N. EAC0600004 only
1шт.
9
170631A1
FUEL TANK
TANK - fuel, P.I.N. EAC060004 and after, replaces 170134A1 tank
1шт.
10
170002A1
FRICTION WASHER
PLATE - shim
1шт.
11
170003A1
FRICTION WASHER
PLATE - shim
1шт.
12
828-16070
BOLT,Hex, M16 x 2 x 70mm, Cl 10.9
8шт.
13
162301A1
SPACER
- special
8шт.
14
159698A1
COVER
- special, fuel tank
1шт.
15
152591A1
GASKET,2mm Thk
- fuel level sender
1шт.
16
163257A1
SENSOR
SENDER - fuel level, replaces 159610A1 sender
1шт.
17
151688A1
SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr
- pan head
5шт.
18
159815A1
GAUGE
ASSEMBLY - liquid level (fuel quantity), Includes: Ref. 19 - 23
1шт.
19
NSS
NOT SOLD SEPARAT
BODY - gauge
1шт.
20
NSS
NOT SOLD SEPARAT
FLOAT - indicator, red
1шт.
21
159492A1
BOLT
BOLT - special
2шт.
22
159493A1
SEALING WASHER
SEAL - washer
6шт.
23
NSS
NOT SOLD SEPARAT
COVER - indicator
1шт.
24
170857A1
NOISE PROTECTION
PAD - foam
1шт.
25
170858A1
NOISE PROTECTION
PAD - foam
1шт.
26
170859A1
NOISE PROTECTION
PAD - foam
1шт.
27
170860A1
NOISE PROTECTION
PAD - foam
1шт.
28
170855A1
NOISE PROTECTION
PAD - foam
1шт.
29
170856A1
NOISE PROTECTION
PAD - foam
1шт.
Filler neck for fuel tank = 150605a1. 8/26/97
1шт.
