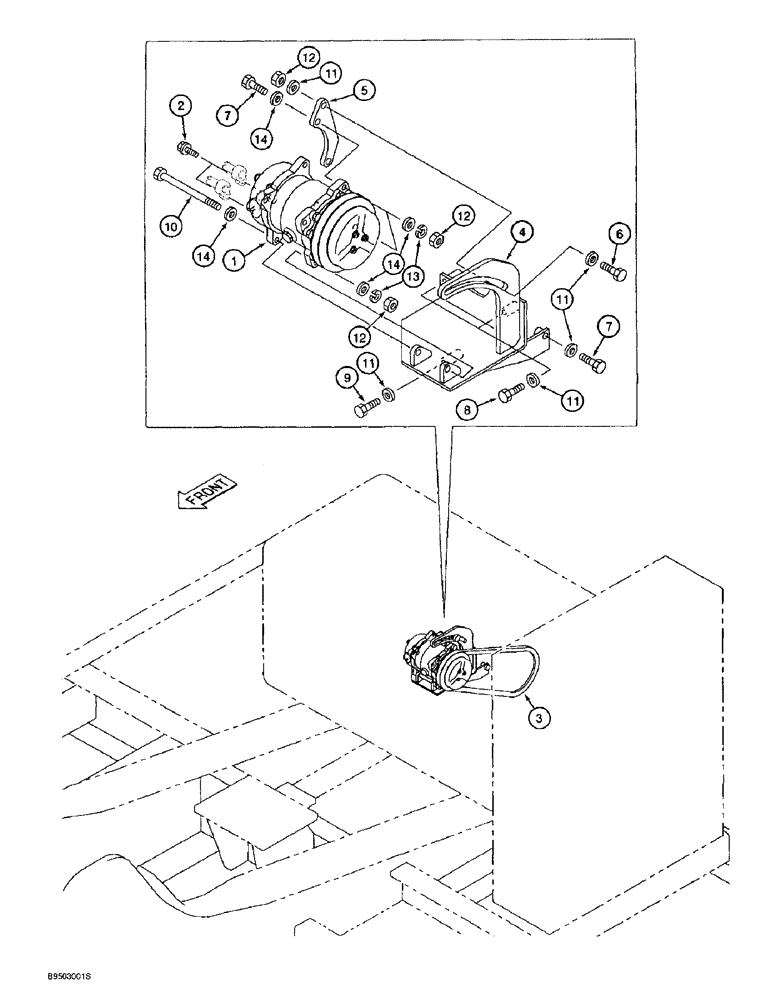

Запчасти Case 9060B (2-60) - AIR CONDITIONER COMPRESSOR MOUNTING, USED ON 6D22-TC ENGINE (02) - ENGINE

1

164729A1

COMPRESSOR

- air conditioner, replaces 159638A1

1шт.

2

162457A1

SPECIAL BOLT,Spcl

BOLT - special

2шт.

3

162458A1

V-BELT

1шт.

REF 3 162458A1 COVER FOR BELT IS 163807A1. 2/27/97 CNS

1шт.

4

162459A1

BRACKET

- compressor mounting

1шт.

5

162460A1

SUPPORT

STAY - compressor

1шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

1шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

4шт.

8

828-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

- hex, 10 - 1.5 x 55 mm, class 10.9

2шт.

9

828-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

- hex, 10-1.5 x 65 mm, class 10.9

1шт.

10

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

- hex, 10 - 1.5 x 130 mm, class 10.9

1шт.

11

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

5шт.

13

892-11010

LOCK WASHER,M10

4шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

8шт.
