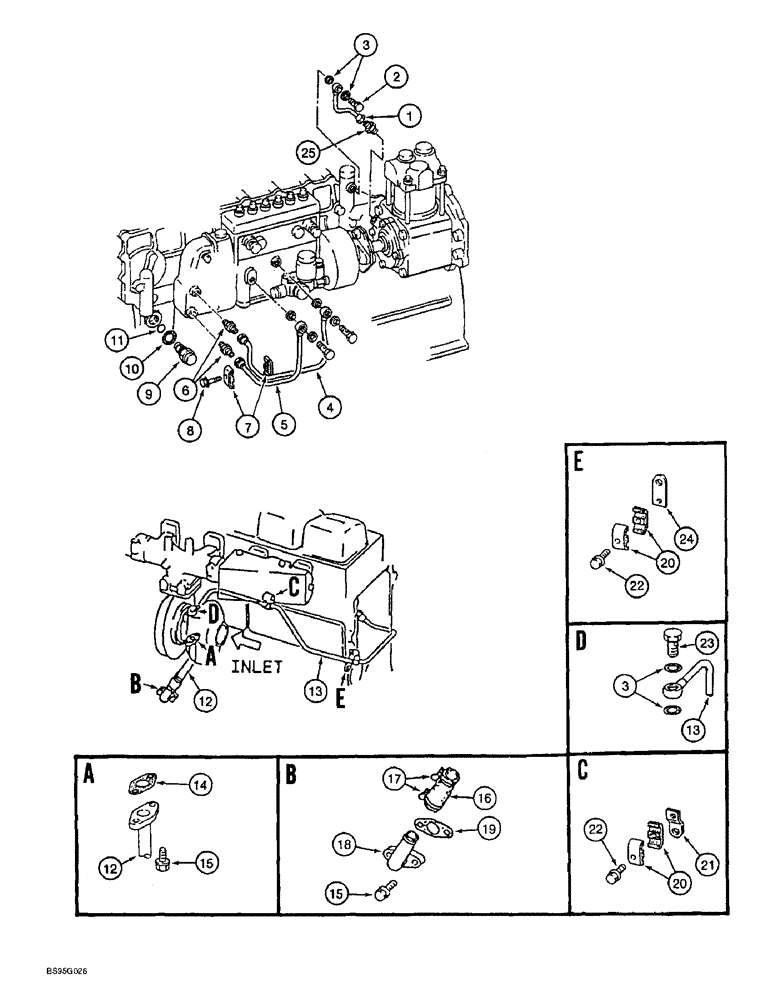

Запчасти Case 9060B (2-58) - OIL LINES FOR AIR COMPRESSOR AND INJECTION PUMP, 6D22-TC ENGINE (02) - ENGINE

1

133350A1

TUBE

- oil feed, 6 mm, air compressor

1шт.

2

133333A1

BOLT,Hex, M10 x 20mm

BOLT - hex, banjo, 10 x 20 mm

1шт.

3

132342A1

GASKET

- 10 mm, banjo bolt

4шт.

4

133323A1

TUBE

- engine oil line

1шт.

5

133322A1

TUBE

- engine oil line

1шт.

6

133327A1

FITTING

ADAPTER - straight, oil tube

2шт.

7

133329A1

CLAMP

- tube, 2 x 6 mm

2шт.

8

133337A1

BOLT,Hex Flg, M6 x 30mm

- hex flange, 6 x 30 mm

1шт.

9

240101A1

VALVE

- oil pressure regulating

1шт.

10

132638A1

GASKET

- 27 mm, valve

1шт.

11

133326A1

O-RING

- valve

1шт.

12

240103A1

RETURN PIPE

TUBE - oil return

1шт.

13

240102A1

SUCTION PIPE

TUBE - oil feed

1шт.

14

133176A1

GASKET

- tube

1шт.

15

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

4шт.

16

133346A1

HOSE

- 85 mm (3-11/32 inch) long, oil return

1шт.

17

133328A1

CLIP

CLAMP - adj, 31 mm

2шт.

18

240105A1

TUBE

- oil return

1шт.

19

133176A1

GASKET

- tube

1шт.

20

133331A1

CLAMP

- tube, 9 x 2 mm

4шт.

21

133325A1

STAY

SUPPORT - clamp

1шт.

22

133338A1

BOLT,Hex Flg, M6 x 35mm

- hex flange, 6 x 35 mm

2шт.

23

133335A1

BOLT,Hex, M10 x 26mm

- oil tube, 10 x 26 mm (banjo bolt)

1шт.

24

133324A1

STAY

SUPPORT - clamp

1шт.

25

132643A1

FITTING

ADAPTER - special

1шт.
