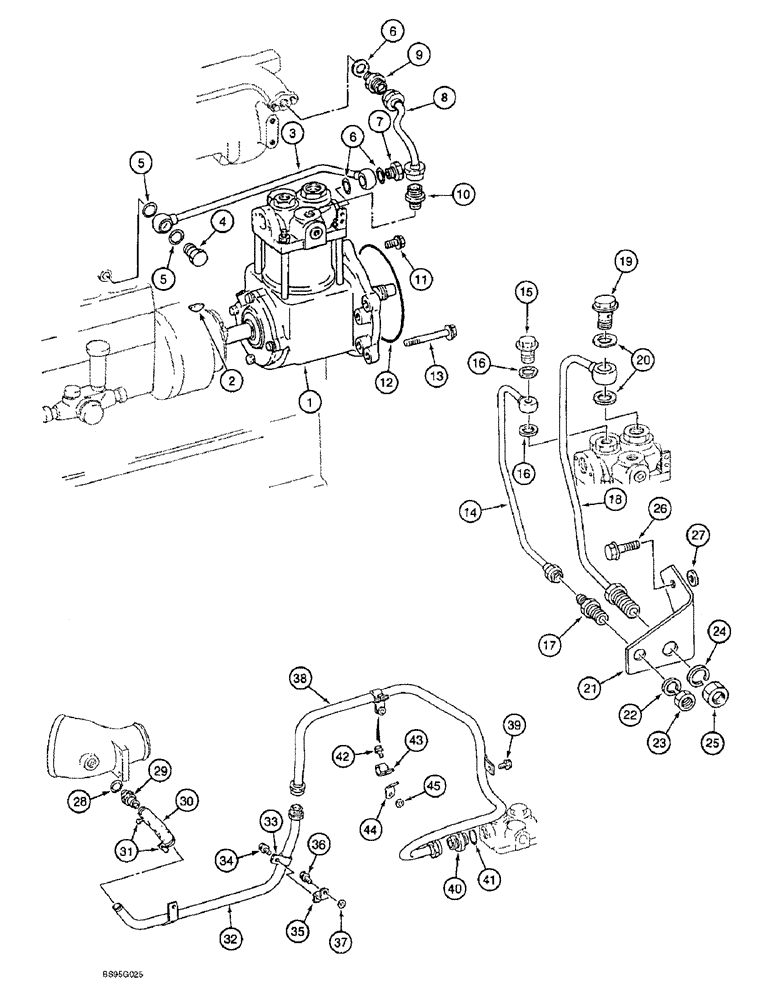

Запчасти Case 9060B (2-52) - AIR COMPRESSOR SYSTEM, 6D22-TC ENGINE (02) - ENGINE

1

132554A1

COMPRESSOR

ASSEMBLY - air, parts list Figures 2-54 and 2-56

1шт.

2

132635A1

KEY

- Woodruff, 5 x 22 mm

1шт.

3

132596A1

TUBE

- water inlet

1шт.

4

132660A1

BOLT,M16 x 29mm

- 16 x 29 mm (banjo bolt)

1шт.

5

132412A1

GASKET

- special, 16 mm, water tube at cylinder block

2шт.

6

132636A1

GASKET

- 14 mm, banjo bolt

3шт.

7

H412429

BANJO BOLT

BOLT - hex, banjo, 14 x 26 mm

1шт.

8

132589A1

UNLOADING TUBE

TUBE - water outlet

1шт.

9

132651A1

FITTING

ADAPTER - water outlet tube at engine

1шт.

10

132650A1

FITTING

ADAPTER - water outlet tube at compressor

1шт.

11

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

1шт.

12

132628A1

O-RING

- compressor mount

1шт.

13

132669A1

BOLT,Hex Flg, M10 x 85mm

- hex, flange, 10 x 85 mm

5шт.

14

134725A1

UNLOADING TUBE

TUBE - unloader

1шт.

15

132658A1

BOLT,M18 x 28mm

- 18 x 28 mm (banjo bolt)

1шт.

16

132639A1

GASKET

- 18 mm, unloader tube at compressor

2шт.

17

132649A1

FITTING

ADAPTER - bulkhead

1шт.

18

134722A1

TUBE

- outlet

1шт.

19

132659A1

BOLT,M24 x 36mm

- 24 x 36 mm (banjo bolt)

1шт.

20

132640A1

GASKET

- 24 mm, banjo bolt at compressor

2шт.

21

132557A1

BRACKET

- tube support

1шт.

22

132622A1

WASHER

- lock, 14 mm

1шт.

23

132634A1

NUT

- hex jam, 14 mm

1шт.

24

132621A1

WASHER

- lock, 20 mm

1шт.

25

132633A1

NUT

- hex jam, 20 mm

1шт.

26

132674A1

BOLT,Hex Flg, M12 x 35mm

- hex flange, 12 x 35 mm

2шт.

27

132624A1

WASHER

- flat, 12 mm

1шт.

28

132638A1

GASKET

- 27 mm, adapter at engine air inlet

1шт.

29

240084A1

FITTING

ADAPTER - at suction hose

1шт.

30

240077A1

AIR HOSE

HOSE - suction, at engine air inlet

1шт.

31

132292A1

CLAMP

- 30 mm diameter

2шт.

32

240080A1

PIPE

TUBE - suction

1шт.

33

132654A1

CLIP

CLAMP - P-style, 20 mm

1шт.

34

132373A1

BOLT,Hex Flg, M6 x 12mm

- hex flange, 6 x 12 mm

1шт.

35

240083A1

STAY

SUPPORT - clamp

1шт.

36

132673A1

BOLT,Hex Flg, M8 x 35mm

BOLT - hex, flange, 8 x 35 mm

2шт.

36

133169A1

BOLT,M10 x 30mm, W/ Captive Wshr

- with captive washer, 10 x 30 mm

1шт.

37

240081A1

WASHER

- flat, 10.5 x 4.5 mm

1шт.

38

240078A1

TUBE

- suction

1шт.

39

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm

1шт.

39

133276A1

BOLT,Hex Flg, M10 x 35mm

- hex, flange, 10 x 35 mm

1шт.

40

132644A1

FITTING

ADAPTER - suction tube at compressor

1шт.

41

132638A1

GASKET

- 27 mm, adapter at compressor

1шт.

42

132373A1

BOLT,Hex Flg, M6 x 12mm

- hex flange, 6 x 12 mm

1шт.

43

132654A1

CLIP

CLAMP - P-style, 20 mm

1шт.

44

240082A1

STAY

SUPPORT - clamp

1шт.

45

132623A1

WASHER

- flat, 10.5 mm

2шт.

45

240081A1

WASHER

- flat, 10.5 x 4.5 mm

1шт.
