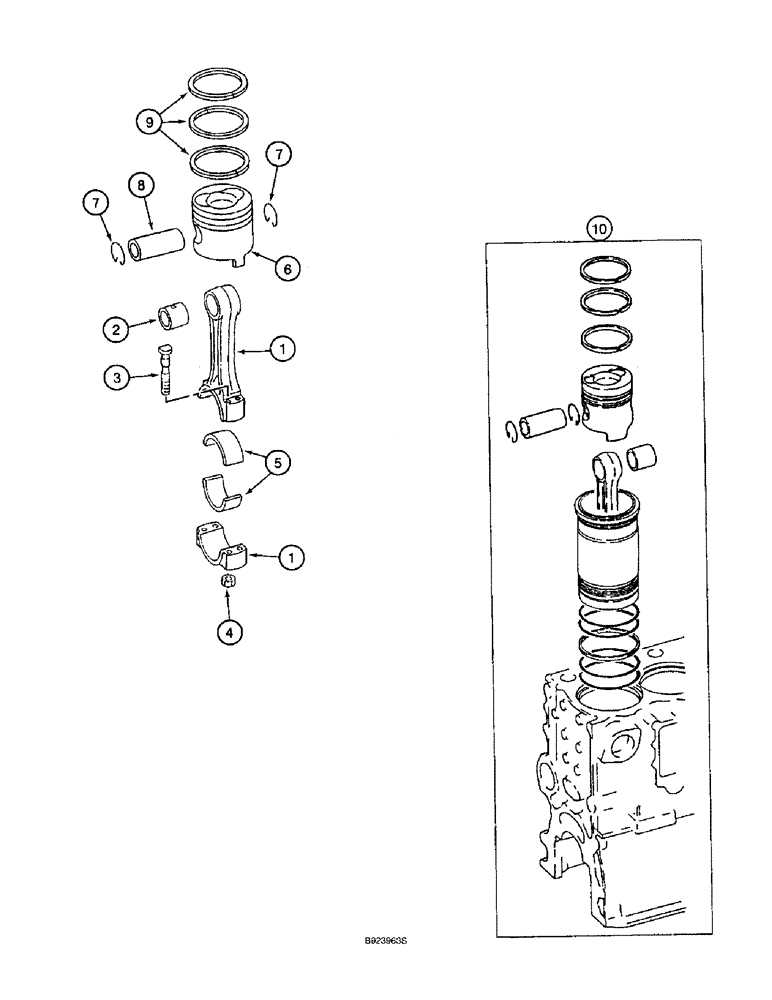

Запчасти Case 9060B (2-50) - PISTONS AND CONNECTING RODS, 6D22-TC ENGINE (02) - ENGINE

240069A1

PITMAN ASSY.

ROD ASSEMBLY - connecting, Includes: Ref. 1 - 4

6шт.

1

NSS

NOT SOLD SEPARAT

ROD - connecting, both halves

1шт.

2

132465A1

BUSHING

- rod

1шт.

3

132463A1

BOLT,M13 x 107mm

- connecting rod, 13 x 107 mm

4шт.

4

132467A1

NUT

- hex flange, 13 mm, flange

4шт.

5

132480A1

BEARING SET

KIT - bearing, upper and lower, standard

1шт.

5

132481A1

BEARING SET

KIT - bearing, upper and lower, 0.25 mm undersize

1шт.

5

132482A1

BEARING SET

KIT - bearing, upper and lower, 0.50 mm undersize

1шт.

5

132483A1

BEARING SET

KIT - bearing, upper and lower, 0.75 mm undersize

1шт.

5

132484A1

BEARING SET

KIT - bearing, upper and lower, 1.00 mm undersize

1шт.

6

133380A1

PISTON

- cylinder, 0.50 mm oversize

6шт.

6

133385A1

PISTON

- cylinder, 0.75 mm oversize

6шт.

6

133403A1

PISTON

- cylinder, 1.00 mm oversize

6шт.

6

133404A1

PISTON

- cylinder, A size

6шт.

6

133405A1

PISTON

- cylinder, B size

6шт.

6

133409A1

PISTON

- cylinder, C size

6шт.

7

132493A1

RING, SNAP

RING - retaining, 50 mm

12шт.

8

132468A1

PISTON PIN

50 x 106 mm

6шт.

9

133431A1

PISTON RING SET

RING - set, piston, standard size

1шт.

9

133432A1

PISTON RING SET

RING - set, piston, 0.50 mm oversize

1шт.

9

134405A1

PISTON RING SET

RING - set, piston, 0.75 mm oversize

1шт.

9

134621A1

PISTON RING SET

RING - set, piston, 1.00 mm oversize

1шт.

10

132372A1

KIT

- piston and liner, piston, liner and connecting rod service

3шт.
