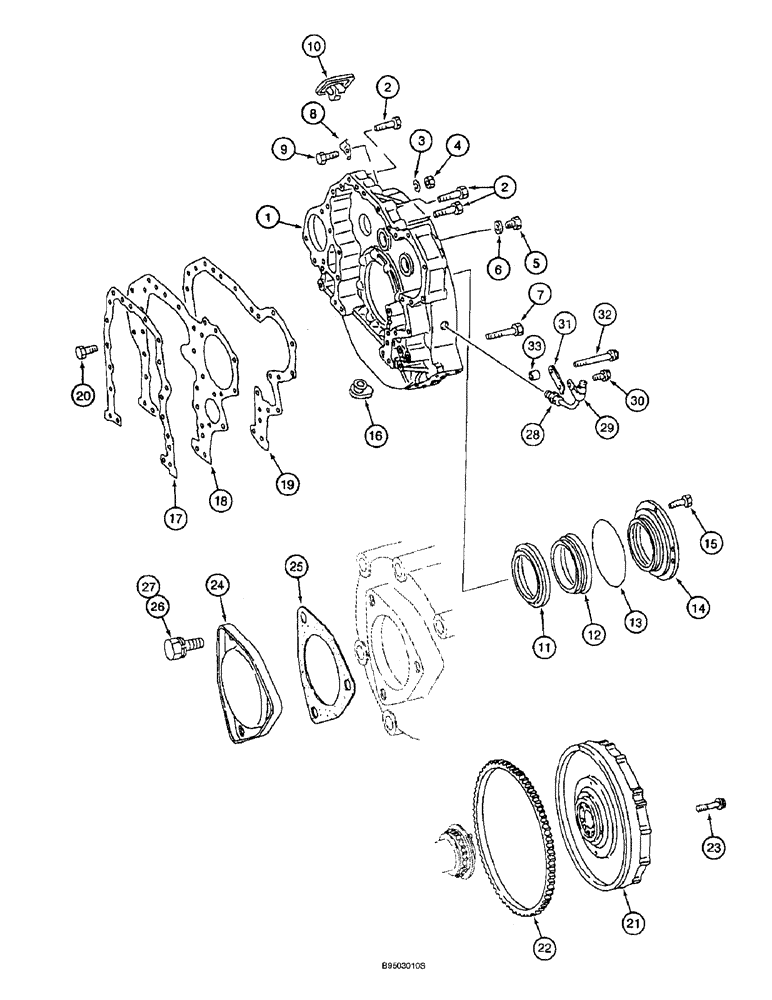

Запчасти Case 9060B (2-48) - FLYWHEEL AND HOUSING, 6D22-TC ENGINE (02) - ENGINE

1

240062A1

HOUSING

- flywheel

1шт.

2

132452A1

BOLT,Hex Flg, M12 x 60mm

- hex flange, 12 x 60 mm

3шт.

3

132427A1

WASHER

- lock, 6 mm

1шт.

4

132434A1

WHEEL NUT

- 6 mm

1шт.

5

132430A1

PLUG

- 16 mm

1шт.

6

132412A1

GASKET

- special, 16 mm

1шт.

7

132436A1

BOLT,Hex Flg, M12 x 90mm

- hex flange, 12 x 90 mm

8шт.

8

132414A1

INDICATOR

POINTER - timing

1шт.

9

132438A1

BOLT,Hex, M6 x 25mm

- hex, 6 x 25 mm

1шт.

10

132403A1

COVER

- timing pointer

1шт.

11

132456A1

RING

SLINGER - oil

1шт.

12

132459A1

SEAL

SEAL - oil

1шт.

13

132432A1

O-RING

- crankshaft

1шт.

14

132426A1

RETAINER

- oil seal

1шт.

15

132442A1

BOLT,M8 x 16mm, W/ Wshr

BOLT - with captive washer, 8 x 16 mm

4шт.

16

132428A1

PLUG

- rubber, 29 mm

1шт.

17

132407A1

GASKET

- rear plate, cylinder block side of rear plate

1шт.

18

132413A1

PLATE

- flywheel housing

1шт.

19

132409A1

GASKET

- rear plate, flywheel housing side of rear plate

1шт.

20

132453A1

BOLT,Hex Flg, M12 x 20mm

- hex flange, 12 x 20 mm

9шт.

132454A1

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

FLYWHEEL - engine

1шт.

22

132458A1

RING, FLYWHEEL

GEAR - ring, 143 teeth, flywheel

1шт.

23

132460A1

BOLT,Hex Flg, M16 x 50.50mm

BOLT - hex flange, 16 x 50.5 mm

8шт.

24

132405A1

COVER

- tachometer drive

1шт.

25

132411A1

GASKET

- tach drive cover

1шт.

26

132461A1

BOLT,M10 x 20mm, W/ Wshr

- with captive washer, 10 x 20 mm, housing

3шт.

27

132462A1

BOLT,M10 x 35mm, W/ Wshr

BOLT - with captive washer, 10 x 35 mm

1шт.

28

240067A1

SENSOR

- speed, engine

1шт.

29

240063A1

CLIP

CLAMP - speed sensor

1шт.

30

132373A1

BOLT,Hex Flg, M6 x 12mm

- hex flange, 6 x 12 mm

1шт.

31

240064A1

STAY

SUPPORT - clamp

1шт.

32

240066A1

BOLT

- hex flange, 10 x 100 mm

1шт.

33

240065A1

SPACER

- 10 mm

1шт.
