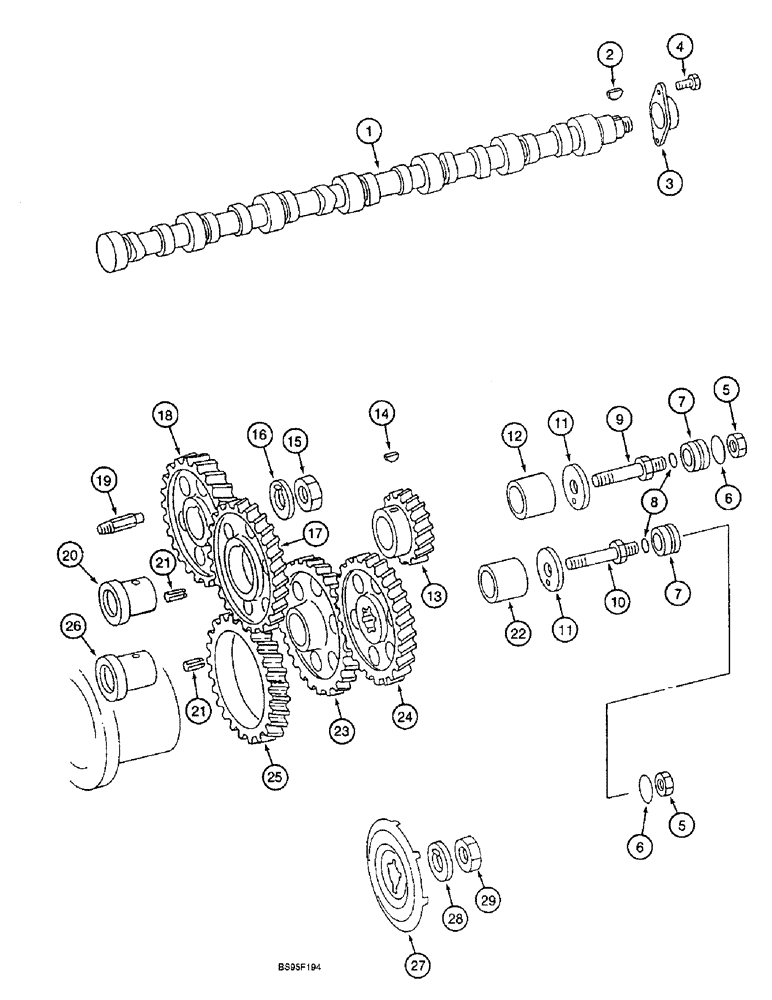

Запчасти Case 9060B (2-40) - CAMSHAFT AND TIMING GEAR TRAIN, 6D22-TC ENGINE, CAMSHAFT, TIMING GEAR TRAIN (02) - ENGINE

1

132496A1

CAMSHAFT

- engine

1шт.

2

132499A1

KEY

- Woodruff, 5 x 19 mm

1шт.

3

132497A1

PLATE

- thrust, camshaft

1шт.

4

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

2шт.

5

240074A1

NUT

- hex, 16 mm, timing gear train

2шт.

6

132545A1

O-RING

- collar, outside, timing gear train

2шт.

7

132541A1

SPACER

COLLAR - timing gear train

2шт.

8

132546A1

O-RING

- collar, inside, timing gear train

2шт.

9

240076A1

BOLT

- special, 16 x 78 mm, timing gear train

1шт.

10

240075A1

BOLT

- special, 16 x 88 mm, timing gear train

1шт.

11

132537A1

PLATE

- thrust, cam idler gear, timing train

2шт.

240070A1

GEAR-SET

GEAR ASSEMBLY - cam idler, timing gear train, Includes: Ref. 12 - 17

1шт.

12

132529A1

BUSHING

- 43 x 44 mm, idler gear, timing train

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - 33 teeth, timing gear train

1шт.

14

132499A1

KEY

- Woodruff, 5 x 19 mm, timing gear train

1шт.

15

132550A1

JAM NUT

- hex, jam, 27 mm, timing gear train

1шт.

16

132542A1

WASHER

- lock, 27 mm, timing gear train

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - 66 teeth, idler, timing gear train

1шт.

18

132536A1

GEAR

- camshaft drive, 63 teeth, timing gear train

1шт.

19

132538A1

PLUG

- timing gear train

1шт.

20

240072A1

SHAFT

- cam idler gear, timing train

1шт.

21

132322A1

SPRING

PIN - spring, 5 x 10 mm, timing gear train

2шт.

240071A1

GEAR

ASSEMBLY - injection pump idler, timing train, Includes: Ref. 22 & 23

1шт.

22

132530A1

BUSHING

- 51 x 50 mm, timing gear train

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - 68 teeth, pump idler, timing train

1шт.

24

132532A1

GEAR

- drive, 63 teeth, injection pump, timing train

1шт.

25

132528A1

GEAR

- crankshaft, 63 teeth, timing train

1шт.

26

240073A1

SHAFT

- injection pump idler gear, timing train

1шт.

27

132533A1

PLATE

- injection pump gear, timing train

1шт.

28

132543A1

WASHER

- lock, 24 mm, timing gear train

1шт.

29

132549A1

JAM NUT

- hex, jam, 24 mm, timing gear train

1шт.
