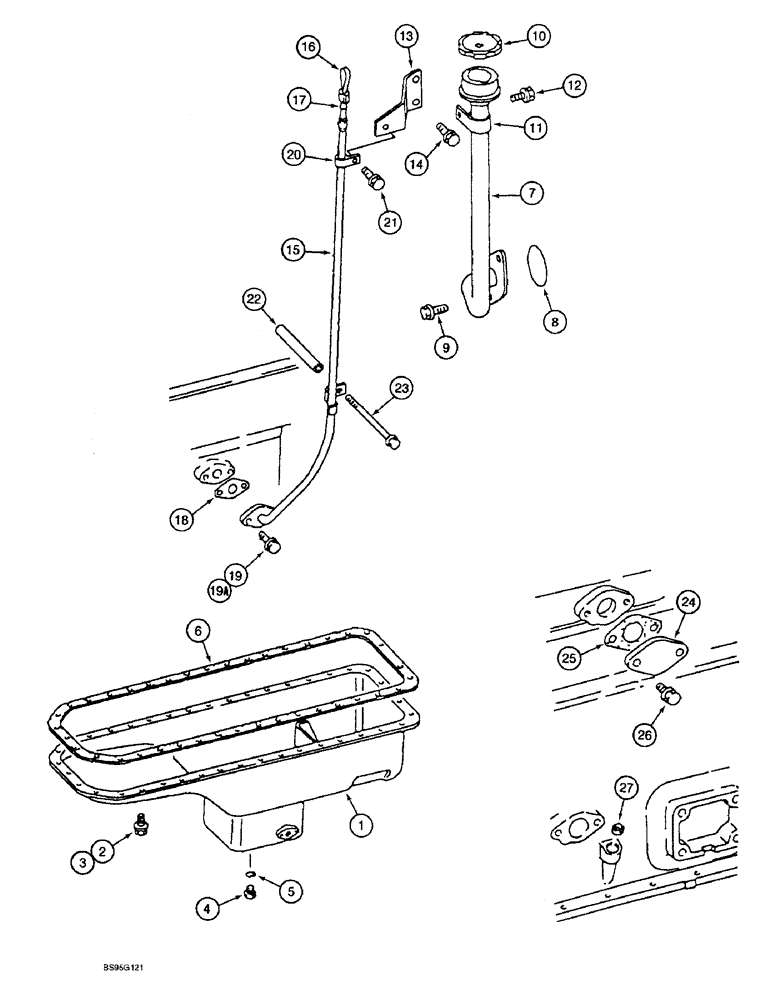

Запчасти Case 9060B (2-30) - OIL PAN, FILLER AND DIPSTICK, 6D22-TC ENGINE (02) - ENGINE

1

240052A1

PAN, ENGINE OIL

PAN - oil, engine

1шт.

2

132361A1

BOLT,Hex Flg, M10 x 18mm

- hex flange, 10 x 18 mm

37шт.

3

132364A1

BOLT,Hex, M10 x 25mm, W/ Wshr

- hex, with captive washer, 10 x 25 mm

2шт.

4

CASH410605

PLUG,18mm OD x 1.5 Thd Pitch

- hex, 18 mm

1шт.

5

H410597

GASKET

- seal

1шт.

6

132356A1

OIL PAN GASKET SET

- oil pan

1шт.

7

240055A1

TUBE

- oil filler

1шт.

8

135150A1

O-RING

- oil filler tube at bottom

1шт.

9

132385A1

BOLT,Hex Flg, M12 x 25mm

- hex flange, 12 x 25 mm

2шт.

10

399725A1

PLUG

CAP - oil filler

1шт.

11

133288A1

CLAMP

- special, 30 mm dia.

1шт.

12

132373A1

BOLT,Hex Flg, M6 x 12mm

- hex flange, 6 x 12 mm, filler tube clamp

1шт.

13

240053A1

BRACKET

- oil filler pipe

1шт.

14

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

2шт.

15

240058A1

GUIDE

TUBE - dipstick

1шт.

16

240057A1

GAUGE

DIPSTICK - engine oil level

1шт.

17

132399A1

O-RING

- dipstick tube at top

1шт.

18

132394A1

GASKET

- special

1шт.

19

132376A1

BOLT,Hex, M10 x 20mm, W/ Wshr

- hex, with captive washer, 10 x 20 mm

2шт.

19a

240060A1

BOLT

- hex, with captive washer, 10 x 35 mm

1шт.

20

132398A1

CLAMP

- special, 12.2 mm dia

1шт.

21

132374A1

BOLT,Hex Flg, M6 x 20mm

BOLT - hex flange, 6 x 20 mm, dipstick tube clamp and bracket

1шт.

22

240056A1

SPACER

BRACKET - special, dipstick tube

1шт.

23

240059A1

BOLT

- hex flange, 10 x 67 mm

1шт.

24

132671A1

COVER

- cylinder block

1шт.

25

132396A1

GASKET

- cover

1шт.

26

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

2шт.

27

132367A1

CAP

PLUG - special, 15 mm

1шт.

AFTER THE S/N SPLIT THE ENGINES ARE CUMMINS AND WE DO NOT SERVICE THE ENGINE PARTS. IF LOOKING FOR A DIFFERENT STYLE FILLER AND CAP THAT IS ON THE VALVE COVER....THEY MUST CONTACT CUMMINS. THE BEFORE S/N IS MITSUBISHI ENGINE. SB-10/99

1шт.
