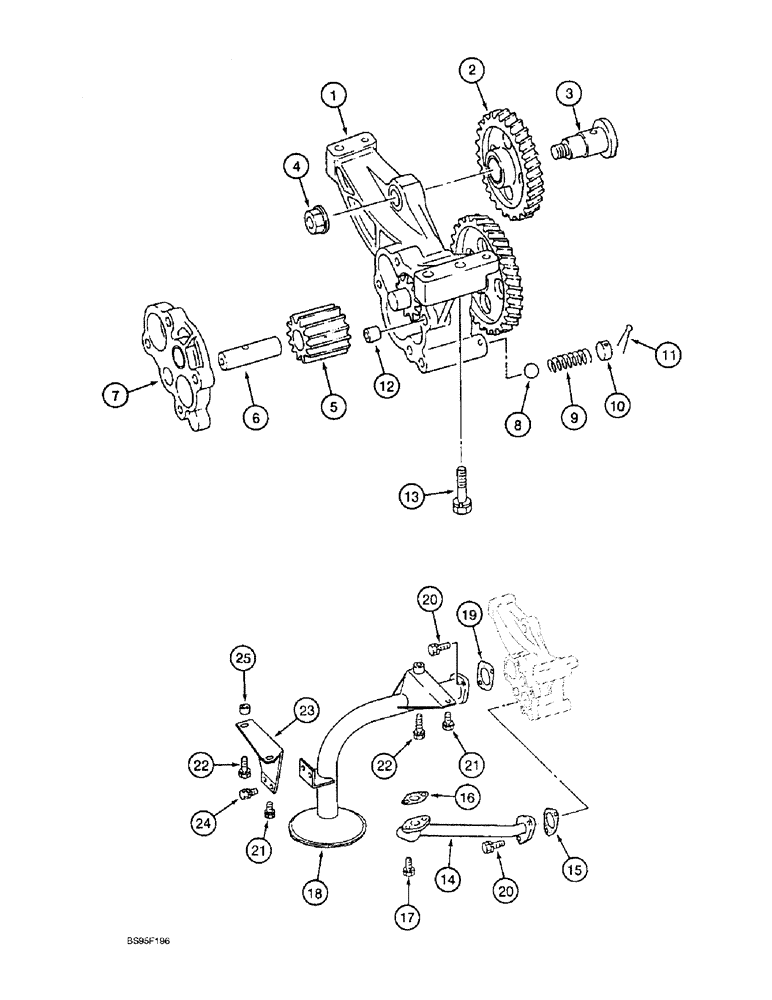

Запчасти Case 9060B (2-28) - OIL PUMP AND STRAINER, 6D22-TC ENGINE (02) - ENGINE

133226A1

PUMP

ASSEMBLY - engine oil, Includes: Ref. 1 - 25

1шт.

1

133227A1

GUARD

KIT - pump, case and gear

1шт.

2

133230A1

GEAR, IDLER

GEAR - idler

1шт.

3

133234A1

SHAFT

- idler gear

1шт.

4

133238A1

NUT

- hex flange, 12 mm

1шт.

5

133229A1

GEAR

- driven

1шт.

6

133231A1

SHAFT

- driven gear

1шт.

7

133228A1

COVER ASSY

COVER - oil pump

1шт.

8

133241A1

BALL

- steel, 5/8 inch diameter

1шт.

9

133235A1

SPRING

- compression type

1шт.

10

133233A1

SEAT, VALVE

SEAT - relief valve

1шт.

11

133237A1

DOWEL

PIN - split, 4 x 35 mm

1шт.

12

133239A1

BUSHING

- special

1шт.

13

133240A1

BOLT,Hex, M10 x 45mm, W/ Captive Wshr

- hex, with captive washer, 10 x 45 mm

3шт.

14

133236A1

TUBE

- outlet

1шт.

15

133246A1

GASKET

- special

1шт.

16

133245A1

GASKET

- special

1шт.

17

133250A1

BOLT,Hex, M12 x 25mm, W/ Captive Wshr

- hex, with captive washer, 12 x 25 mm

2шт.

18

133242A1

STRAINER ASSY.

STRAINER - oil pump

1шт.

19

133244A1

GASKET

- special

1шт.

20

133240A1

BOLT,Hex, M10 x 45mm, W/ Captive Wshr

- hex, with captive washer, 10 x 45 mm

4шт.

21

133252A1

BOLT,Hex, M10 x 20mm, W/ Captive Wshr

BOLT - hex, with captive washer, 10 x 20 mm

2шт.

22

133253A1

BOLT,Hex, M10 x 35mm, W/ Captive Wshr

- hex, with captive washer, 10 x 35 mm

2шт.

23

133243A1

STAY

BRACKET - oil strainer

1шт.

24

133251A1

BOLT,Hex, M10 x 25mm, W/ Captive Wshr

- hex, with captive washer, 10 x 25 mm

2шт.

25

133248A1

SPACER

- bracket, 17 mm

1шт.
