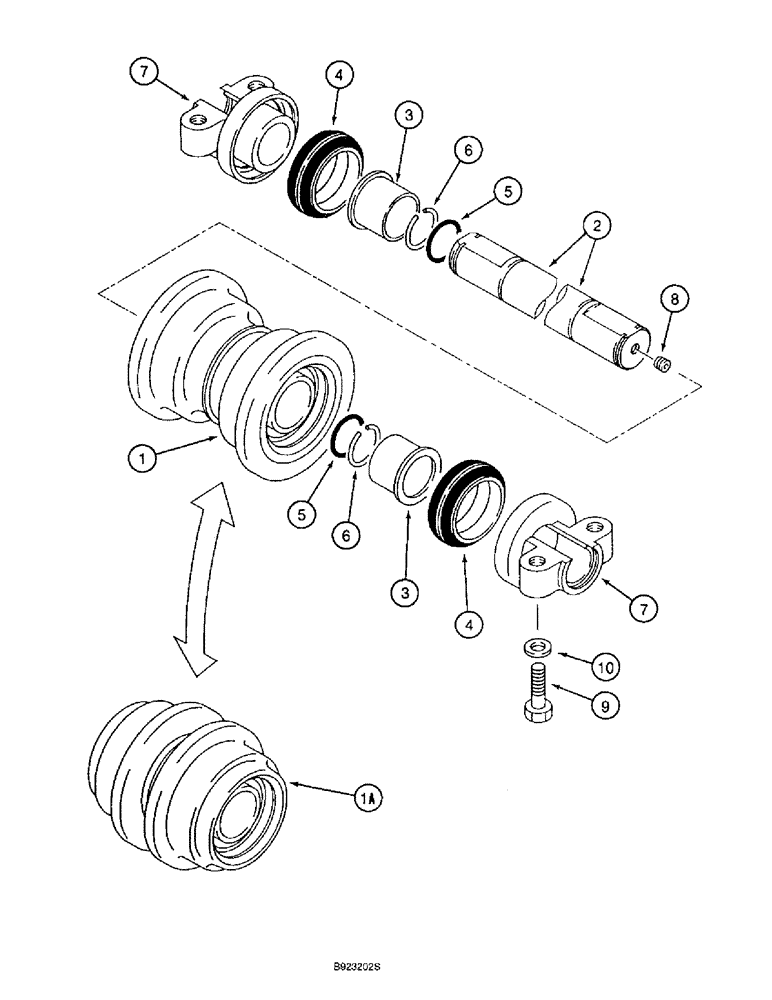

Запчасти Case 9060B (5-14) - TRACK ROLLERS, MANUFACTURED BY SUMITOMO (11) - TRACKS/STEERING

151876A1

DRAWING

ROLLER ASSEMBLY - track, with outer flanges, manufactured by Sumitomo, no longer available, order 170581A1 Intertrac track roller on Figure 5-16, Includes: Ref. 1 - 9

12шт.

151882A1

ROLLER ASSY.

ROLLER ASSEMBLY - track, with inner flanges, manufactured by Sumitomo, no longer available, order 170572A1 Intertrac track roller on Figure 5-16, Includes: Ref. 1 - 9

6шт.

1

151701A1

SHIFTER ROLLER

HUB - track roller, with outer flanges, for 151876A1 roller assembly

1шт.

1a

151705A1

SHIFTER ROLLER

HUB - track roller, with inner flanges, for 151882A1 roller assembly

1шт.

2

151887A1

WHEEL SHAFT

SHAFT - roller

1шт.

3

151381A1

RING

BUSHING - roller

2шт.

4

151141A1

SEAL

ASSEMBLY - face, includes two rings and two seals, track roller

2шт.

5

154679A1

O-RING

- shaft

2шт.

6

151386A1

COLLAR

RING - snap, shaft retaining

2шт.

7

151891A1

COLLAR

BRACKET - mounting, track roller

2шт.

8

150824A1

PLUG

- port

1шт.

9

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

- hex, 24 - 3.0 x 80 mm, class 10.9

72шт.

10

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

72шт.
