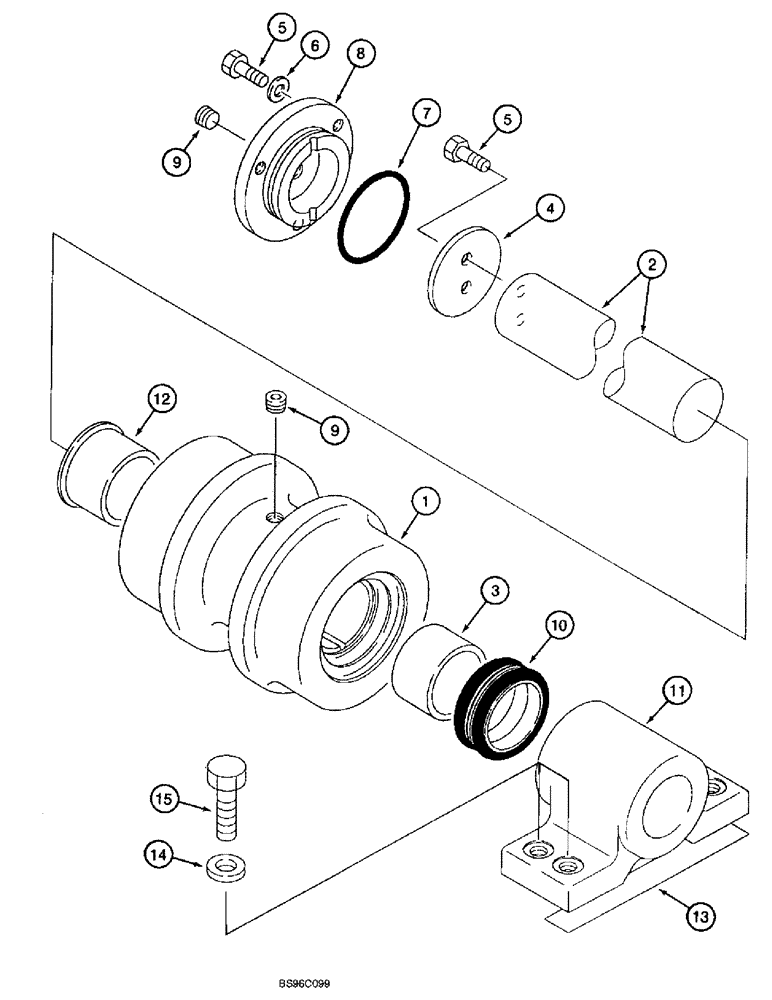

Запчасти Case 9060B (5-12) - TRACK CARRIER ROLLERS, MANUFACTURED BY INTERTRAC (11) - TRACKS/STEERING

170559A1

ROLLER ASSY.

ROLLER ASSEMBLY - carrier, manufactured by Intertrac, optional service replacement for 158745A1, Includes: Ref. 1 - 12

4шт.

1

NSS

NOT SOLD SEPARAT

ROLLER - carrier, track

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - carrier roller

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - mounting bracket end

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - shaft

1шт.

5

170562A1

BOLT

- hex, special

5шт.

6

170570A1

LOCK WASHER

WASHER - special

3шт.

7

170569A1

O-RING

- cover

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

9

170560A1

PLUG

- port

2шт.

10

170564A1

SEAL

- face, includes two seals and two rings, carrier roller

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - mounting

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - flanged, cover end

1шт.

13

150003A1

HUB

SHIM - bracket height, 0.8 mm (.03 inch) thick

1шт.

14

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special, bracket mounting

16шт.

15

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

16шт.
