(2-26) - ENGINE OIL COOLER, 6D22-TC ENGINE

Запчасти Case 9060B (2-26) - ENGINE OIL COOLER, 6D22-TC ENGINE (02) - ENGINE

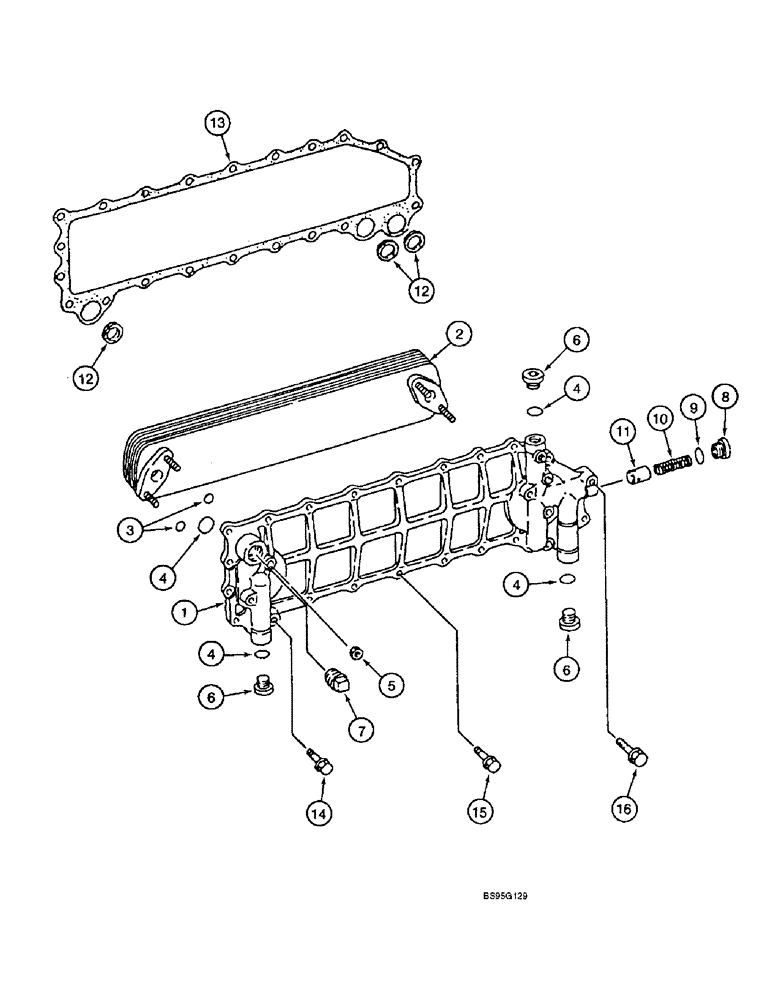

Схема запчастей Case 9060B - (2-26) - ENGINE OIL COOLER, 6D22-TC ENGINE (02) - ENGINE
9
4
4
1
13
2
8
12
5
7
11
15
4
14
16
6
4
6
10
12
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

240089A1

COOLER ASSY.

COOLER ASSEMBLY - engine oil, Includes: Ref. 1 - 11

1шт.

1

240091A1

COVER

- oil cooler

1шт.

2

240092A1

COOLER, OIL

ELEMENT - oil cooler

1шт.

3

133291A1

O-RING

- element

4шт.

4

133289A1

O-RING

-, Serial Range: element-cover

2шт.

4

240097A1

O-RING

- plug

3шт.

5

240096A1

NUT

- hex, 10 mm

4шт.

6

133282A1

PLUG

- 27 mm

3шт.

7

133283A1

PLUG

- square head, 3/4 inch PT

1шт.

8

240099A1

PLUG

- 20 mm

1шт.

9

240098A1

O-RING

- plug

1шт.

10

240094A1

SPRING

- compression type

1шт.

11

240095A1

VALVE

- oil cooler bypass

1шт.

12

133285A1

O-RING

O-RING - gasket

3шт.

13

133281A1

GASKET

- cover, oil cooler

1шт.

14

240100A1

BOLT

- hex flange, 10 x 42 mm

1шт.

15

133294A1

BOLT,Hex Flg, M10 x 30mm

- hex flange, 10 x 30 mm

1шт.

15

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

19шт.

16

133295A1

BOLT,Hex Flg, M10 x 50mm

- hex flange, 10 x 50 mm

1шт.
