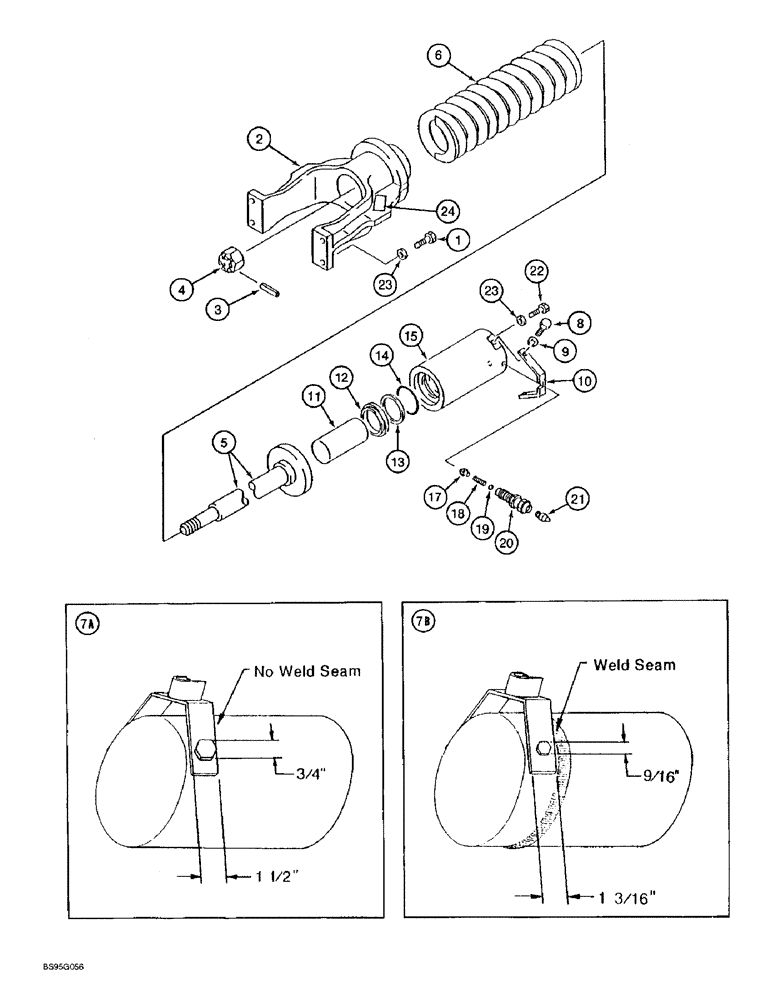

Запчасти Case 9060B (5-08) - TRACK ADJUSTER (11) - TRACKS/STEERING

1

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

2

151909A1

FORK

YOKE - track adjuster

2шт.

3

538-816

LOCK PIN,M10 x 100, Slotted

PIN - roll, 10 x 100 mm

2шт.

4

151215A1

NUT

- hex

2шт.

5

151980A1

ROD,THREADED

GUIDE - tension spring

2шт.

6

151986A1

SPRING

- track tension

2шт.

7a

151990A1

CYLINDER

ASSEMBLY - track adjuster, non-welded style, if used, Includes: Ref. 8 - 21

2шт.

This cylinder exists with two styles of fabrication, both with the same part number. Determine the style of fabrication, non-welded (7A) or welded (7B), for the equipment used, then order parts listed under that type of fabrication.

1шт.

8

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

4шт.

10

152138A1

BRACKET

- check valve

2шт.

11

151994A1

JACK PISTON

ROD - piston

2шт.

12

152004A1

SEAL

WIPER - rod

2шт.

13

151083A1

BACK-UP RING

RING - backup

2шт.

14

154740A1

O-RING

- piston rod

2шт.

15

151999A1

CYLINDER

TUBE - cylinder

2шт.

16

150107A1

LUBE NIPPLE

VALVE - check, Includes: Ref. 17 - 21

2шт.

17

150120A1

CAP

POPPET - check valve

2шт.

18

150112A1

VALVE SEAT

BODY - check valve

2шт.

19

150115A1

SPRING

- check valve

2шт.

20

150897A1

BALL

- check

2шт.

21

153630A1

LUBE NIPPLE

FITTING - grease, straight

2шт.

7b

151990A1

CYLINDER

ASSEMBLY - track adjuster, welded style, if used, no longer available, when 151990A1 cylinder assembly is ordered, the non-welded style (7A) will be received, Includes: Ref. 8 - 24

2шт.

This cylinder exists with two styles of fabrication, both with the same part number. Determine the style of fabrication, non-welded (7A) or welded (7B), for the equipment used, then order parts listed under that type of fabrication.

1шт.

8

170424A1

BOLT

- hex, special

4шт.

9

170425A1

LOCK WASHER

WASHER - lock, special

4шт.

10

170426A1

BRACKET

- check valve

2шт.

11

170427A1

PISTON ROD

ROD - piston

2шт.

12

170428A1

SEAL

WIPER - rod

2шт.

13

170429A1

BACK-UP RING

RING - backup

2шт.

14

170430A1

O-RING

- piston rod

2шт.

15

170431A1

CYLINDER

TUBE - cylinder

2шт.

16

170432A1

VALVE, CHECK

VALVE ASSEMBLY - check

2шт.

17

NSS

NOT SOLD SEPARAT

POPPET - check valve

2шт.

18

NSS

NOT SOLD SEPARAT

BODY - check valve

2шт.

19

NSS

NOT SOLD SEPARAT

SPRING - check valve

2шт.

20

NSS

NOT SOLD SEPARAT

BALL - check

2шт.

21

NSS

NOT SOLD SEPARAT

FITTING - grease, straight

2шт.

22

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

23

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

12шт.

24

REF

INSTRUCTION

TAG - manufacturer identification

1шт.
