(5-06) - IDLER WHEEL

Запчасти Case 9060B (5-06) - IDLER WHEEL (11) - TRACKS/STEERING

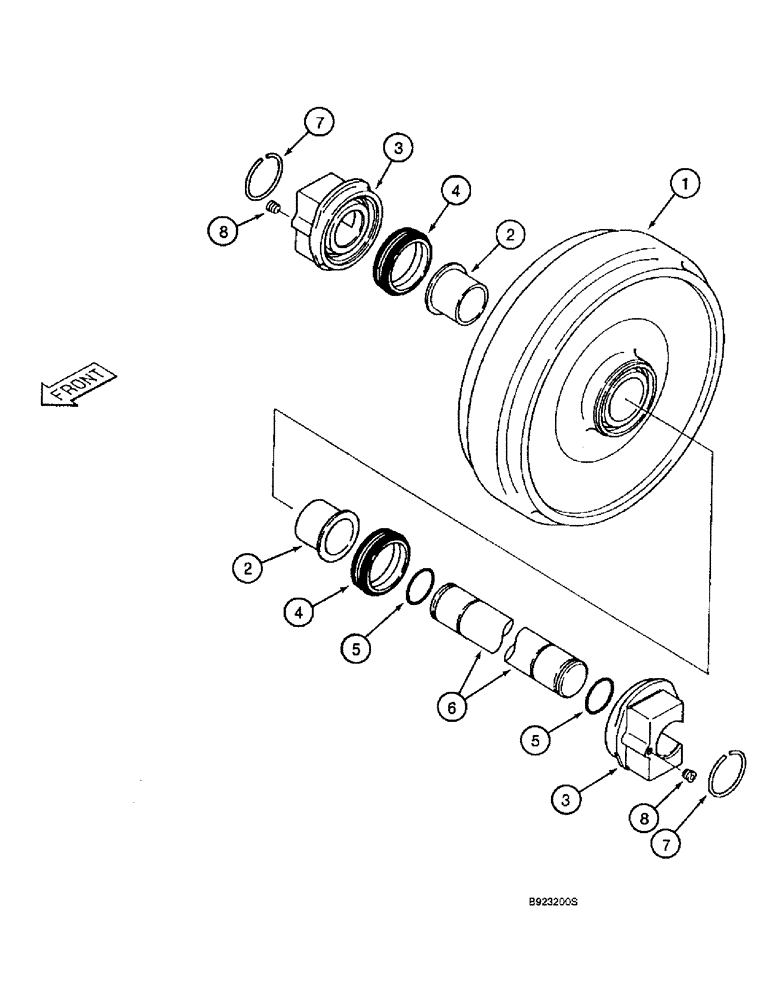

Схема запчастей Case 9060B - (5-06) - IDLER WHEEL (11) - TRACKS/STEERING
7
2
8
8
5
3
3
7
4
4
1
2
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

152152A1

FLEETING PULLEY

WHEEL ASSEMBLY - idler, track, Includes: Ref. 1 - 8

2шт.

1

152156A1

FRONT IDLER

WHEEL - idler, track

1шт.

2

151336A1

BUSHING

- Idler wheel

2шт.

3

151333A1

HUB

- idler support

2шт.

4

150599A1

SEAL

ASSEMBLY - face, includes two rings and two seals

2шт.

5

150446A1

O-RING

- shaft seal

2шт.

6

151330A1

SEAL

SHAFT - idler wheel

1шт.

7

151386A1

COLLAR

RING - snap, shaft retaining

2шт.

8

150821A1

PLUG

- port

2шт.
