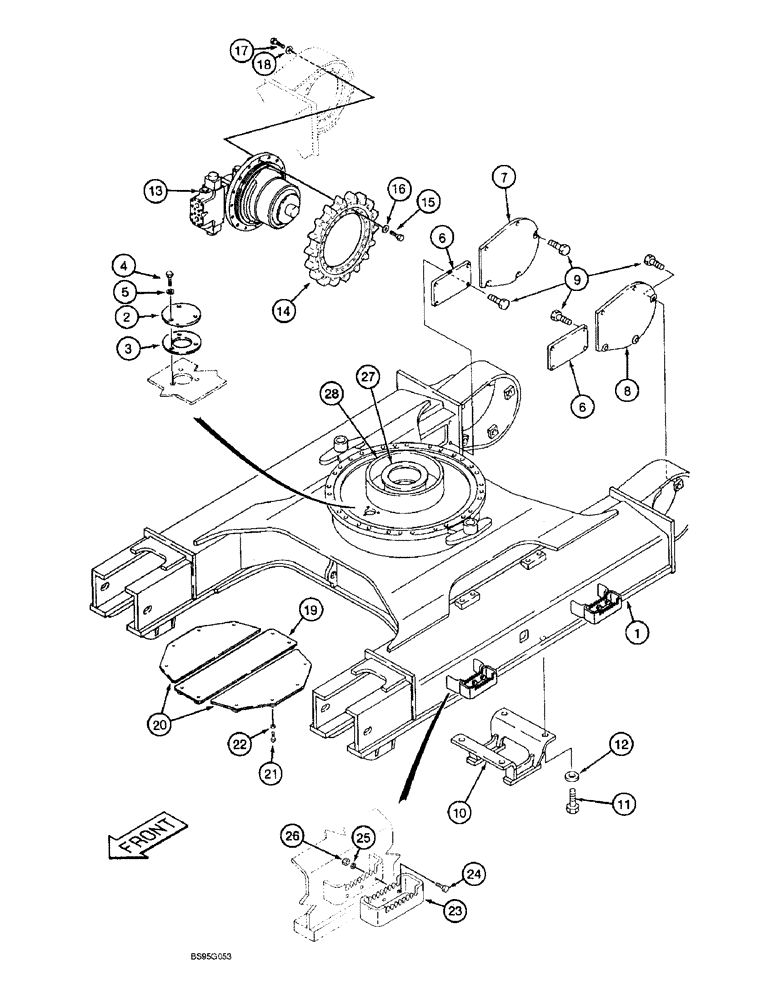

Запчасти Case 9060B (5-02) - TRACK FRAME AND DRIVE SPROCKET (11) - TRACKS/STEERING

1

170135A1

FRAME

- track

1шт.

2

150432A1

LID

COVER - access, grease fill, turntable gear

1шт.

3

150436A1

PACKING

GASKET - access cover

1шт.

4

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

3шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

6

151820A1

COVER

- access, hydraulic, Serial Range: lines-motor

2шт.

7

151811A1

COVER

- access, track drive motor, right-hand

1шт.

8

151816A1

COVER

- access, track drive motor, left-hand

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover

18шт.

10

152027A1

GUARD

GUIDE - track

2шт.

11

628-24050

BOLT,Hex, M24 x 3 x 50mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 50 mm, class 10.9

8шт.

12

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

8шт.

13

REF

INSTRUCTION

MOTOR ASSEMBLY - track drive, parts list Figures 6-2 - 6-10

2шт.

14

163645A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.

15

627-24065

BOLT,Hex, M24 x 3 x 65mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 65 mm, class 10.9

48шт.

16

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

48шт.

17

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

48шт.

18

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

48шт.

19

151289A1

COVER

- access, clean out, turntable gear, inner

1шт.

20

151283A1

COVER

- access, clean out, turntable gear, outer

2шт.

21

626-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

12шт.

22

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

12шт.

23

170120A1

STEP

- operator, bolted to track frame

4шт.

24

628-24060

BOLT,Hex, M24 x 3 x 60mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 60 mm, class 10.9

12шт.

25

892-12024

LOCK WASHER,M24

WASHER - lock, 24 mm

12шт.

26

829-1324

NUT

- hex, 24 mm - 3, class 10

12шт.

27

170418A1

RING

- track frame, outer

1шт.

28

170419A1

RING

- track frame, inner

1шт.
