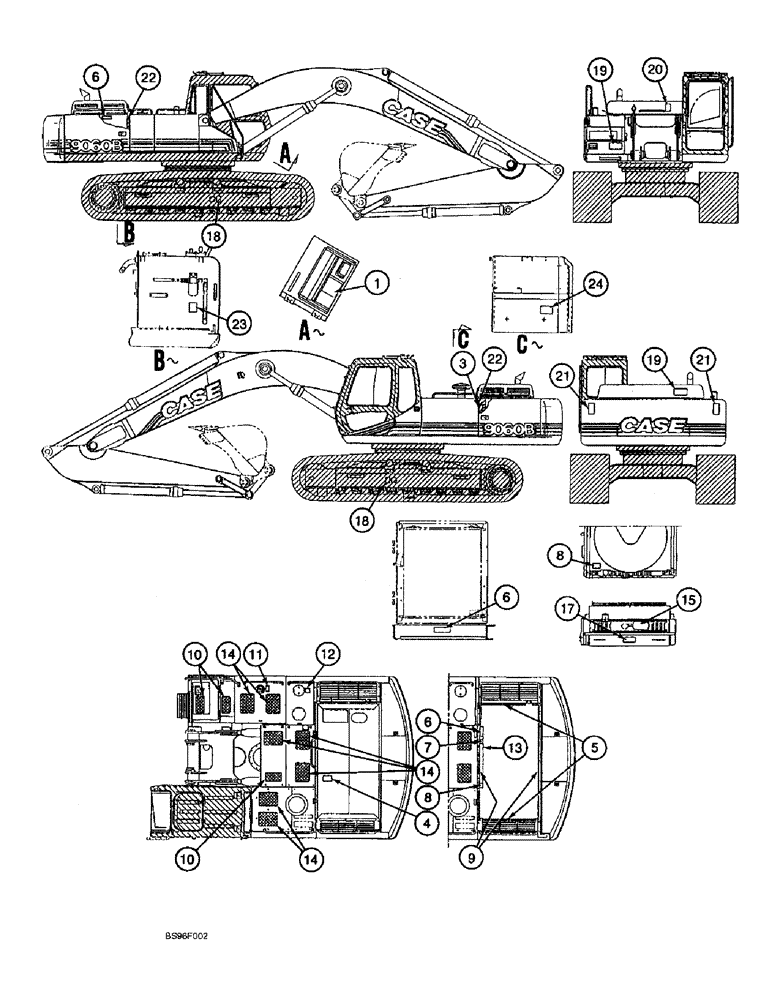

Запчасти Case 9060B (9-096) - DECALS - WARNING AND DANGER, ENGLISH LANGUAGE (09) - CHASSIS

1

170747A1

DECAL

- lubrication chart

1шт.

2

170683A1

DECAL

- counterweight removal, not shown

1шт.

3

163727A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

1шт.

4

161730A1

DECAL

- Warning, slippery and unstable surface

1шт.

5

162947A1

ADHESIVE

TAPE - special, 420 mm (16-11/32 inch) long

2шт.

6

162142A1

DECAL

- Warning, hot surfaces

3шт.

7

321-6872

DECAL

- Warning, wrong jumper cable connections to starter terminals

1шт.

8

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

9

162937A1

DECAL

TAPE - special, 5400 mm (212-5/8 inch) long

2шт.

10

150108A1

ANTI-SKID STRIP

STRIP - adhesive, anti-skid

3шт.

11

161463A1

DECAL

- gas pump, diesel fuel only

1шт.

12

162872A1

DECAL

- Warning, hot hydraulic fluid

1шт.

13

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

14

162935A1

ANTI-SKID STRIP

TAPE - non-skid

7шт.

15

151796A1

ADHESIVE STRIP

TAG - antifreeze notice

1шт.

16

170684A1

DECAL

- counterweight removal procedure, not shown

1шт.

17

321-6672

DECAL

- Warning, check and service cooling system

1шт.

18

161467A1

DECAL

- Warning, grease under pressure

2шт.

19

161734A1

WARNING DECAL

DECAL - Warning, stay away from machine

2шт.

20

161465A1

DECAL

- Warning, falling engine hood

1шт.

21

151880A1

DECAL

- Danger, keep clear of swinging upper

2шт.

22

162939A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

2шт.

23

161733A1

DECAL

- to check oil level

1шт.

24

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.
