Запчасти Case 9060B (9-094) - TOOLS (09) - CHASSIS

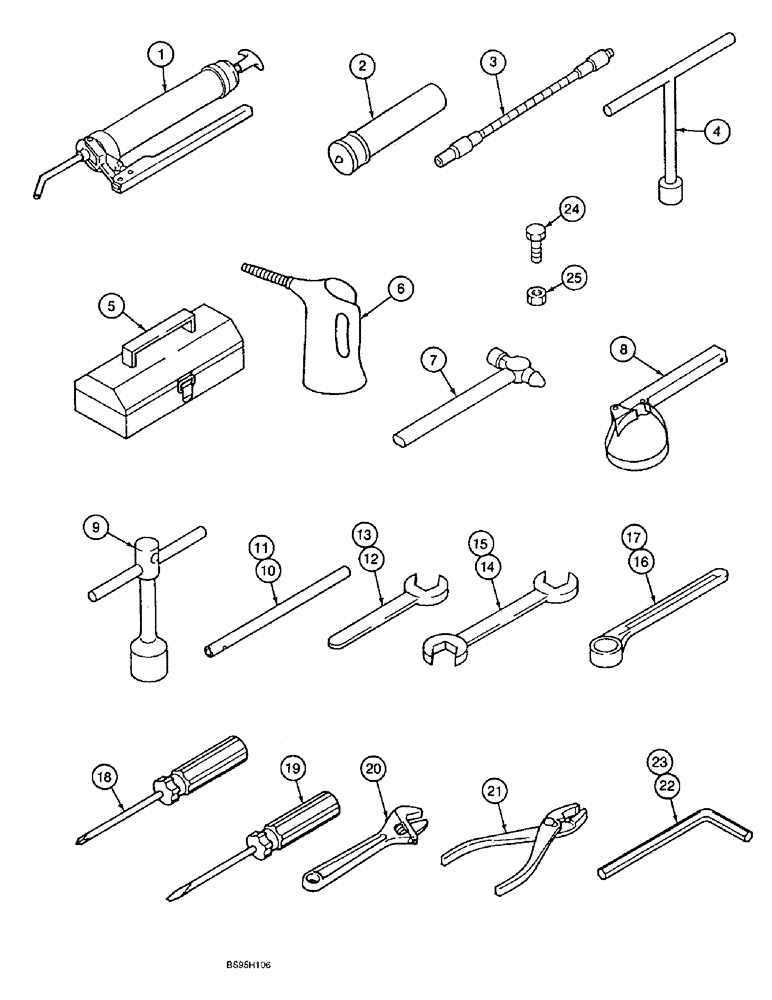

Схема запчастей Case 9060B - (9-094) - TOOLS (09) - CHASSIS
12
18
11
6
7
25
9
8
19
22
24
15
2
13
3
16
14
1
4
5
17
23
10
20
21

Артикул

Название

Примечание

Количество

1

151676A1

GREASE GUN

GUN - grease

1шт.

2

150309A1

CARTRIDGE

- grease

1шт.

3

150324A1

HOSE

Grease Gun

1шт.

4

152352A1

SPECIAL WRENCH

WRENCH - T-handle, 10 mm

1шт.

5

152357A1

BOX, TOOL

BOX - tool

1шт.

6

152333A1

CONTAINER

- oil, with spout

1шт.

7

153617A1

HAMMER

- 1 pound

1шт.

8

150196A1

SPECIAL WRENCH

WRENCH - filter

1шт.

9

150216A1

CROSS SPANNER

WRENCH - spanner

1шт.

10

151192A1

TOOL

LEVER - extension

1шт.

11

151196A1

TOOL

LEVER - extension

1шт.

12

153610A1

OPEN END WRENCH

WRENCH - open end

1шт.

13

150608A1

OPEN END WRENCH

WRENCH - open end

1шт.

14

153606A1

OPEN END WRENCH

WRENCH - open both ends, 17 x 19 mm

1шт.

15

153607A1

OPEN END WRENCH

WRENCH - open both ends, 24 x 30 mm

1шт.

16

150781A1

SPECIAL WRENCH

WRENCH - closed end, 27 mm

1шт.

17

151067A1

SPECIAL WRENCH

WRENCH - closed one end

1шт.

18

153616A1

SCREWDRIVER

- Philips type

1шт.

19

153618A1

SCREWDRIVER

- common

1шт.

20

153620A1

SPECIAL WRENCH

WRENCH - adjustable

1шт.

21

153621A1

PLIERS

PLIER - standard

1шт.

22

153614A1

SPECIAL WRENCH

WRENCH - Allen type, 10 mm

1шт.

23

153615A1

SPECIAL WRENCH

WRENCH - Allen type, 14 mm

1шт.

24

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

- hex, 8 - 1.25 x 70 mm, class 10.9

1шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

Выбрано товаров: 25
