Запчасти Case 9060B (9-092) - ESCO TOOTH OPTIONS (09) - CHASSIS

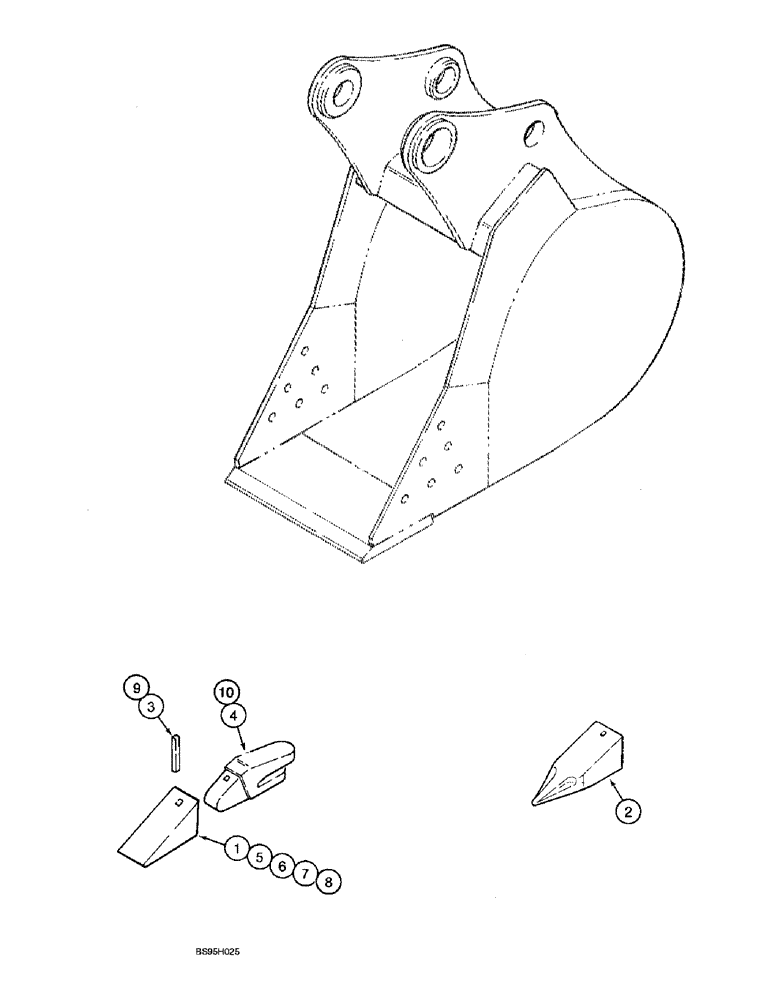

Схема запчастей Case 9060B - (9-092) - ESCO TOOTH OPTIONS (09) - CHASSIS
9
10
8
4
7
5
6
2
3
1

Артикул

Название

Примечание

Количество

1

127565A1

TOOTH

- chisel point - with 2 inch lip adapter, for Central Fabricators or H & H heavy duty buckets

1шт.

2

127566A1

TOOTH

- tiger point - with 2 inch lip adapter, for Central Fabricators or H & H heavy duty buckets

1шт.

3

127567A1

LOCK

- tooth to shank, pin and plug - with 2 inch lip adapter, for Central Fabricators or H & H heavy duty buckets

1шт.

4

127564A1

ADAPTER

SHANK - tooth, 2 inch, also called an adapter - with 2 inch lip adapter, for Central Fabricators or H & H heavy duty buckets

1шт.

5

127569A1

TOOTH

- bucket, chisel point - with 2-1/2 inch lip adapter, for Central Fabricators or H & H severe duty buckets

1шт.

6

127570A1

TOOTH

- bucket, tiger point - with 2-1/2 inch lip adapter, for Central Fabricators or H & H severe duty buckets

1шт.

7

127571A1

TOOTH

- bucket, twin tiger point - with 2-1/2 inch lip adapter, for Central Fabricators or H & H severe duty buckets

1шт.

8

127572A1

TOOTH

- bucket, standard point - with 2-1/2 inch lip adapter, for Central Fabricators or H & H severe duty buckets

1шт.

9

127573A1

LOCK

- tooth to shank, pin and plug - with 2-1/2 inch lip adapter, for Central Fabricators or H & H severe duty buckets

1шт.

10

127568A1

ADAPTER

SHANK - tooth, 2-1/2 inch, also called an adapter - with 2-1/2 inch lip adapter, for Central Fabricators or H & H severe duty buckets

1шт.

Выбрано товаров: 10
