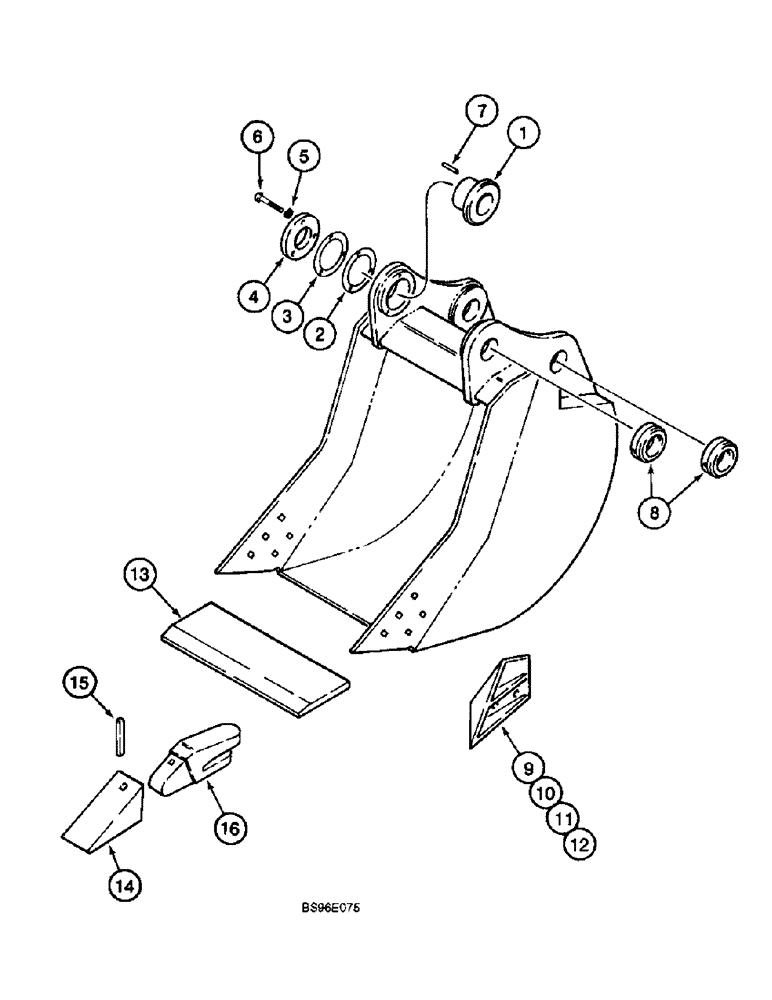

Запчасти Case 9060B (9-088) - H & H BUCKETS, SEVERE DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 4 teeth, 1.89 cu. yd. - bucket assembly, severe duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 5 teeth, 2.14 cu. yd. - bucket assembly, severe duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 5 teeth, 2.30 cu. yd. - bucket assembly, severe duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125676A1

BUSHING

- adjustable - bucket assembly, severe duty

1шт.

2

125677A1

SHIM

- adjustable bushing - bucket assembly, severe duty

1шт.

3

125678A1

SHIM

- adjustable bushing - bucket assembly, severe duty

6шт.

4

125680A1

RETAINER

PLATE - cover, adjustable bushing - bucket assembly, severe duty

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Bucket assembly, Severe duty 5/8"

3шт.

6

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Bucket assembly, severe duty Hex, 5/8"-11 x 2", G8

3шт.

7

125664A1

DOWEL

PIN - dowel, special, adjustable bushing - bucket assembly, severe duty

2шт.

8

125681A1

BOSS

BUSHING - non adjustable, with locking collar - bucket assembly, severe duty

2шт.

128170A1

HALF BLADE

KIT - edge, side cutting, 5 inch, Includes: Ref. 9 - 12

1шт.

9

125934A1

EDGE, CUTTING

EDGE - side cutting, left-hand, 5 inch - side cutting kit

1шт.

10

125936A1

EDGE, CUTTING

EDGE - side cutting, right-hand, 5 inch - side cutting kit

1шт.

11

320-21656

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

BOLT - plow, #3 head, 1 NC x 3-1/2 inch, grade 8 - side cutting kit

10шт.

12

232-41316

NUT,1"-8, GC

NUT, LOCK, , Side cutting kit 1"-8, GC

10шт.

13

125738A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket - 2-1/2 inch cutting edges, severe duty buckets

1шт.

13

125739A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket - 2-1/2 inch cutting edges, severe duty buckets

1шт.

13

125740A1

EDGE, CUTTING

EDGE - cutting, center, 1372 mm (54 inch) bucket - 2-1/2 inch cutting edges, severe duty buckets

1шт.

14

122677A1

TOOTH

- standard point - 2-1/2 inch cutting edges, severe duty buckets

1шт.

See Figures 9-90 and 9-92 for point, pin and shank options.

1шт.

15

122678A1

FASTENER

PIN - flex, standard - 2-1/2 inch cutting edges, severe duty buckets

1шт.

See Figures 9-90 and 9-92 for point, pin and shank options.

1шт.

16

122679A1

ADAPTER

SHANK - tooth, 2-1/2 inch - 2-1/2 inch cutting edges, severe duty buckets

1шт.

See Figures 9-90 and 9-92 for point, pin and shank options.

1шт.
