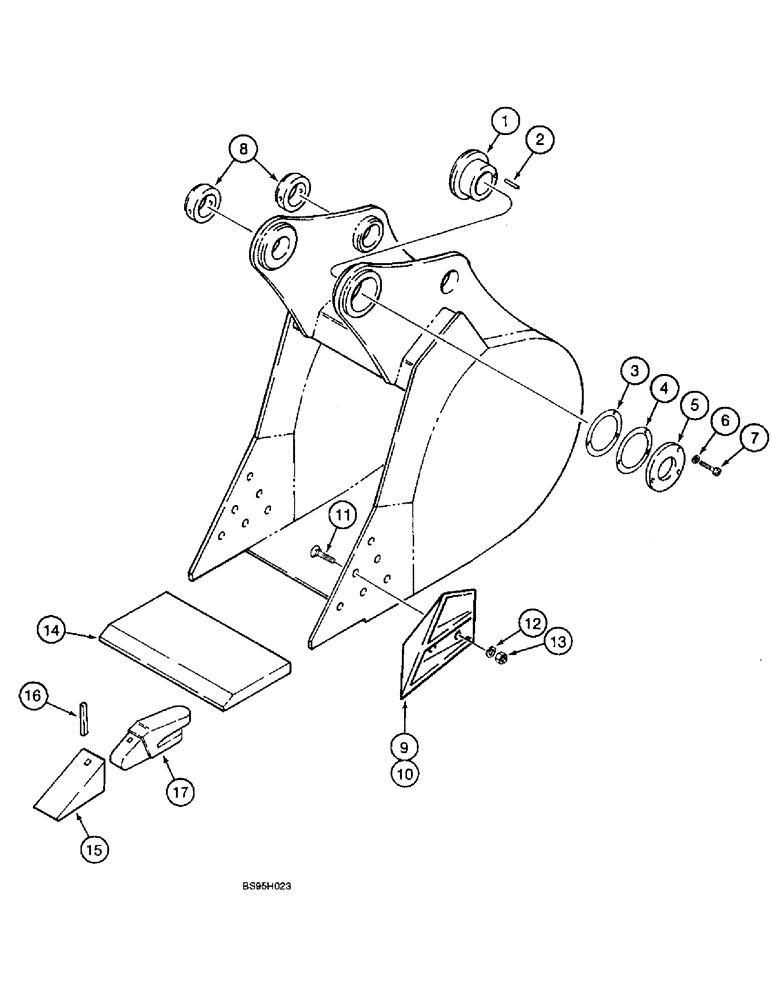

Запчасти Case 9060B (9-082) - CENTRAL FABRICATORS BUCKETS, SEVERE DUTY, 2-1/2" CUTTING EDGES (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 4 teeth, 1.85 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 5 teeth, 2.15 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 5 teeth, 2.45 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122691A1

BUSHING

- adjustable, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - dowel, special

2шт.

3

122692A1

SHIM

- adjustable bushing

2шт.

4

122693A1

SHIM

- adjustable bushing

6шт.

5

122694A1

RETAINER

PLATE - cover, adjustable bushing

1шт.

6

429-11062

LOCK WASHER

SCREW

3шт.

7

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

BOLT - hex socket, 5/8 NC x 2 inch

3шт.

8

122695A1

BOSS

BUSHING - non-adjustable, with locking collar

2шт.

128169A1

HALF BLADE

KIT - edge, side cutting, 6 inch, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side, side kit

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side, side kit

1шт.

11

320-21456

CARRIAGE BOLT,#3, 7/8" - 9 x 3 1/2", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3-1/2 inch, grade 8, side cutting kit

6шт.

12

392-21088

LOCK WASHER,7/8"

side cutting kit 7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

Side cutting kit 7/8"-9, G8

6шт.

14

125029A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, 2-1/2" edges, severe duty

1шт.

14

125030A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket, 2-1/2" edges, severe duty

1шт.

14

125031A1

EDGE, CUTTING

EDGE - cutting, center, 1372 mm (54 inch) bucket, 2-1/2" edges, severe duty

1шт.

15

122677A1

TOOTH

- standard point, 2-1/2" cutting edges, severe duty

1шт.

See Figures 9-90 and 9-92 for point, pin and shank options.

1шт.

16

122678A1

FASTENER

PIN - flex, standard, 2-1/2" cutting edges, severe duty

1шт.

See Figures 9-90 and 9-92 for point, pin and shank options.

1шт.

17

122679A1

ADAPTER

SHANK - tooth, 2-1/2 inch, cutting edges, severe duty

1шт.

See Figures 9-90 and 9-92 for point, pin and shank options.

1шт.
