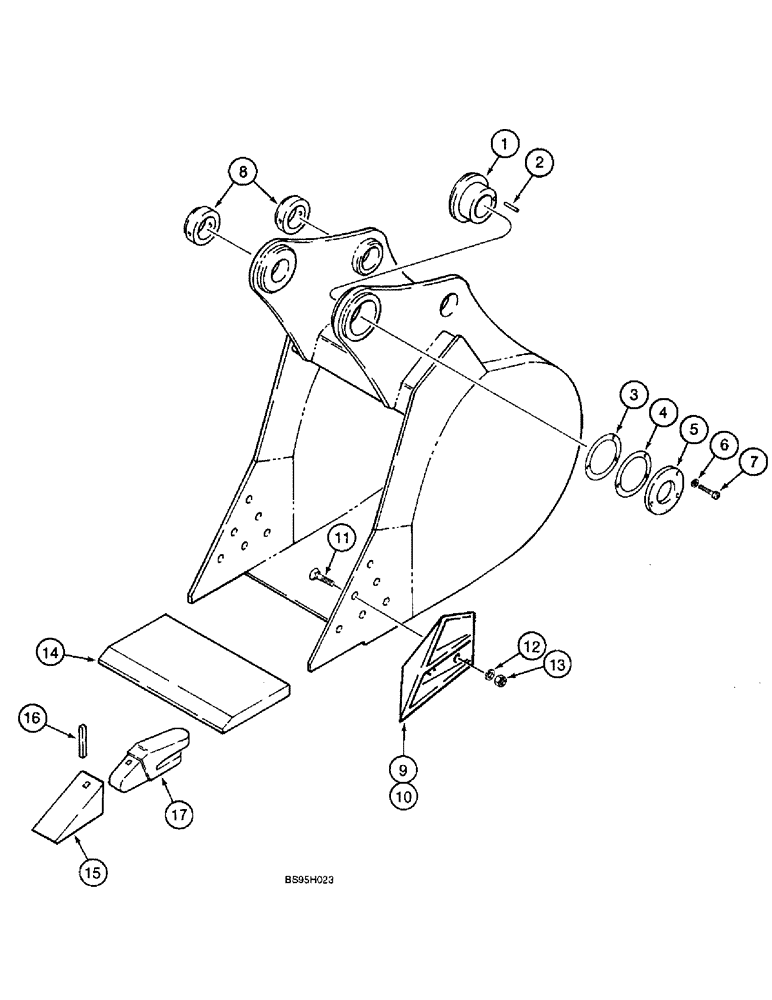

Запчасти Case 9060B (9-080) - CENTRAL FABRICATORS BUCKETS, HEAVY DUTY - STANDARD & HIGH CAPACITY, 2" CUTTING EDGES (09) - CHASSIS

REF

INSTRUCTION

BUCKET - continued

1шт.

14

125022A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, 2" cutting edges, heavy duty, standard capacity

1шт.

14

125023A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, 2" cutting edges, heavy duty, standard capacity

1шт.

14

125024A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket, 2" cutting edges, heavy duty, standard capacity

1шт.

14

125025A1

EDGE, CUTTING

EDGE - cutting, center, 1372 mm (54 inch) bucket, 2" cutting edges, heavy duty, standard capacity

1шт.

14

125026A1

EDGE, CUTTING

EDGE - cutting, center, 1524 mm (60 inch) bucket, 2" cutting edges, heavy duty, standard capacity

1шт.

14

125032A1

EDGE, CUTTING

EDGE - cutting, center, 1828 mm (72 inch) bucket, 2" cutting edges, heavy duty, standard capacity

1шт.

14

125010A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, 2" cutting edges, heavy duty, high capacity

1шт.

14

125011A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, 2" cutting edges, heavy duty, high capacity

1шт.

14

125012A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket, 2" cutting edges, heavy duty, high capacity

1шт.

14

125013A1

EDGE, CUTTING

EDGE - cutting, center, 1372 mm (54 inch) bucket, 2" cutting edges, heavy duty, high capacity

1шт.

14

125014A1

EDGE, CUTTING

EDGE - cutting, center, 1524 mm (60 inch) bucket, 2" cutting edges, heavy duty, high capacity

1шт.

14

125033A1

EDGE, CUTTING

EDGE - cutting, center, 1828 mm (72 inch) bucket, 2" cutting edges, heavy duty, high capacity

1шт.

15

122671A1

TOOTH

- standard point, 2" cutting edges, heavy duty, high capacity

1шт.

See Figures 9-90 and 9-92 for point, pin and shank options.

1шт.

16

122672A1

FASTENER

PIN - flex, point to shank, standard, 2" cutting edges, heavy duty, high capacity

1шт.

See Figures 9-90 and 9-92 for point, pin and shank options.

1шт.

16

176554A1

PIN

- steel, point to shank, replacement option, 2" cutting edges, heavy duty, high capacity

1шт.

See Figures 9-90 and 9-92 for point, pin and shank options.

1шт.

17

122673A1

BUCKET TOOTH SHANK

- tooth, 2 inch, 2" cutting edges, heavy duty, high capacity

1шт.

See Figures 9-90 and 9-92 for point, pin and shank options.

1шт.
