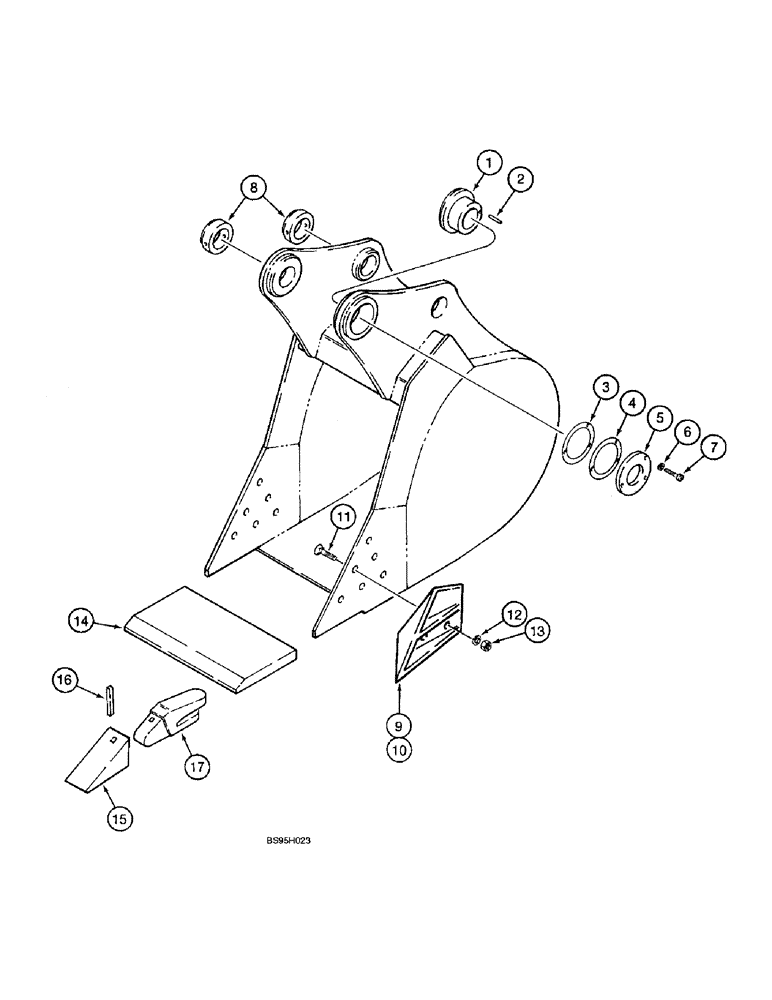

Запчасти Case 9060B (9-078) - CENTRAL FABRICATORS BUCKETS, HEAVY DUTY - STANDARD & HIGH CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 36 inch ( 914 mm), with 4 teeth, 1.66 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.85 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 6 teeth, 2.15 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 6 teeth, 2.45 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 60 inch (1524 mm), with 7 teeth, 2.74 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 72 inch (1829 mm), with 8 teeth, 3.29 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 36 inch ( 914 mm), with 4 teeth, 1.96 cu. yd., heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 4 teeth, 2.32 cu. yd., heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 5 teeth, 2.69 cu. yd., heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 5 teeth, 3.06 cu. yd., heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 60 inch (1524 mm), with 6 teeth, 3.43 cu. yd., heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 72 inch (1829 mm), with 7 teeth, 4.17 cu. yd., heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122691A1

BUSHING

- adjustable, heavy duty, high capacity, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - dowel, special, 12 x 30 mm, heavy duty, high capacity

1шт.

3

122692A1

SHIM

- adjustable bushing, heavy duty, high capacity

2шт.

4

122693A1

SHIM

- adjustable bushing, heavy duty, high capacity

6шт.

5

122694A1

RETAINER

PLATE - cover, adjustable bushing, heavy duty, high capacity

1шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

7

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

BOLT - hex socket, 5/8 NC x 2 inch, heavy duty, high capacity

3шт.

8

122695A1

BOSS

BUSHING - non-adjustable, with locking collar, heavy duty, high capacity

2шт.

128169A1

HALF BLADE

KIT - edge, side cutting, 6 inch, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side

1шт.

11

320-21456

CARRIAGE BOLT,#3, 7/8" - 9 x 3 1/2", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3-1/2 inch, grade 8, side cutting kit

6шт.

12

392-21088

LOCK WASHER,7/8"

side cutting kit 7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

Side cutting kit 7/8"-9, G8

6шт.
