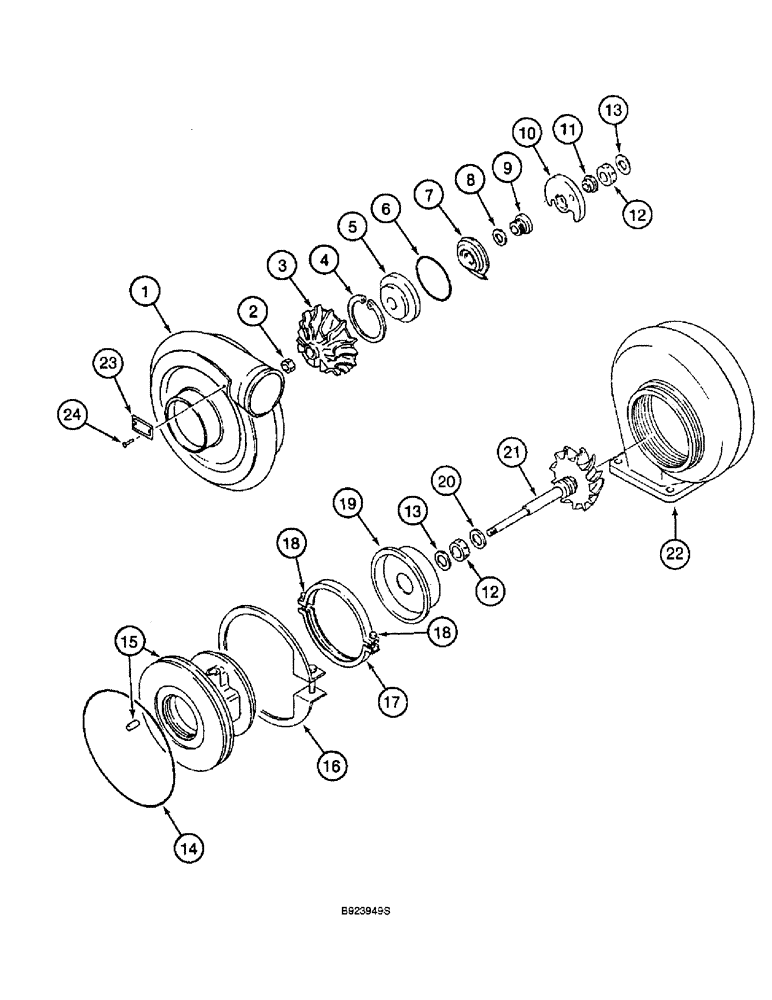

Запчасти Case 9060B (2-22) - TURBOCHARGER ASSEMBLY, 6D22-TC ENGINE (02) - ENGINE

240308A1

ASSEMBLY

TURBOCHARGER ASSEMBLY - engine, Includes: Ref. 1 - 24

1шт.

1

134935A1

COVER

HOUSING - compressor

1шт.

2

134956A1

SPECIAL NUT

- special

1шт.

3

134948A1

ROTOR

- compressor

1шт.

4

134953A1

RING, SNAP

RING - retaining, oil baffle

1шт.

5

134939A1

BAFFLE

- oil

1шт.

6

134964A1

O-RING

- oil slinger

1шт.

7

134936A1

SLINGER

- oil

1шт.

8

134944A1

RING

- seal

1шт.

9

134951A1

SLEEVE

- oil slinger

1шт.

10

134929A1

THRUST BEARING

- thrust

1шт.

11

134943A1

RING

- thrust

1шт.

12

134927A1

BEARING

BEARING - shaft

2шт.

13

134954A1

RING, SNAP

RING - retaining, bearing

2шт.

14

134965A1

O-RING

- housing

1шт.

15

134937A1

HOUSING, BEARING

HOUSING - bearing

1шт.

16

134955A1

RING, SNAP

RING - retaining, bearing housing

1шт.

17

134933A1

COUPLING

- housing, Includes: Ref. 18

1шт.

18

134977A1

BOLT

- coupling

2шт.

19

134942A1

PLATE

SHIELD - heat, turbine

1шт.

20

134945A1

RING

- seal, turbine

1шт.

21

134947A1

SHAFT

ROTOR AND SHAFT - turbine

1шт.

22

134938A1

HOUSING

- turbine

1шт.

23

134941A1

PLATE

- name

1шт.

24

134952A1

RIVET

- name plate

2шт.
