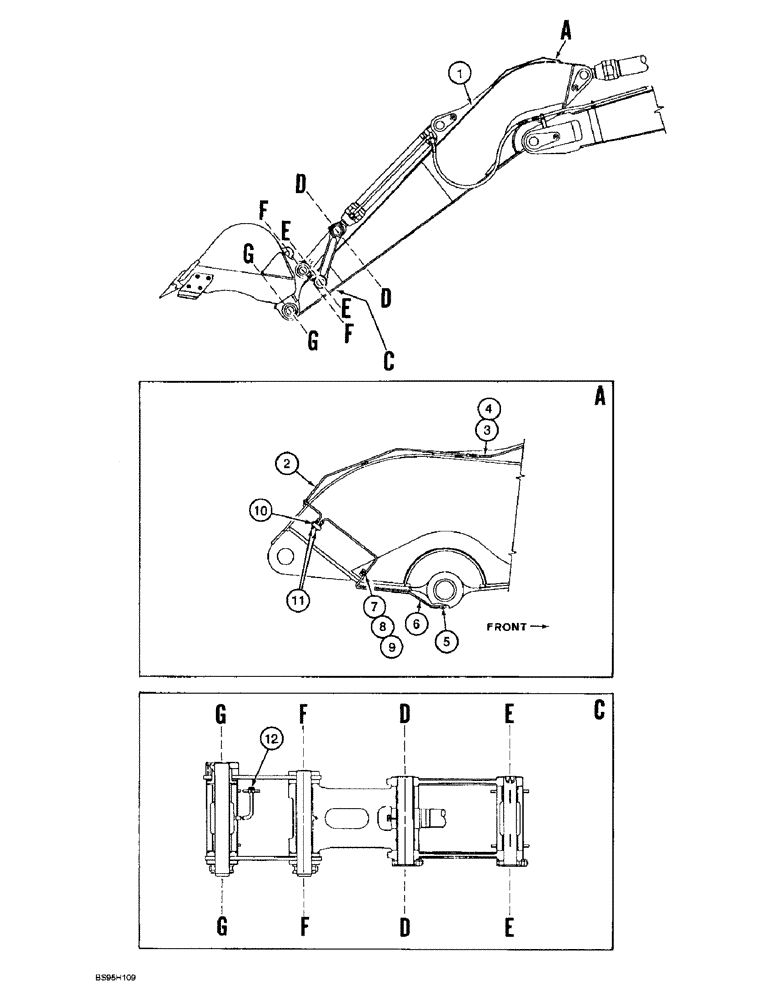

Запчасти Case 9060B (9-070) - LUBRICATION FOR 13 FT. 1 IN. (4M) ARM (09) - CHASSIS

1

REF

INSTRUCTION

ARM ASSEMBLY - excavator, parts list Figure 9-76

1шт.

2

151700A1

TUBE ASSY.

TUBE ASSEMBLY - lubrication

1шт.

3

152776A1

HOSE,560.00 mm

560.00 mm

1шт.

4

152032A1

UNION

CONNECTOR - straight

1шт.

5

152627A1

ELBOW

- 90 degree, special

1шт.

6

151703A1

TUBE ASSY.,995.5, 260.3 mm Length

TUBE ASSEMBLY - lubrication

1шт.

7

151504A1

CLAMP

- lubrication line, single type

1шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

10

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

1шт.

11

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

2шт.

12

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

8

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

1шт.
