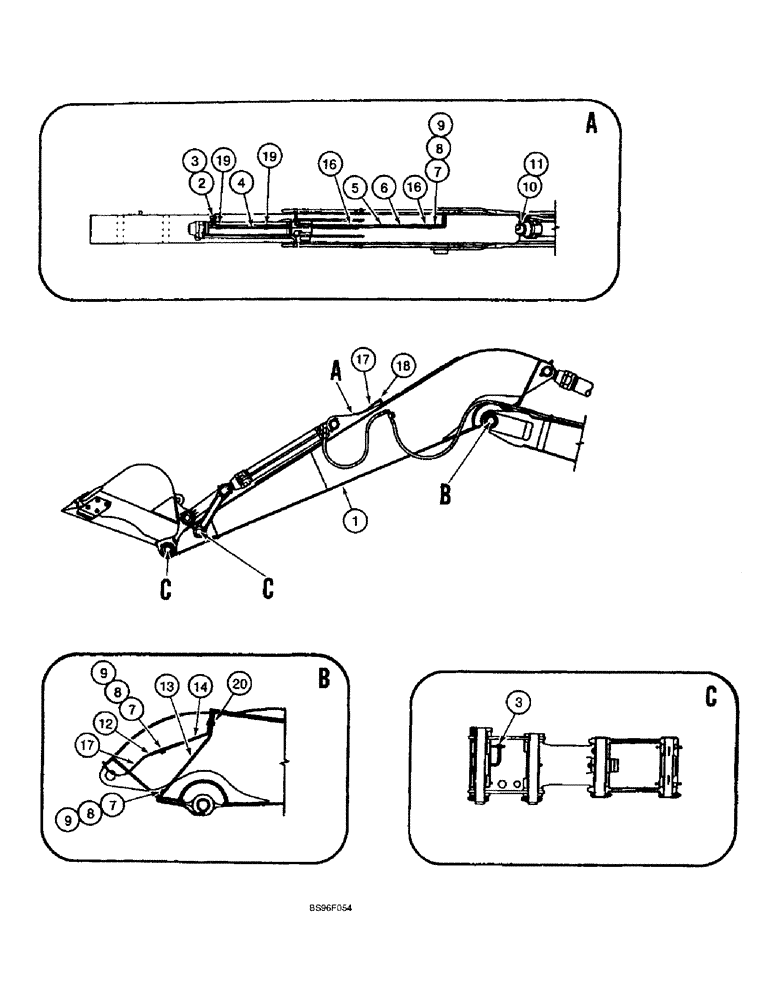

Запчасти Case 9060B (9-068) - LUBRICATION FOR 17 FT. 8 IN. (5.38 M) ARM (09) - CHASSIS

1

REF

INSTRUCTION

ARM ASSEMBLY - excavator, parts list Figure 9-76

1шт.

2

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

3шт.

3

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

4

153834A1

TUBE,2290, 139.5 mm Length

ASSEMBLY - lubrication

1шт.

5

153832A1

TUBE,3288, 91.5 mm Length

ASSEMBLY - lubrication

1шт.

6

153833A1

TUBE,3218, 115.5 mm Length

ASSEMBLY - lubrication

1шт.

7

151504A1

CLAMP

- lubrication line, single type

4шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

9шт.

10

153835A1

TUBE,228, 50 mm Length

ASSEMBLY - lubrication

1шт.

11

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

1шт.

12

152032A1

UNION

CONNECTOR - straight

1шт.

13

153837A1

TUBE

ASSEMBLY - lubrication

1шт.

14

153836A1

TUBE

ASSEMBLY - lubrication

1шт.

15

152627A1

ELBOW

- 90 degree, special

1шт.

16

153694A1

UNION

CONNECTOR - straight, special

2шт.

17

151508A1

HOSE,700.00 mm

700.00 mm

2шт.

18

153695A1

ELBOW

- 90 degree

1шт.

19

151497A1

CLAMP

- lubrication line, triple type

2шт.

20

153774A1

CLAMP

- double lubrication line

1шт.

8

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

9шт.
