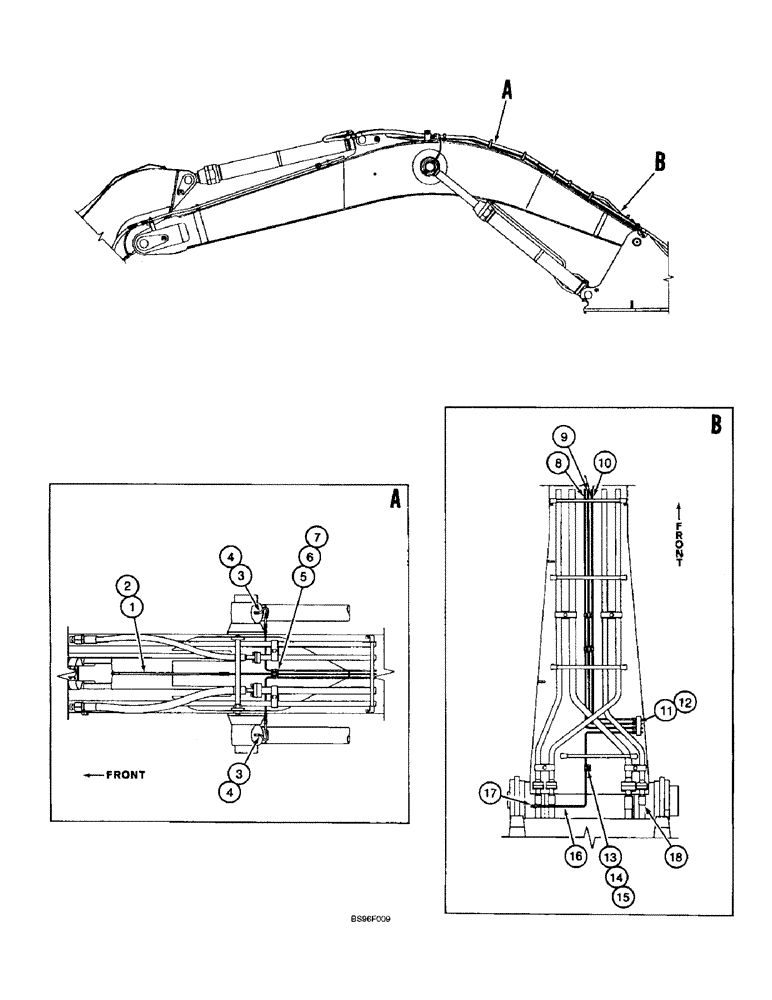

Запчасти Case 9060B (9-064) - BOOM LUBRICATION LINES (09) - CHASSIS

1

152432A1

HOSE,6.3mm ID x 770mm L

770.00 mm

1шт.

2

152032A1

UNION

CONNECTOR - straight

1шт.

3

150983A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long

2шт.

4

152032A1

UNION

CONNECTOR - straight

2шт.

5

151497A1

CLAMP

- lubrication line, triple type

2шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

8

151643A1

TUBE

- lubrication

1шт.

9

151649A1

TUBE,2866.6, 291 mm Length

- lubrication

1шт.

10

151647A1

TUBE,2596.1, 269 mm Length

- lubrication

1шт.

11

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

4шт.

12

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

13

151504A1

CLAMP

- lubrication line, single type, if used

1шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , If used M8

1шт.

16

151641A1

TUBE

- lubrication, if used

1шт.

17

152627A1

ELBOW

- 90 degree, special, if used

1шт.

18

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree, if used

2шт.

6

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

2шт.

14

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd, If used Hex, M8 x 30, 10.9

1шт.
