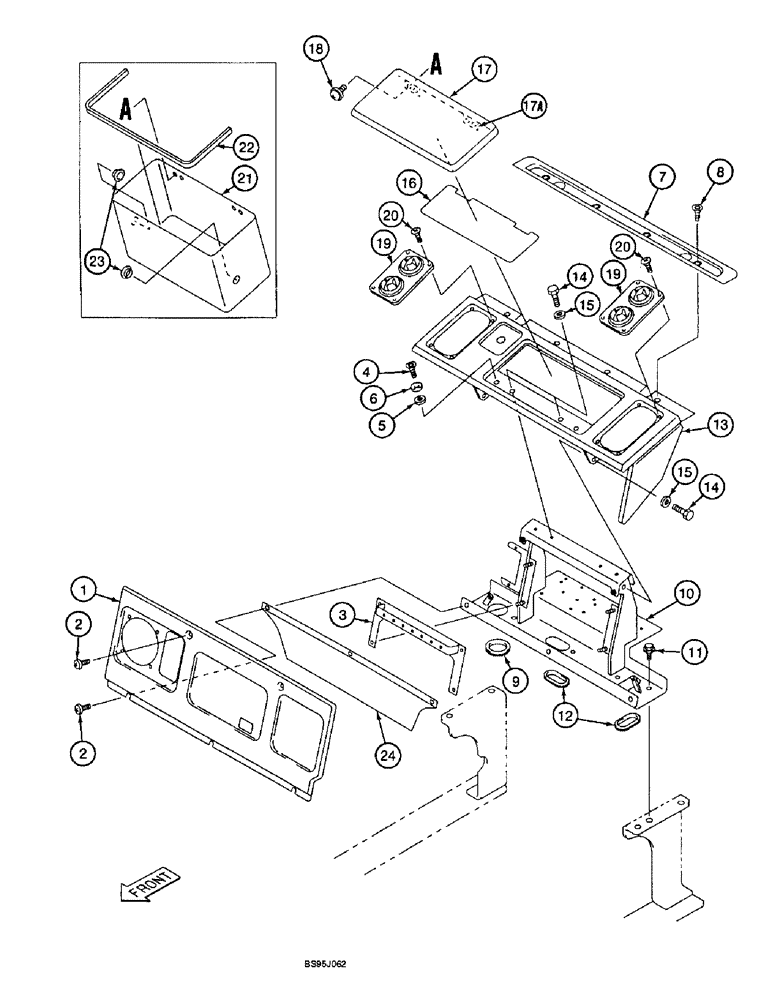

Запчасти Case 9060B (9-062) - CAB REAR CONSOLE AND PANELS, MACHINES WITH AIR CONDITIONING (09) - CHASSIS

1

159527A1

COVER

PANEL - upper, cab rear console

1шт.

2

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

5шт.

3

159290A1

SUPPORT

BRACKET - mounting

1шт.

4

151290A1

HEX SOC SCREW,Flat Csk Hd, M8 x 20mm

BOLT - special

2шт.

5

159292A1

WASHER

- special

2шт.

6

113631A1

LOCK WASHER

- toothed conical, special, 8 mm

2шт.

7

159293A1

COVER

PANEL - filler, top

1шт.

8

151290A1

HEX SOC SCREW,Flat Csk Hd, M8 x 20mm

BOLT - special

4шт.

9

161688A1

GROMMET

- rubber

1шт.

10

161694A1

STAND

CONSOLE - rear, cab

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

12

159289A1

GROMMET

- rubber

2шт.

13

159528A1

COVER

PANEL - top, cab rear console

1шт.

14

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

15

153081A1

WASHER

- flat, special

4шт.

16

159531A1

SEAL

- cushion

1шт.

17

159529A1

COVER

ASSEMBLY - special

1шт.

17a

159530A1

HINGE

- cover, special

2шт.

18

159542A1

SELF-TAP SCREW,Flg, M3 x 1.06 x 8mm

- self-tapping, special

4шт.

19

157289A1

GRILLE ASSY

OUTLET - air conditioner

2шт.

20

843-1412

SCREW,Flat , M4 x 12mm, Cl 4.8

- machine, flat Phillips, 4 - 0.7 x 12 mm

8шт.

21

163432A1

BRACKET

- panel center support

1шт.

22

163136A1

PROTECTION STRIP

TRIM - quick edge

1шт.

23

163137A1

CAP

COVER - access hole

2шт.

24

162268A1

RUBBER PAD

PLATE - rubber, special

1шт.
