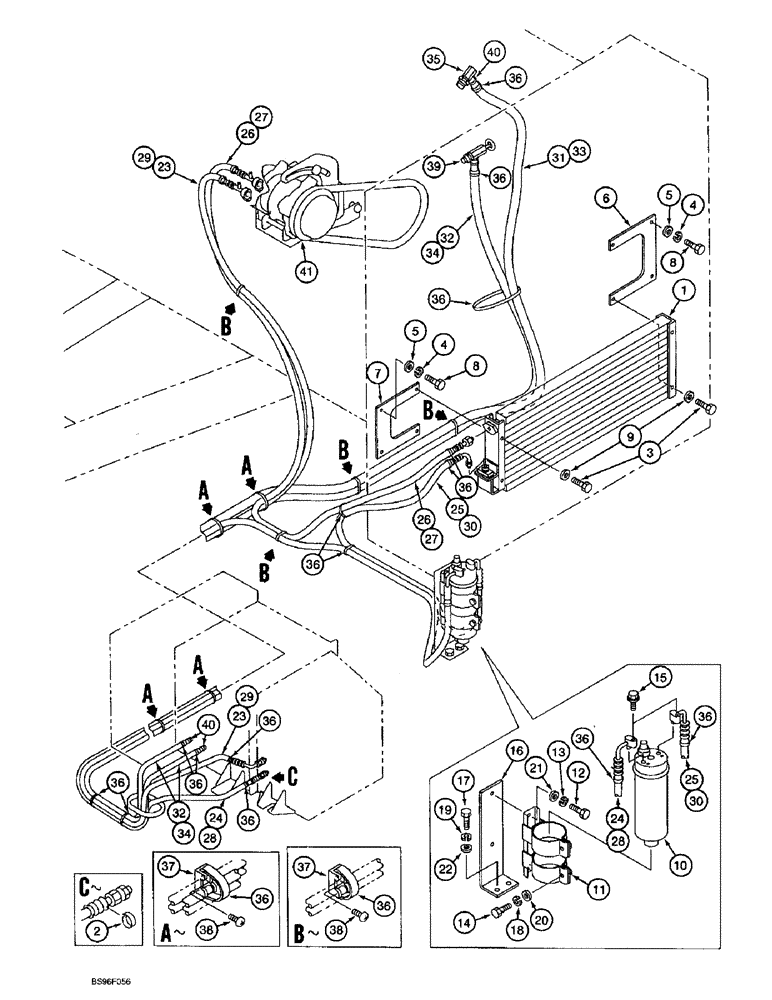

Запчасти Case 9060B (9-056) - AIR CONDITIONING WITH HEATER AND HOSES (09) - CHASSIS

1

159646A1

CONDENSER

- air conditioner

1шт.

2

157294A1

TAPE

- special, refrigerant, if used

1шт.

3

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

- hex, 8 - 1.25 x 55 mm, class 10.9

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

6

162461A1

BRACKET

- condenser

1шт.

7

162462A1

BRACKET

- condenser

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

9

153081A1

WASHER

- flat, special

4шт.

10

159634A1

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

11

159635A1

SUPPORT

BRACKET - receiver-drier

1шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

14

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

15

162043A1

BOLT,Spcl, M6

BOLT - special

2шт.

16

162464A1

BRACKET

- receiver-drier holder

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

19

892-11010

LOCK WASHER,M10

2шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12.5 x 1.6 mm

2шт.

23

162466A1

HOSE ASSY.

HOSE - 850 mm (33-1/2 inch) long

1шт.

24

159642A1

HOSE,3850.00 mm

1шт.

25

163801A1

A/C HOSE,850.00 mm

- 850.00 mm

1шт.

26

162592A1

HOSE ASSY.

HOSE - 2500 mm (98-1/2 inch) long

1шт.

27

158066A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 2300 mm (90-1/2 inch) long

1шт.

28

151563A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 3800 mm (149-5/8 inch) long

1шт.

29

157926A1

PLASTIC-RUBBER TUBE,22 mm ID, 27 mm OD, 4100 mm Length

SLEEVE - corrugated, 4100 mm (161-7/16 inch) long

1шт.

30

157767A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 600 mm (23-5/8 inch) long

1шт.

31

151553A1

TUBE

SLEEVE - corrugated, 4800 mm (189 inch) long

1шт.

32

151548A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 4300 mm (169-9/32 inch) long

1шт.

33

152639A1

HOSE,13.00 mm ID x 5000.00 mm

- From heater back to engine 13.00 mm ID x 5000.00 mm

1шт.

34

150813A1

HOSE

- 4500 mm (177-1/4 inch) long

1шт.

35

163802A1

ADAPTER

- straight

1шт.

36

170308A1

BAND

STRAP - tie

24шт.

37

150860A1

COLLAR

BRACKET - support

8шт.

38

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

8шт.

39

152725A1

VALVE

- shutoff

1шт.

40

150384A1

COLLAR

CLAMP - adjustable

4шт.

41

REF

INSTRUCTION

COMPRESSOR - air conditioner, see page 2-61

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.
