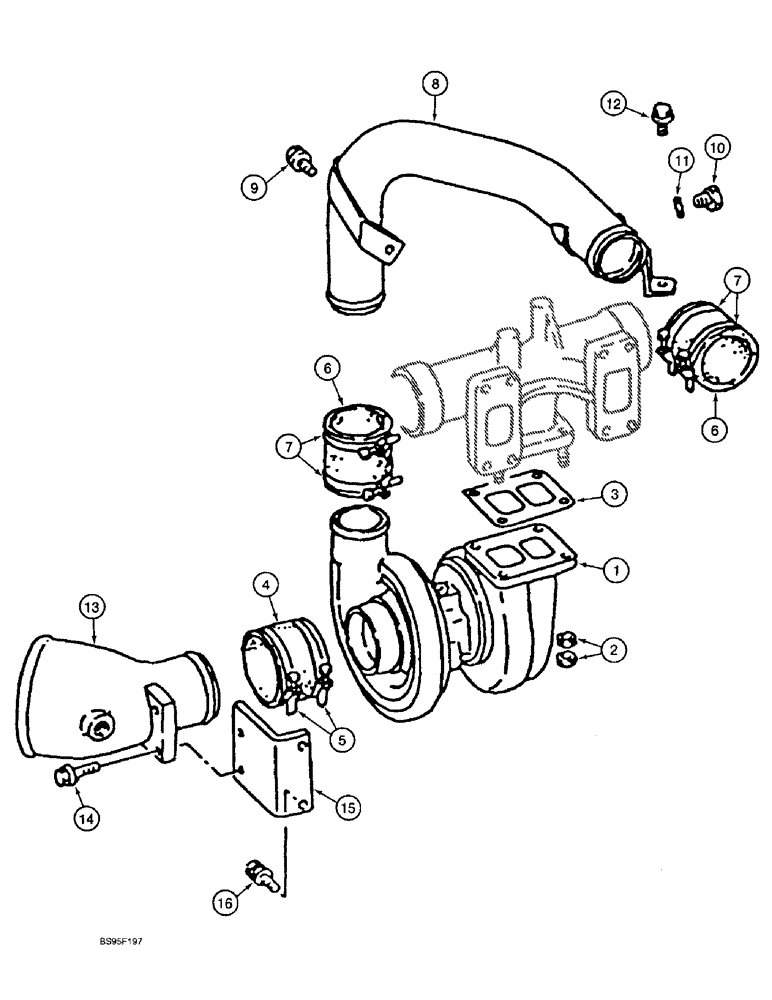

Запчасти Case 9060B (2-20) - TURBOCHARGER SYSTEM, 6D22-TC ENGINE (02) - ENGINE

1

240308A1

ASSEMBLY

TURBOCHARGER ASSEMBLY - engine, parts list Figure 2-24

1шт.

2

134957A1

NUT

- hex, 10 mm, turbocharger mounting

8шт.

3

134960A1

GASKET

- turbocharger

1шт.

4

240314A1

HOSE

- 70 mm (2-3/4 inch) long

1шт.

5

134980A1

CLAMP

- special, 76 mm diameter

2шт.

6

134958A1

HOSE

- 65 mm (2-1/2 inch) long

2шт.

7

134980A1

CLAMP

- special, 76 mm diameter

4шт.

8

240312A1

PIPE

- air, turbo to inlet manifold

1шт.

9

240316A1

BOLT

- hex flange, 10 x 20 mm

1шт.

10

132317A1

PLUG

- 10 mm

1шт.

11

132342A1

GASKET

- 10 mm

2шт.

12

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm

1шт.

13

240310A1

COUPLING

- special, inlet manifold

1шт.

14

240318A1

BOLT

- hex flange, 10 x 30 mm

2шт.

15

240309A1

BRACKET

- pipe

1шт.

16

240317A1

BOLT

- with captive washer, 10 x 38 mm

2шт.
