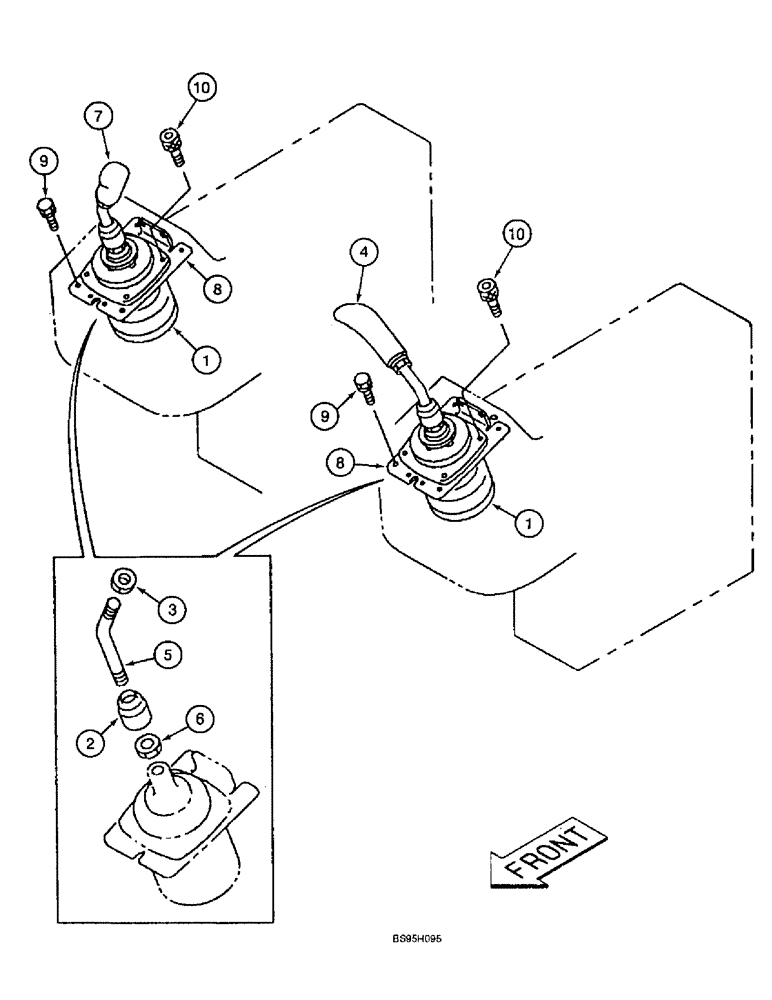

Запчасти Case 9060B (9-038) - REMOTE CONTROL VALVE ASSEMBLY MOUNTING (09) - CHASSIS

1

162097A1

VALVE

ASSEMBLY - remote control, parts list Figure 8-104

2шт.

2

151302A1

CAP

BOOT - dust protection

2шт.

3

159487A1

NUT

- hex, special

2шт.

4

159270A1

KNOB

- left-hand, with horn button

1шт.

5

159269A1

LEVER

- control

2шт.

6

151154A1

JAM NUT

- hex

2шт.

7

162363A1

KNOB

- right-hand, with one-touch idle

1шт.

8

159268A1

SUPPORT

BRACKET - mounting

2шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

4шт.

10

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 25 mm, class 12.9

8шт.
