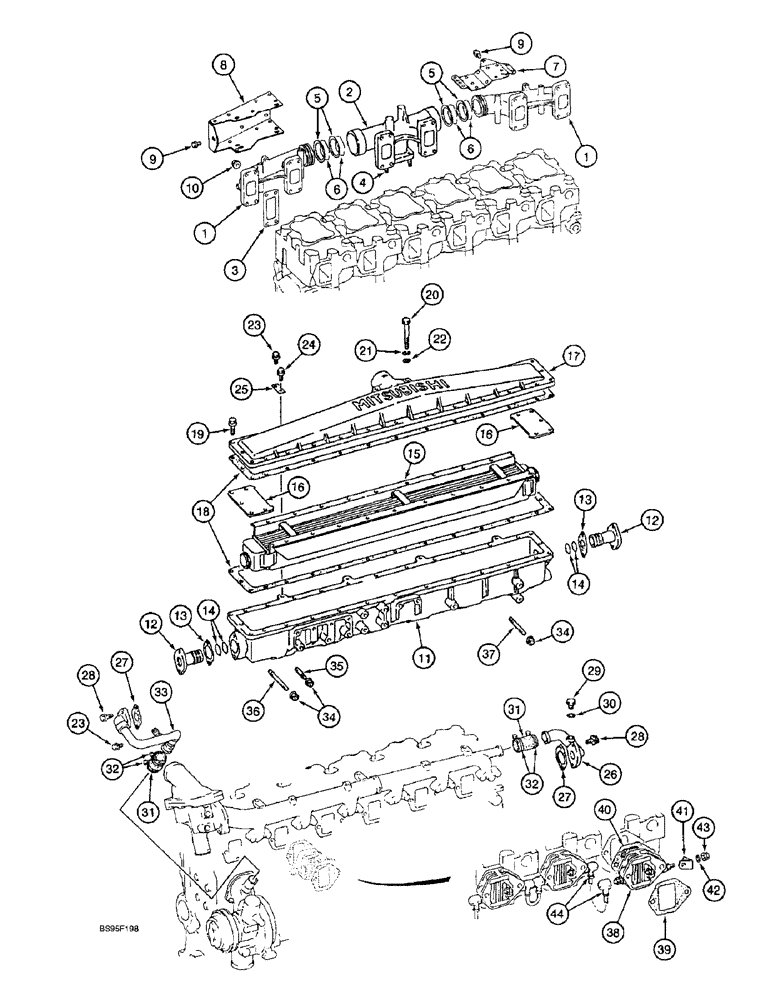

Запчасти Case 9060B (2-18) - EXHAUST MANIFOLDS & INTERCOOLR, 6D22-TC ENGINE (02) - ENGINE

1

134860A1

MANIFOLD

- exhaust, outer

2шт.

2

240307A1

MANIFOLD

- exhaust, center

1шт.

3

134861A1

MANIFOLD GASKET

- manifold

6шт.

4

134865A1

STUD

- special, 10 x 30 mm, center manifold

4шт.

5

134866A1

SEALING RING

RING - seal, thick

4шт.

6

134867A1

SEALING RING

RING - seal, thin

4шт.

7

134862A1

INSULATOR

SHIELD - heat

1шт.

8

134863A1

INSULATOR

SHIELD - heat

1шт.

9

134869A1

BOLT,M8 x 12mm, w/ Captive Wshr

- with captive washer, 8 x 12 mm

8шт.

10

134868A1

FLANGE NUT

- hex flange, self-locking, 10 mm

24шт.

240293A1

COOLER

INTERCOOLER ASSEMBLY - engine, Includes: Ref. 11 - 22

1шт.

11

240298A1

MANIFOLD

- intercooler

1шт.

12

136073A1

PIPE

- air, special, coolant, intercooler

2шт.

13

136064A1

GASKET

- special, coolant pipe, intercooler

2шт.

14

240305A1

O-RING

- coolant pipe, intercooler

4шт.

15

240295A1

INTERCOOLER

- engine air

1шт.

16

240299A1

PLATE

- intercooler

2шт.

17

240294A1

COVER

- intercooler

1шт.

18

240297A1

GASKET

- intercooler

2шт.

19

134848A1

BOLT,Spcl, M8 x 35mm, w/ Captive Wshr

- special, with captive washer, 8 x 35 mm, intercooler

29шт.

20

134847A1

BOLT,Spcl, M8 x 115mm, w/ Captive Wshr

BOLT - special, with captive washer, 8 x 115 mm, intercooler

3шт.

20

240306A1

BOLT

- special, 8 x 85 mm, intercooler

2шт.

21

132502A1

WASHER

- lock, 8 mm, intercooler

1шт.

22

240304A1

WASHER

- flat, 8 mm, intercooler

2шт.

23

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm, intercooler

5шт.

24

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm, intercooler

4шт.

25

240302A1

STAY

HOLDER - special, intercooler

1шт.

26

240301A1

PIPE

- special, coolant, intercooler

1шт.

27

136065A1

GASKET

- special, coolant pipe, intercooler

2шт.

28

133294A1

BOLT,Hex Flg, M10 x 30mm

- hex flange, 10 x 30 mm, intercooler

4шт.

29

240303A1

PLUG

BOLT - special, 12 mm, intercooler

2шт.

30

240296A1

GASKET

- special, 12 mm, bolt, intercooler

1шт.

31

136069A1

HOSE

CONNECTOR - special, rubber, water pipe, intercooler

2шт.

32

136077A1

CLIP

CLAMP - adj, 40 mm dia, intercooler

4шт.

33

240300A1

PIPE

- special, coolant, intercooler

6шт.

34

134763A1

NUT

- hex flange, 10 mm, intercooler

12шт.

35

134842A1

STUD

- special, short, 10 x 60 mm, intercooler

12шт.

36

134845A1

STUD

- special, long, 10 x 125 mm, intercooler

5шт.

37

134843A1

STUD

- special, medium, 10 x 100 mm, intercooler

1шт.

38

136088A1

HEATER ASSY.

HEATER - air intake

6шт.

39

134855A1

MANIFOLD GASKET

- manifold

6шт.

40

136089A1

GASKET

- special, with net

6шт.

41

136090A1

PLATE

- ground strap

1шт.

42

133247A1

WASHER

- flat, 10 mm

1шт.

43

135033A1

FLANGE NUT

- hex flange, 6 mm

2шт.

44

136087A1

CABLE

- air intake heater

5шт.
