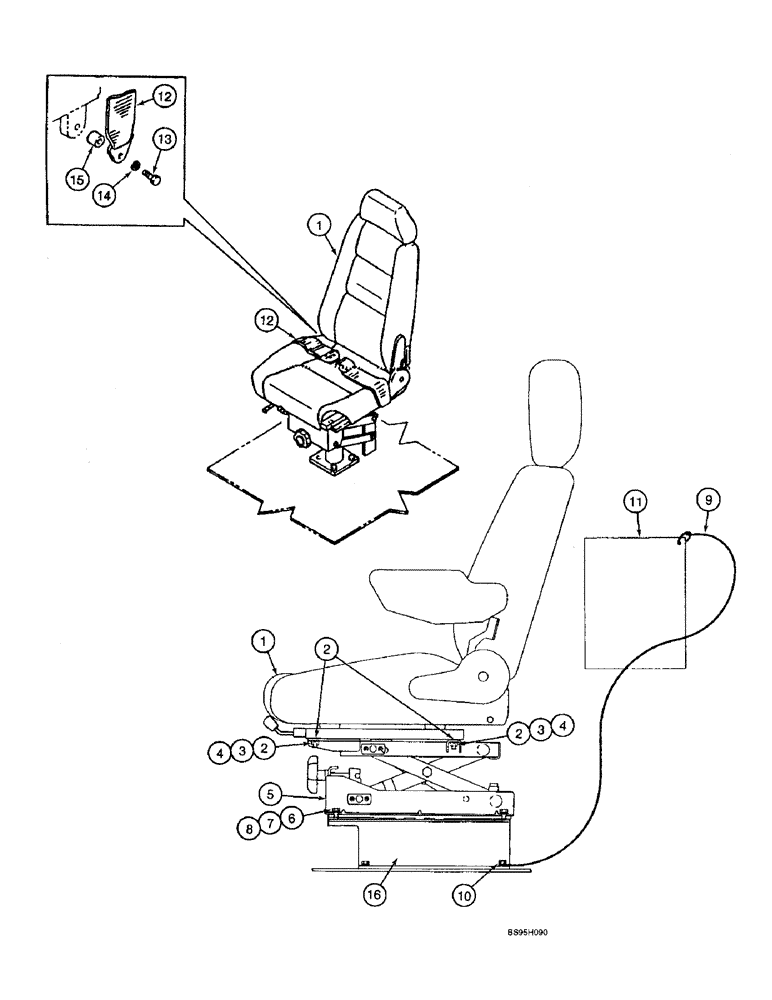

Запчасти Case 9060B (9-034) - SEAT, SEAT BELT AND OPERATORXD5 S MANUAL TETHER (09) - CHASSIS

1

159525A1

SEAT ASSY.

SEAT - operators, parts list Figure 9-35A

1шт.

2

159500A1

WASHER

- flat, special

8шт.

3

159499A1

SPRING WASHER

WASHER - lock, special

4шт.

4

157770A1

NUT

- hex, special

4шт.

5

159526A1

SUSPENSION

- seat base

1шт.

6

159534A1

BOLT,High Strength, Hex, M8 x 25mm

BOLT - special

4шт.

7

159500A1

WASHER

- flat, special

4шт.

8

159499A1

SPRING WASHER

WASHER - lock, special

4шт.

9

159895A1

CABLE,1500mm L

ROPE - steel wire (dog leash)

1шт.

10

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

1шт.

11

REF

INSTRUCTION

MANUAL - operator\xd5 s

1шт.

12

151520A1

SAFETY BELT

SAFETY BELT

1шт.

13

151523A1

BOLT,High Strength, Hex

BOLT - hex

2шт.

14

151526A1

SPRING WASHER

WASHER - lock

2шт.

15

152755A1

SPACER

- 13.7 ID x 21.7 OD x 10 mm

1шт.

16

REF

INSTRUCTION

LEVER AND SLIDE - seat, parts list Figure 9-36

1шт.
