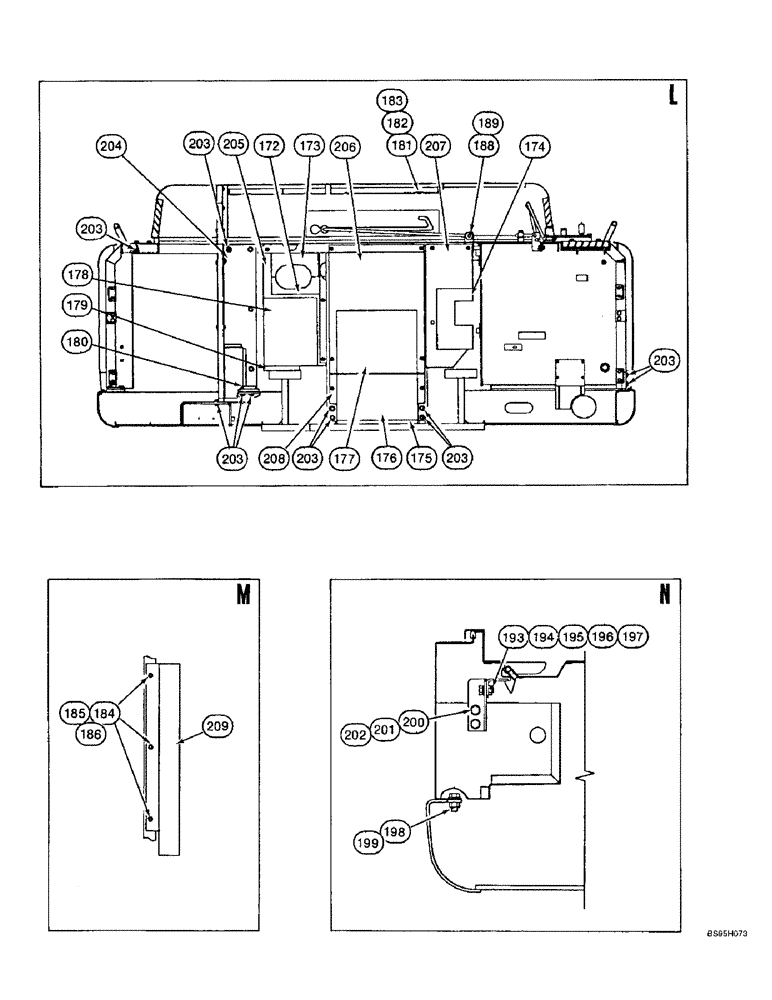

Запчасти Case 9060B (9-024) - UPPER STRUCTURE - CONTINUED (09) - CHASSIS

172

170412A1

SEAL

- rubber

1шт.

173

170503A1

SEAL

- rubber

1шт.

174

170496A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

175

164244A1

NOISE PROTECTION

INSULATION - acoustic, replaces 170497A1 insulation

1шт.

176

170498A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

177

164243A1

NOISE PROTECTION

INSULATION - acoustic, replaces 170498A1 insulation

1шт.

178

162390A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

179

162392A1

SEAL

- cushion

1шт.

180

170500A1

SEAL

STRIP - weather, rubber

1шт.

181

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

28шт.

182

163356A1

WASHER

RETAINER - insulation

28шт.

184

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

3шт.

185

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

188

170363A1

SHIM

- special

1шт.

189

153181A1

COTTER PIN

CLIP - hair pin

1шт.

193

170394A1

CATCH PLATE

PLATE - latch

1шт.

194

159115A1

ADJUSTING PLATE

SHIM - plate

1шт.

195

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

196

892-11010

LOCK WASHER,M10

2шт.

198

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

1шт.

199

150811A1

WASHER

- flat, special, 12 mm

1шт.

200

170393A1

BRACKET

- upper structure

1шт.

201

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

202

892-11010

LOCK WASHER,M10

2шт.

203

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

70шт.

204

170501A1

COVER

- center, upper structure

1шт.

205

170502A1

COVER

- center, upper structure

1шт.

206

170504A1

COVER

- upper structure

1шт.

207

170495A1

COVER

- upper structure

1шт.

208

170499A1

COVER

- center, upper structure

1шт.

209

170492A1

COVER

- upper structure

1шт.

197

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

183

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

28шт.

186

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.
