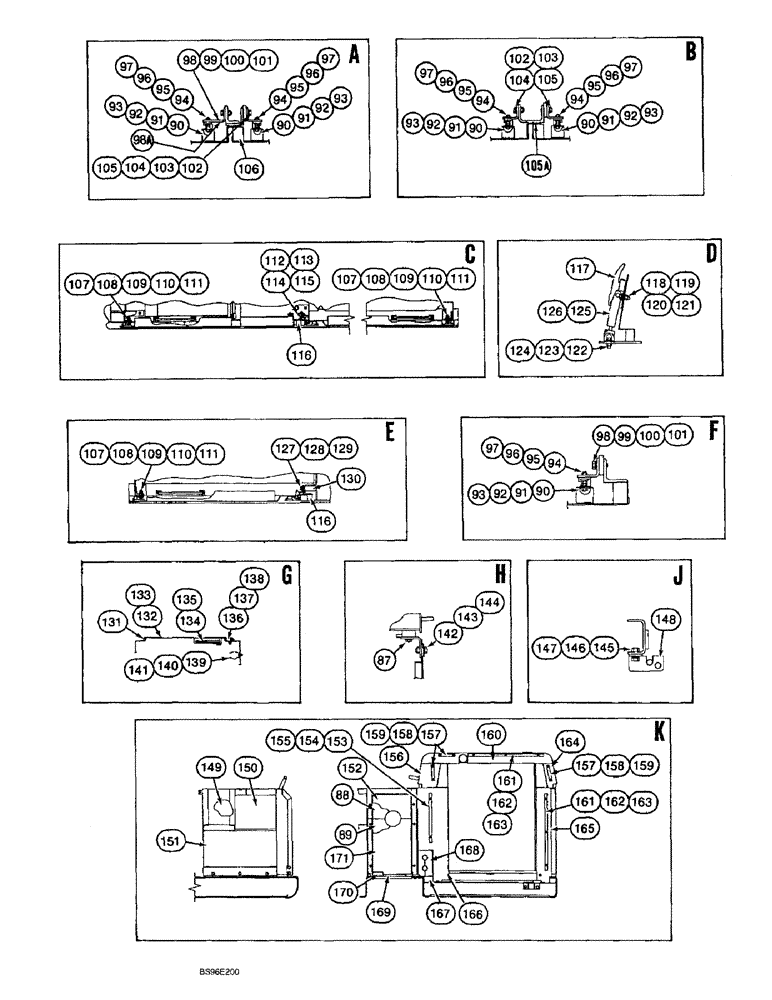

Запчасти Case 9060B (9-020) - UPPER STRUCTURE - CONTINUED (09) - CHASSIS

87

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

70шт.

88

170395A1

COVER

- upper structure

1шт.

89

170397A1

COVER

- upper structure

1шт.

90

159099A1

STOP

PER - door

6шт.

91

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

12шт.

92

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12.5 x 1.6 mm

12шт.

93

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

12шт.

94

159095A1

BRACKET

- door

4шт.

95

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

8шт.

96

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

8шт.

97

153360A1

WASHER

- flat, special

8шт.

98

170516A1

BRACKET

- upper structure, if used

1шт.

98a

170653A1

BRACKET - upper structure, if used

1шт.

100

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

102

170360A1

BRACKET

- upper structure

3шт.

104

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

105

170651A1

RUBBER BLOCK

CUSHION - rubber

1шт.

106

162450A1

SEAL

CUSHION - rubber

1шт.

107

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

108

152651A1

ADJUSTING PLATE

SHIM - 1.27 mm (.05 inch) thick

3шт.

109

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

6шт.

110

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

6шт.

111

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

6шт.

112

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

113

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

114

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

2шт.

115

151685A1

BLOCK

SHIM - plate

2шт.

116

170494A1

SEAL

STRIP - weather, rubber

2шт.

117

150785A1

STOP LOCK

LATCH - door assembly

2шт.

119

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

121

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

123

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

125

151361A1

HANDLE

LATCH - hood, left-hand

1шт.

126

151356A1

LOCK ASSY

LATCH - hood, right-hand

1шт.

127

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

128

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

129

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

4шт.

130

162376A1

SEAL

- cushion

1шт.

131

162454A1

SEAL

SEAL - rubber

1шт.

132

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - tool box

1шт.

133

150938A1

LOCK

LATCH - recessed, door

1шт.

134

170392A1

BRACE

STAY - upper structure

1шт.

135

153181A1

COTTER PIN

CLIP - hair pin

2шт.

136

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

137

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

138

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

4шт.

139

152772A1

HOLDER

- grease gun

2шт.

140

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

141

892-11010

LOCK WASHER,M10

4шт.

142

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

2шт.

143

150811A1

WASHER

- flat, special, 12 mm

2шт.

144

152651A1

ADJUSTING PLATE

SHIM - 1.27 mm (.05 inch) thick

2шт.

145

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

146

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

147

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

4шт.

148

170346A1

BRACKET

- upper structure

2шт.

149

170415A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

150

163341A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

151

170652A1

NOISE PROTECTION

INSULATION - acoustic, replaces 170416A1 insulation

1шт.

152

170396A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

153

170403A1

RETAINER

- seal

1шт.

154

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

- hex, 8 - 1.25 x 45 mm, class 10.9

2шт.

156

170405A1

SEAL

- special

1шт.

157

170406A1

RETAINER

- seal

3шт.

158

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

- hex, 8 - 1.25 x 45 mm, class 10.9

6шт.

160

170407A1

SEAL

STRIP - weather, rubber

1шт.

161

170408A1

RETAINER

- seal

2шт.

162

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

- hex, 8 - 1.25 x 45 mm, class 10.9

6шт.

164

170409A1

SEAL

STRIP - weather, rubber

1шт.

165

170410A1

SEAL

STRIP - weather, rubber

1шт.

166

170402A1

SEAL

STRIP - weather, rubber

1шт.

167

170401A1

SEAL

STRIP - weather, rubber

1шт.

168

170400A1

SEAL

STRIP - weather, rubber

1шт.

169

170399A1

SEAL

STRIP - weather, rubber

1шт.

170

162401A1

SEAL

SEAL - cushion

1шт.

171

170398A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

99

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

4шт.

103

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

6шт.

118

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

4шт.

122

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

4шт.

101

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

105

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

6шт.

120

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

124

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

155

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

159

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

6шт.

163

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

5шт.
