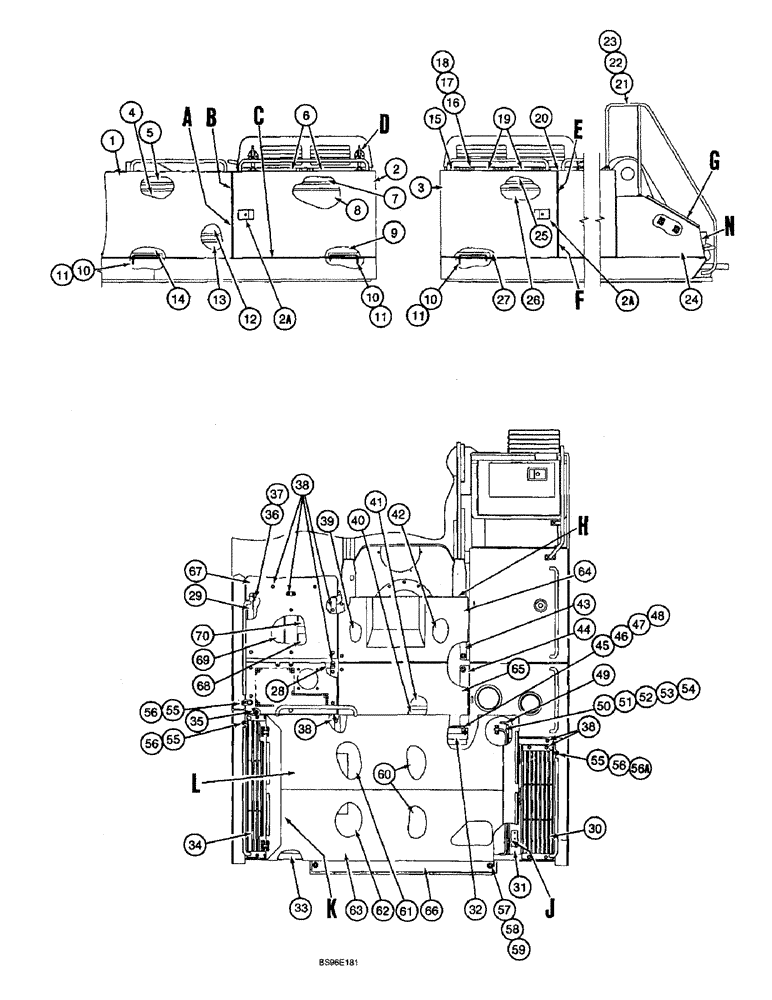

Запчасти Case 9060B (9-014) - UPPER STRUCTURE (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
170379A1
DOOR
- left hand, front
1шт.
2
170376A1
DOOR
- left hand, rear
1шт.
2a
162434A1
LOCK
- door
2шт.
3
170390A1
DOOR
- right hand, rear
1шт.
4
170381A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
5
170380A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
6
170508A1
SEAL
STRIP - weather, rubber
2шт.
7
170507A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
8
170375A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
9
170509A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
10
159101A1
STAY
HOLDER - door
3шт.
11
153181A1
COTTER PIN
CLIP - hair pin
3шт.
12
170377A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
13
162436A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
14
170378A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
15
151737A1
RUBBER BLOCK
PAD - cushion
1шт.
16
REF
INSTRUCTION
HINGE, side door
2шт.
17
627-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
- hex, full threads, 12 - 1.75 x 25 mm, class 10.9
9шт.
18
150811A1
WASHER
- flat, special, 12 mm
9шт.
19
170506A1
SEAL
STRIP - weather, rubber
2шт.
20
170386A1
SEAL
STRIP - weather, rubber
1шт.
21
170384A1
GRAB RAIL
RAIL - hand, grab
1шт.
22
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
- hex, full threads, 12 - 1.75 x 30 mm, class 10.9
5шт.
23
150811A1
WASHER
- flat, special, 12 mm
5шт.
24
170385A1
BOX
- tool
1шт.
25
170387A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
26
170389A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
27
170388A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
28
170348A1
FRAME
- upper structure
1шт.
29
170347A1
FRAME
- upper structure
1шт.
30
170372A1
FRAME
- upper structure
1шт.
31
170357A1
FRAME
- upper structure
1шт.
32
170352A1
FRAME
- upper structure
1шт.
33
170350A1
FRAME
- upper structure
1шт.
34
170364A1
FRAME
- upper structure
1шт.
35
170349A1
FRAME
- upper structure
1шт.
36
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
- hex, full threads, 12 - 1.75 x 30 mm, class 10.9
1шт.
37
150811A1
WASHER
- flat, special, 12 mm
1шт.
38
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
- special
70шт.
39
170366A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
40
170371A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
41
170370A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
42
170367A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
43
170355A1
BRACKET
- upper structure
1шт.
44
170354A1
BRACKET
- upper structure
1шт.
45
170353A1
BRACE
STAY - upper structure
1шт.
46
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
- hex, full threads, 8 - 1.25 x 20 mm, class 10.9
14шт.
48
163356A1
WASHER
RETAINER - insulation
14шт.
49
170356A1
BAR
- torsion
1шт.
50
170358A1
BAR
- torsion
1шт.
51
170344A1
BRACKET
- upper structure
1шт.
52
627-12045
BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd
- hex, full threads, 12 - 1.75 x 45 mm, class 10.9
2шт.
53
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
2шт.
55
159091A1
STOP
PER - rubber
3шт.
57
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
- hex, full threads, 12 - 1.75 x 35 mm, class 10.9
2шт.
58
150811A1
WASHER
- flat, special, 12 mm
2шт.
59
162409A1
WASHER
- flat, special
2шт.
60
170374A1
NOISE PROTECTION
INSULATION - acoustic
2шт.
61
170488A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
62
170489A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
63
170373A1
ENGINE HOOD
HOOD - engine access
1шт.
64
170368A1
COVER
- top
1шт.
65
170369A1
COVER
- top
1шт.
66
170351A1
COVER
- upper structure
1шт.
67
170365A1
COVER
- upper structure
1шт.
68
163340A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
69
163338A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
70
163339A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
56
829-1410
NUT,M10 x 1.5, Cl 10.9
3шт.
47
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm
14шт.
54
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
- flat, 13.5 x 24 x 2.5 mm
2шт.
56a
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
- flat, 11 x 21 x 2 mm
3шт.
Выбрано товаров: 72
