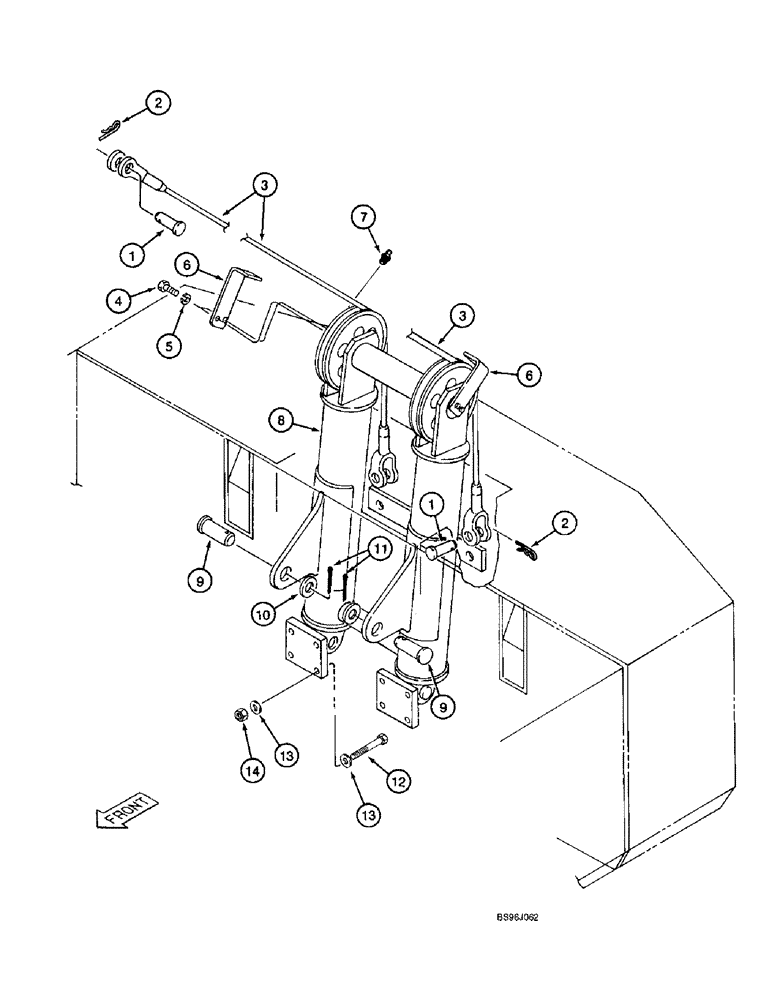

Запчасти Case 9060B (9-012) - COUNTERWEIGHT REMOVAL SYSTEM (09) - CHASSIS

1

170215A1

PIN

- headed, special

4шт.

2

150085A1

COTTER PIN

- clip

4шт.

3

170149A1

CABLE

- counterweight removal

2шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

5

892-11010

LOCK WASHER,M10

4шт.

6

170148A1

GUARD

PLATE - special, pulley guard

2шт.

7

153630A1

LUBE NIPPLE

FITTING - grease, straight

2шт.

8

170150A1

STRUT

- mast, counterweight

1шт.

9

170214A1

PIN

- headed, special

2шт.

10

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

2шт.

11

733-10090

COTTER PIN,M10 x 90

PIN - cotter, 10 x 90 mm

2шт.

12

827-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

- hex, 20 - 2.5 x 110 mm, class 10.9

8шт.

13

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

16шт.

14

170213A1

NUT

- lock, special

8шт.
