Запчасти Case 9060B (9-008) - TURNTABLE ACCESS COVERS (09) - CHASSIS

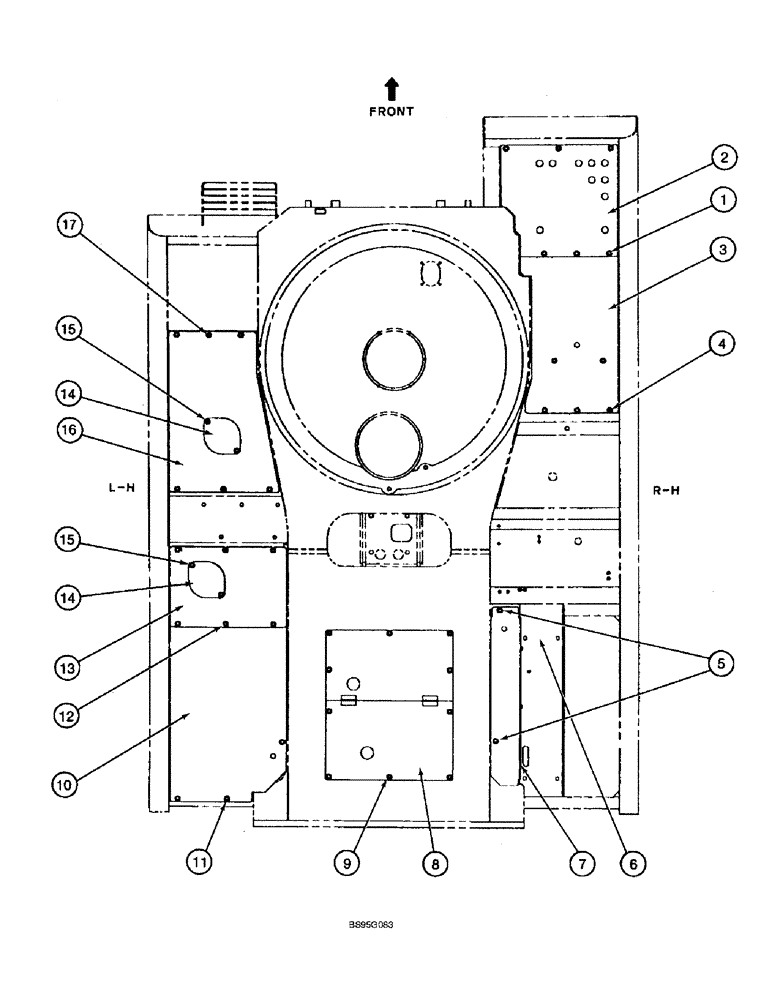

Схема запчастей Case 9060B - (9-008) - TURNTABLE ACCESS COVERS (09) - CHASSIS
4
14
5
13
9
17
7
1
12
15
8
6
3
10
15
2
11
14
16

Артикул

Название

Примечание

Количество

1

162278A1

BOLT

BOLT - flange head, special

6шт.

2

170112A1

SHEET

COVER - access, right-hand front (6 bolts)

1шт.

3

170113A1

SHEET

COVER - access, right-hand center (5 bolts)

1шт.

4

162278A1

BOLT

BOLT - flange head, special

5шт.

5

162278A1

BOLT

BOLT - flange head, special

2шт.

6

170114A1

SHEET

COVER - access, right-hand rear (5 bolts)

1шт.

7

162278A1

BOLT

BOLT - flange head, special

3шт.

8

170115A1

COVER

- access, center rear (10 bolts)

1шт.

9

162278A1

BOLT

BOLT - flange head, special

10шт.

10

170116A1

SHEET

COVER - access, left-hand rear (3 bolts)

1шт.

11

162278A1

BOLT

BOLT - flange head, special

3шт.

12

162278A1

BOLT

BOLT - flange head, special

6шт.

13

170117A1

COVER

- access, left-hand middle (6 bolts)

1шт.

14

170118A1

SHEET

COVER - access (2 bolts)

2шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

16

170119A1

COVER

- access, left-hand front (6 bolts)

1шт.

17

162278A1

BOLT

BOLT - flange head, special

6шт.

Выбрано товаров: 17
