Запчасти Case 9060B (9-004) - TURNTABLE BEARING LUBRICATION LINES (09) - CHASSIS

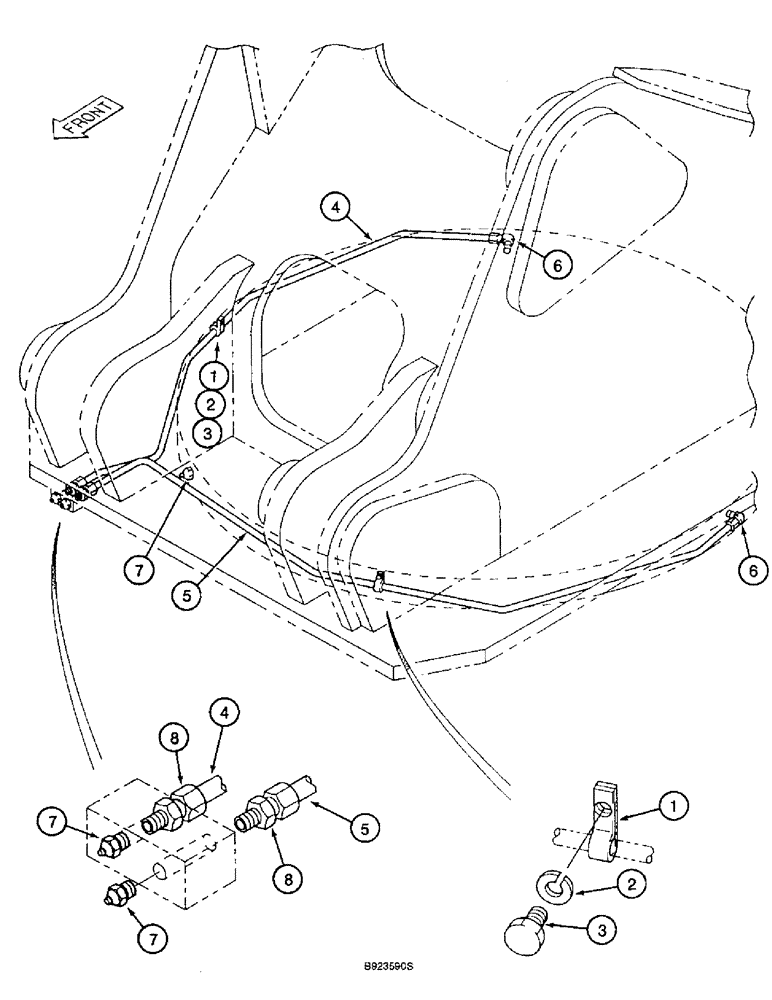

Схема запчастей Case 9060B - (9-004) - TURNTABLE BEARING LUBRICATION LINES (09) - CHASSIS
1
3
6
7
4
1
8
8
7
4
2
5
6
2
5
7
3

Артикул

Название

Примечание

Количество

1

150566A1

CLAMP

- P-type

2шт.

2

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

3

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

4

170584A1

TUBE

- lubrication, turntable, right-hand side, replaces 151257A1 tube

1шт.

5

170583A1

TUBE

- lubrication, turntable, left-hand side, replaces 151254A1 tube

1шт.

6

152627A1

ELBOW

- 90 degree, special

2шт.

7

153630A1

LUBE NIPPLE

FITTING - grease, straight

3шт.

8

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special, lubrication line

2шт.

Выбрано товаров: 8
