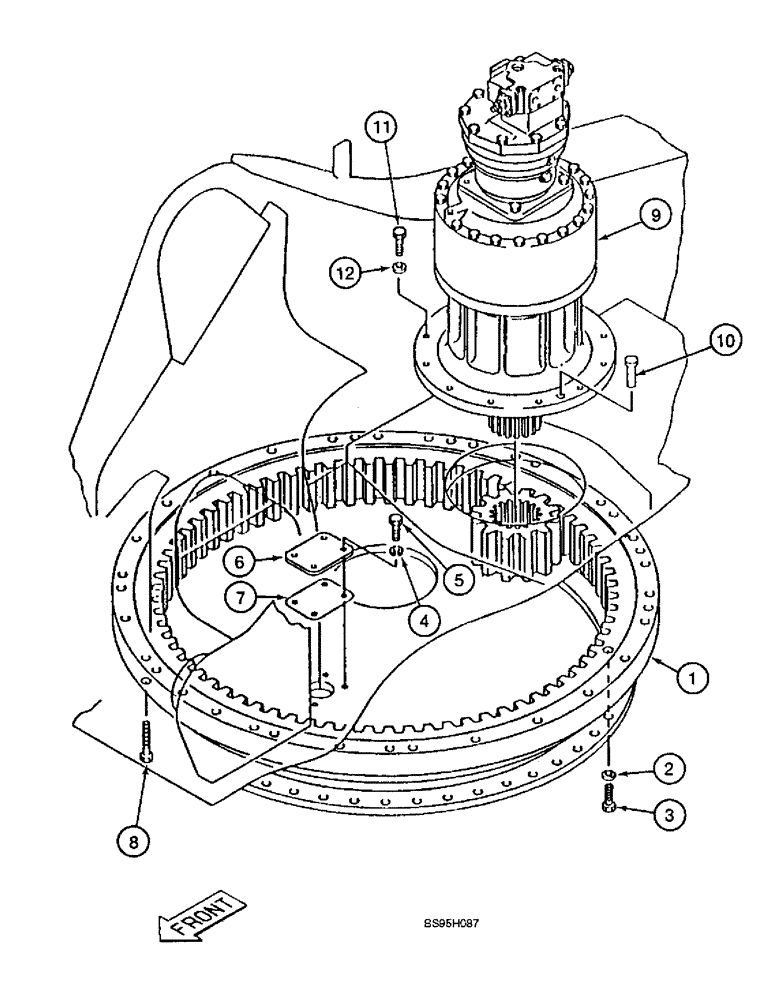

Запчасти Case 9060B (9-002) - TURNTABLE BEARING AND SWING MOTOR MOUNTING (09) - CHASSIS

1

170136A1

SLEWING RING

BEARING - turntable

1шт.

2

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

88шт.

3

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

46шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

4шт.

6

151068A1

LID

COVER - access

1шт.

7

151070A1

GASKET

- access cover

1шт.

8

828-24150

BOLT,Hex, M24 x 3 x 150mm, Cl 10.9

- hex, 24 - 3.0 x 150 mm, class 10.9

42шт.

9

164158A1

MOTO-REDUCTION GEAR

DRIVE ASSEMBLY - swing, parts list page 8-151

1шт.

10

150317A1

HEADED PIN,24mm OD x 90mm L

PIN - headed

1шт.

11

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

16шт.

12

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

16шт.

for lip seal for turntable order, 171744A1 which is a 30 ft long piece of lipped ring seal. One 30 ft length will provide enough seal to replace both the upper and lower seals for the turntable bearing on the 9060B. djo 5/13/98

1шт.
