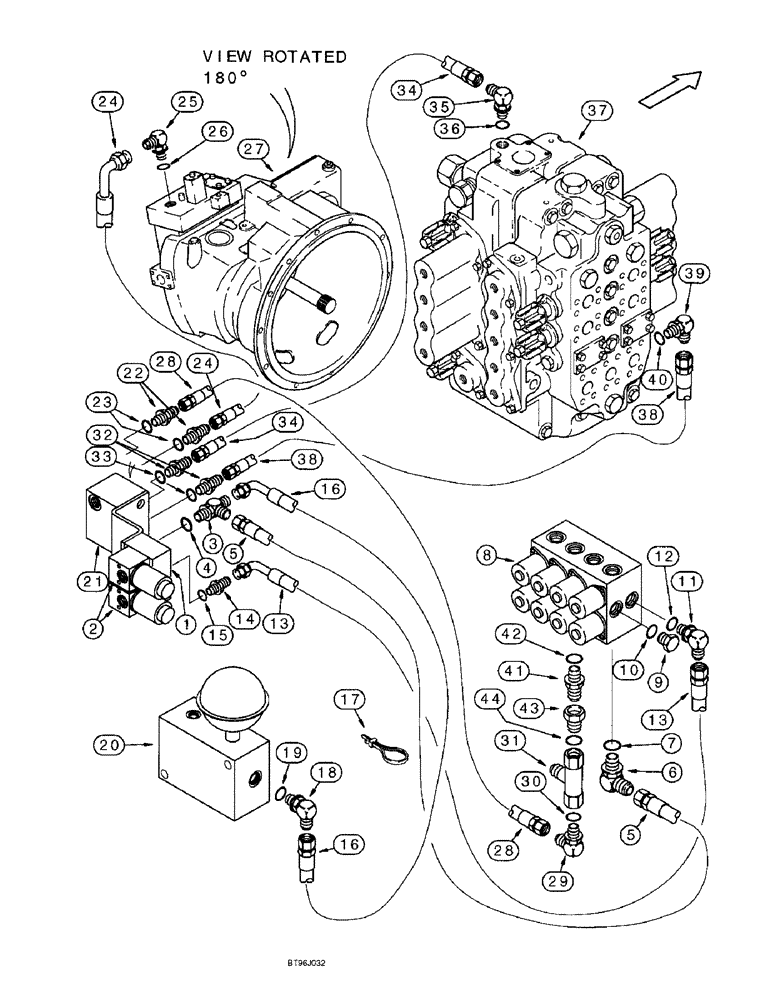

Запчасти Case 9060B (8-200) - COUNTERWEIGHT REMOVAL HYDRAULICS, PILOT PRESSURE AND RETURN (08) - HYDRAULICS

1

170789A1

MANIFOLD

- hydraulic

1шт.

2

163811A1

VALVE

ASSEMBLY - solenoid

2шт.

3

162827A1

TEE

- special, Includes: Ref. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

5

162015A1

HOSE ASSY.

HOSE - 750 mm (29-1/2 inch) long, manifold port \xd2 P1\xd3 to solenoid valve port \xd2 P\xd3

1шт.

6

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree

1шт.

7

154475A1

O-RING

- elbow

1шт.

8

161310A1

VALVE

ASSEMBLY - solenoid, parts list Figure 8-132

1шт.

9

162557A1

PLUG

- special, Includes: Ref. 10

1шт.

10

154475A1

O-RING

- plug

1шт.

11

156554A1

ELBOW

- 90 degree, special

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

13

170752A1

HOSE ASSY.

HOSE - 750 mm (29-1/2 inch) long, manifold port \xd2 T1\xd3 to solenoid valve port \xd2 T1\xd3

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

159223A1

HOSE ASSY.

HOSE - 1100 mm (44-3/16 inch) long, manifold port \xd2 P1\xd3 to check valve port \xd2 B\xd3

1шт.

17

170308A1

BAND

STRAP - tie

1шт.

18

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree

1шт.

19

154475A1

O-RING

- elbow

1шт.

20

162568A1

VALVE

- check

1шт.

21

165187A1

VALVE

- shuttle

1шт.

22

153378A1

ADAPTER

- straight, Includes: Ref. 23

2шт.

23

154475A1

O-RING

- adapter

1шт.

24

161482A1

HOSE ASSY.

HOSE - 1500 mm (59-1/16 inch) long, shuttle valve port \xd2 S2\xd3 to hydraulic pump port \xd2 PZ1\xd3

1шт.

25

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

27

163568A1

PUMP

ASSEMBLY - hydraulic, parts list Figures 8-88 - 8-102

1шт.

28

161272A1

HOSE

- 650 mm (25-9/16 inch) long, Shuttle valve port \xd2 S1\xd3 to shuttle valve port \xd2 A2\xd3

1шт.

29

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

31

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

1шт.

32

153378A1

ADAPTER

- straight, Includes: Ref. 33

2шт.

33

154475A1

O-RING

- adapter

1шт.

34

157853A1

HOSE,6.3 mm ID x 2050.00 mm

- 2050 mm (80-11/16 inch) long, shuttle valve port \xd2 B1\xd3 to control valve port \xd2 4PS\xd3

1шт.

35

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

37

163643A1

VALVE

ASSEMBLY - control, parts list Figures 8-110 - 8-130

1шт.

38

152704A1

HOSE

- 1800 mm (71 inch) long, Shuttle valve port \xd2 B2\xd3 to control valve port \xd2 5PS\xd3

1шт.

39

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

41

162554A1

FITTING

ADAPTER - special, Includes: Ref. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

43

162654A1

HYD CONNECTOR

ADAPTER - straight, Includes: Ref. 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.
