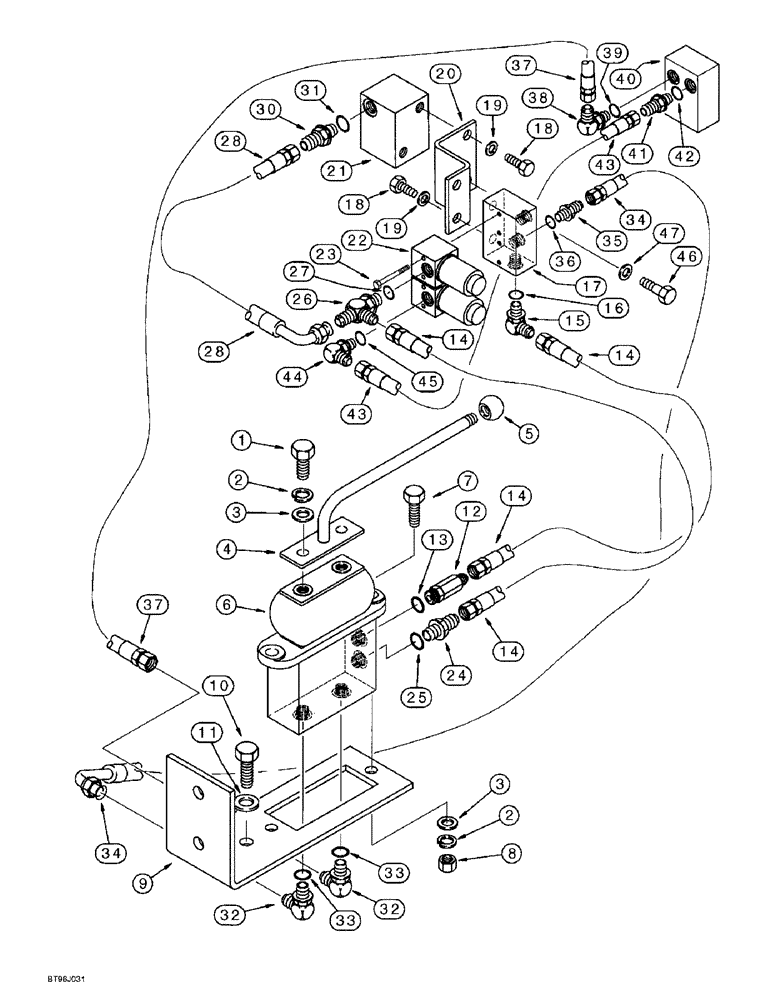

Запчасти Case 9060B (8-198) - COUNTERWEIGHT REMOVAL HYDRAULICS, CONTROL VALVE AND MOUNTING (08) - HYDRAULICS

1

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

2

892-11010

LOCK WASHER,M10

4шт.

4

170791A1

LEVER

- control

1шт.

5

151313A1

KNOB

- control lever

1шт.

6

152877A1

VALVE

ASSEMBLY - remote control, counterweight removal, parts list Figure 8-202

1шт.

9

170788A1

BRACKET

- mounting, 90 degree, remote control valve

1шт.

10

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

3шт.

11

150811A1

WASHER

- flat, special, 12 mm

3шт.

12

162554A1

FITTING

ADAPTER - special, Includes: Ref. 13

1шт.

13

154475A1

O-RING

- adapter

1шт.

14

158100A1

HOSE

- 950 mm (37-3/8 inch) long, remote control valve port \xd2 T\xd3 to manifold port \xd2 T2\xd3 and remote control valve port \xd2 P\xd3 to solenoid port \xd2 A1\xd3

2шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

17

170789A1

MANIFOLD

- hydraulic

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

19

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

20

170790A1

BRACKET

- mounting, 90 degree, manifold to shuttle valve

1шт.

21

165187A1

VALVE

- shuttle

1шт.

22

163811A1

VALVE

ASSEMBLY - solenoid, parts list Figure 8-200, Includes: Ref. 23

2шт.

23

861-6045

HEX SOC SCREW,M6 x 45mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 45 mm, class 12.9

2шт.

24

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

26

159497A1

TEE

- special, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

28

165147A1

HOSE ASSY.

HOSE - 300 mm (11-7/8 inch) long, solenoid port \xd2 A1\xd3 to shuttle valve port \xd2 A1\xd3

1шт.

30

153378A1

ADAPTER

- straight, Includes: Ref. 31

1шт.

31

154475A1

O-RING

- adapter

1шт.

32

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 33

2шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

34

161482A1

HOSE ASSY.

HOSE - 1500 mm (59-1/16 inch) long, control valve port \xd2 B\xd3 to manifold port \xd2 P2\xd3

1шт.

35

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

37

165149A1

HOSE ASSY.

HOSE - 5000 mm (196-7/8 inch) long, control valve port \xd2 A\xd3 to shuttle valve port \xd2 B2\xd3

1шт.

38

156554A1

ELBOW

- 90 degree, special

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

40

164109A1

VALVE

- shuttle

1шт.

41

153378A1

ADAPTER

- straight, Includes: Ref. 42

1шт.

42

154475A1

O-RING

- adapter

1шт.

43

163418A1

HYDRAULIC HOSE

- 4000 mm (157-1/2 inch) long, Shuttle valve port \xd2 B1\xd3 to solenoid port \xd2 A2\xd3

1шт.

44

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree

1шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

46

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

47

150811A1

WASHER

- flat, special, 12 mm

2шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.
