(2-14) - FAN DRIVE BEARING AND IDLER BEARING LUBE LINES, 6D22-TC

Запчасти Case 9060B (2-14) - FAN DRIVE BEARING AND IDLER BEARING LUBE LINES, 6D22-TC (02) - ENGINE

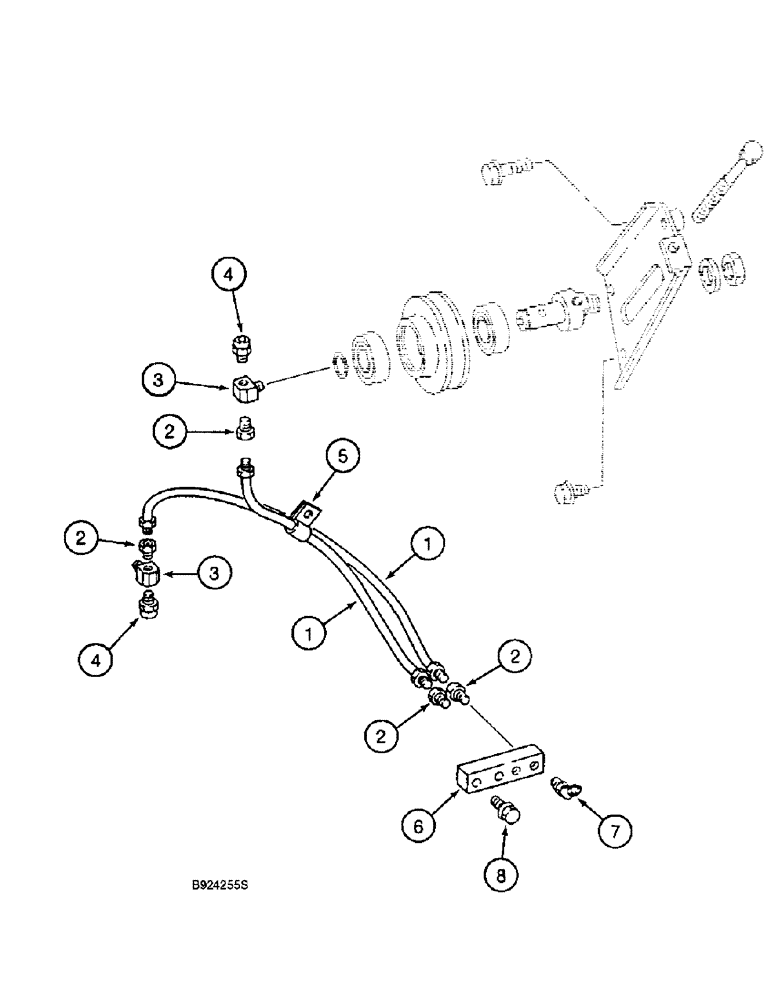

Схема запчастей Case 9060B - (2-14) - FAN DRIVE BEARING AND IDLER BEARING LUBE LINES, 6D22-TC (02) - ENGINE
7
1
3
3
8
1
4
2
2
2
5
4
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

134726A1

TUBE

- grease, 6 x 490 mm

2шт.

2

134817A1

FITTING

CONNECTOR - straight

4шт.

3

134816A1

FITTING

CONNECTOR - T-type

2шт.

4

134754A1

VALVE

- grease escape

2шт.

5

134764A1

CLIP

- tube

2шт.

6

134818A1

FITTING

MANIFOLD - grease fitting

1шт.

7

134794A1

NIPPLE, LUBE

FITTING - grease, 45 degrees

2шт.

8

134809A1

BOLT,Hex, M8 x 30mm

- hex flange, 8 x 30 mm

2шт.
