(8-194) - 164108A1 AND 164931A1 CUSHION VALVES, FOR STANDARD MODELS WITHOUT LOAD HOLDING OPTION

Запчасти Case 9060B (8-194) - 164108A1 AND 164931A1 CUSHION VALVES, FOR STANDARD MODELS WITHOUT LOAD HOLDING OPTION (08) - HYDRAULICS

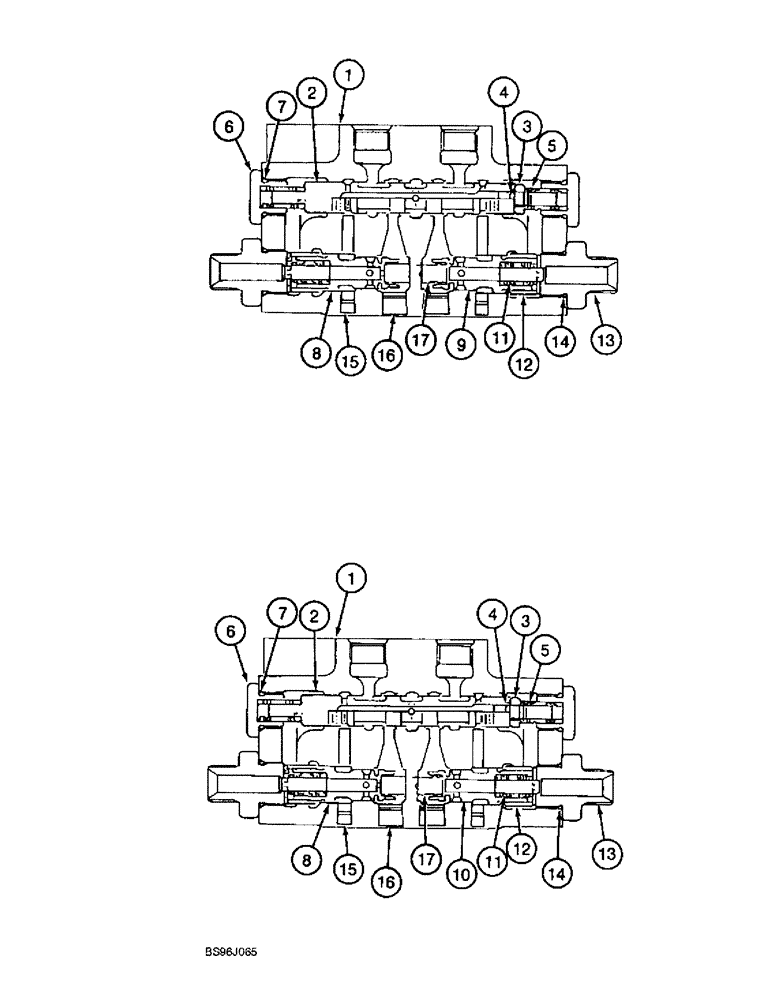

Схема запчастей Case 9060B - (8-194) - 164108A1 AND 164931A1 CUSHION VALVES, FOR STANDARD MODELS WITHOUT LOAD HOLDING OPTION (08) - HYDRAULICS
16
4
4
6
13
8
12
3
3
6
15
17
2
15
7
12
7
5
1
11
8
5
11
1
10
9
17
16
14
13
14
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

164108A1

VALVE

ASSEMBLY - cushion, replaced by 164931A1, Includes: Ref. 1 - 17

1шт.

164931A1

VALVE

ASSEMBLY - cushion, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

3

160072A1

SCREW

GUIDE - spring

2шт.

4

154446A1

O-RING

- spring guide

2шт.

5

160256A1

SPRING

- compression

4шт.

6

160073A1

PLUG

- valve cavity

4шт.

7

154474A1

O-RING

- plug

4шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

11

160258A1

SPRING

- compression

4шт.

12

160092A1

COLLAR

- spool

4шт.

13

160074A1

PLUG

ADAPTER - straight

4шт.

14

154486A1

O-RING

- adapter

4шт.

15

165001A1

PLUG

- port

11шт.

16

165002A1

PLUG

- port

8шт.

17

160257A1

SPRING

- compression

4шт.
