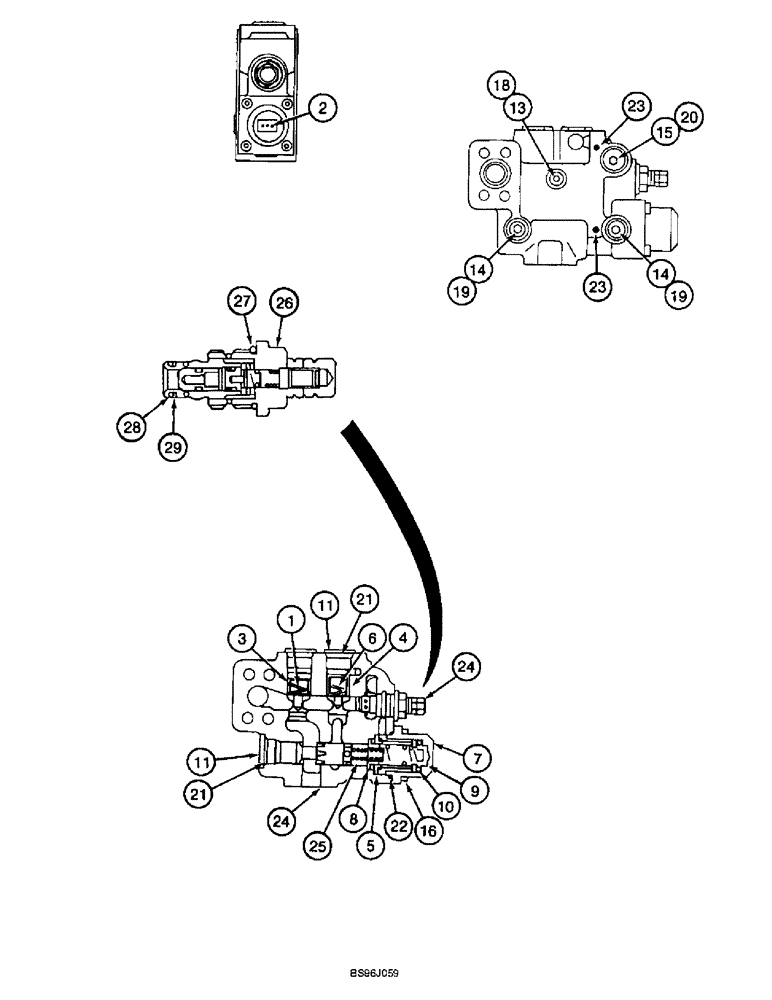

Запчасти Case 9060B (8-192) - LOAD HOLDING OPTION, BOOM CYLINDER HOLDING VALVE ASSEMBLY (08) - HYDRAULICS

164963A1

SAFETY VALVE

VALVE ASSEMBLY - boom cylinder holding, Includes: Ref. 1 - 29

1шт.

1

165003A1

SPRING

- plunger return

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - valve

1шт.

3

165004A1

PLUNGER

- valve

1шт.

4

165005A1

PLUNGER

- valve

1шт.

5

165006A1

SPACER

- spool return spring

1шт.

6

165007A1

SPRING

- plunger return

1шт.

7

165008A1

COVER

- spool end

1шт.

8

165009A1

HOLDER

GUIDE - spring

1шт.

9

165010A1

SPRING

- spool return, inner

1шт.

10

165011A1

SPRING

- spool return, outer

1шт.

11

155509A1

PLUG

- port

3шт.

13

160083A1

PLUG

- port

1шт.

14

155515A1

PLUG

- port

2шт.

15

163874A1

PLUG

- port

1шт.

16

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

4шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

19

154475A1

O-RING

- plug

2шт.

20

154487A1

O-RING

- plug

1шт.

21

154523A1

O-RING

- spool end port

3шт.

22

154625A1

O-RING

- roller shaft

1шт.

23

163873A1

PLUG

- port

6шт.

165012A1

VALVE, CONTROL

BODY AND SPOOL ASSEMBLY - boom holding valve, Includes: Ref. 24 & 25

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

164997A1

VALVE

ASSEMBLY - relief, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, less external seals

1шт.

27

154515A1

O-RING

- relief valve outer seal

1шт.

28

154475A1

O-RING

- relief valve inner seal

1шт.

29

153961A1

BACK-UP RING

RING - backup, relief valve inner seal

1шт.
